V-Nozzles
Owner's Manual
Sonny's Enterprises, Inc.
5605 Hiatus Road
Tamarac, Florida 33321

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Nozzles and is the answer not in the manual?

Questions and answers

Related Manuals for Sonny's V-Nozzles

Summary of Contents for Sonny's V-Nozzles

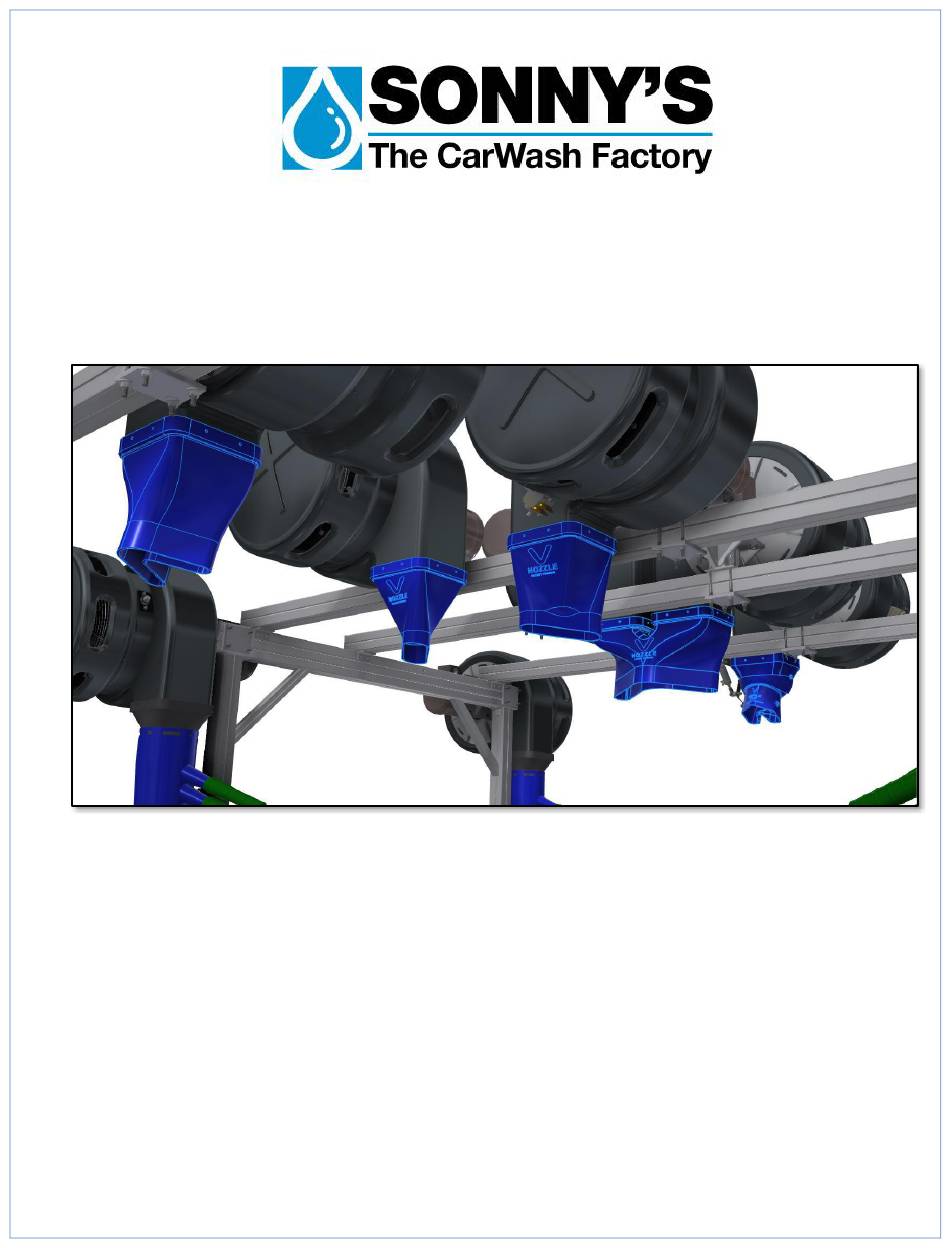

  • Page 1 V-Nozzles Owner’s Manual Sonny's Enterprises, Inc. 5605 Hiatus Road Tamarac, Florida 33321...

  • Page 2: Table Of Contents

    V-Nozzles – Owner’s Manual Table of Contents Table of Contents ........................2 SAFETY REQUIREMENTS......................3 INTRODUCTION .......................... 5 Product Features ........................6 V-Nozzles............................. 7 INSTALLATION ......................... 10 Blower and V-Nozzle Configuration in Tunnel ................. 11 Single V-Nozzle – Mounting Specifications ................13 Half V-Nozzle –...

  • Page 3: Safety Requirements

    V-Nozzles – Owner’s Manual SAFETY REQUIREMENTS **WARNING** 1. All employees must be thoroughly trained in safe operation and standard maintenance practices. All employees must review this entire manual monthly. 2. Do not enter the wash tunnel when the equipment is operating. Death or dismemberment may occur.
  • Page 4 V-Nozzles – Owner’s Manual 12. Do not operate any piece of equipment that requires safety covers with those covers removed or improperly installed. Do not operate any piece of equipment if any component of that piece is suspected to be defective or malfunctioning.

  • Page 5: Introduction

    V-Nozzles – Owner’s Manual INTRODUCTION This Manual contains information that is vital to the successful installation, operation and maintenance of your Sonny’s vehicle washing equipment. Please read, and understand, the full contents of this manual before installation and operation of the equipment.

  • Page 6: Product Features

    V-Nozzles – Owner’s Manual Product Features ➢ Sonny’s V-Nozzles are designed to maximize the flow of water away from the car in a consistent direction. • The Single V-Nozzle starts the process of pushing the water from the center out and towards the back of the car.

  • Page 7: V-Nozzles

    V-Nozzles – Owner’s Manual V-Nozzles There are five different models of V-Nozzles: ➢ Single V Nozzle - #20018897 (Black), #20018898 (Blue), #20018899 (Red) ➢ Double V-Nozzle - #20018894 (Black), #20018895 (Blue), #20018896 (Red) Focuses one clockwise and counterclockwise blower into one v-channel, for extra drying power (see the illustration in the Double V-Nozzle Setup section on page 15).
  • Page 8 V-Nozzles – Owner’s Manual ➢ Flip V-Nozzle - # 20018913 (Black), #20018914 (Blue), #20018915 (Red) Nozzle pivots to dry both the front and back of cars. The pivot action is controlled by an air actuator connected to your tunnel’s pneumatic controls.
  • Page 9 V-Nozzles – Owner’s Manual ➢ Half V-Nozzle – Passenger Side - #20018836 (Black), #20018837 (Blue), #20018838 (Red) ➢ Bolt Kit – #10002227 - Each kit contains 8 bolts, 8 nuts and 16 washers. One kit needed per V-Nozzle (Double-V-Nozzle requires 2 bolt kits for each).

  • Page 10: Installation

    If you are installing a V-Nozzle onto an existing blower (Sonny’s Blower, with one-piece molded housing) you can remove the old nozzle off the housing and install the new V-Nozzle in its place. The V-Nozzles are designed to fit on the blower housing. © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or...

  • Page 11: Blower And V-Nozzle Configuration In Tunnel

    V-Nozzles – Owner’s Manual Blower and V-Nozzle Configuration in Tunnel The blower and V-Nozzle configuration in your tunnel should be setup to optimize the different types of V-Nozzles. © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 11 of 21 duplicated without prior written consent.
  • Page 12 2. The Half V-Nozzles are two separate nozzles, one on the driver side of the vehicle and one on the passenger side. When combined, they increase the width of coverage, completely covering the width of the car while maintaining the motion of the water droplets in a diagonal direction.

  • Page 13: Single V-Nozzle - Mounting Specifications

    V-Nozzles – Owner’s Manual Single V-Nozzle – Mounting Specifications © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 13 of 21 duplicated without prior written consent. Content, prices and availability subject to change without notice.

  • Page 14: Half V-Nozzle - Mounting Specifications

    V-Nozzles – Owner’s Manual Half V-Nozzle – Mounting Specifications © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 14 of 21 duplicated without prior written consent. Content, prices and availability subject to change without notice.
  • Page 15 V-Nozzles – Owner’s Manual Double V-Nozzle (Continued) © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 15 of 21 duplicated without prior written consent. Content, prices and availability subject to change without notice.

  • Page 16: Double V-Nozzle - Mounting Specifications

    V-Nozzles – Owner’s Manual Double V-Nozzle – Mounting Specifications The Double V-Nozzle attaches to two blowers, as in the following illustration. The motor for the blower on the left (Driver Side) runs clockwise, while the motor for the blower on the right (Passenger Side) runs counterclockwise.

  • Page 17: Flip V-Nozzle - Mounting Specifications

    V-Nozzles – Owner’s Manual Flip V-Nozzle – Mounting Specifications © SONNY’S The CarWash Factory SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 17 of 21 duplicated without prior written consent. Content, prices and availability subject to change without notice.
  • Page 18 V-Nozzles – Owner’s Manual Flip V-Nozzle (Continued) After you finish attaching a Flip V-Nozzle to the blower, attach the flip nozzle’s air actuator to your Solenoid valve system. The Pressure Driver for the Flip V-Nozzle should be set to 20-30 PSI. Use flow control regulator valves on the air cylinders to control the flip speed.

  • Page 19: Do's And Don'ts

    ➢ Ensure the V-Nozzles are mounted securely to the blower housings. DON’T ➢ Don’t mount the V-Nozzles pointing towards the tunnel exit or to either side of the tunnel. ➢ Don’t forget to adjust the Flip V-Nozzle Rotation to match conveyor speed.

  • Page 20: Customer Service

    V-Nozzles – Owner’s Manual CUSTOMER SERVICE Need more help? For questions regarding installation and/or operational issues and settings, please contact Sonny’s Tech Support at extension 234 or email at Sonnys-Support@SonnysDirect.com. To order replacement parts, contact Customer Service at ext. 200, email us at CustomerService@SonnysDirect.com...

  • Page 21: Warranty

    V-Nozzles – Owner’s Manual WARRANTY SONNY’S ENTERPRISES, INC. FACTORY LIMITED LIFETIME WARRANTY Equipment manufactured by SONNY’S ENTERPRISES, INC. is warranted to be free from defect in material and workmanship. Welded metal framework and other non-moving, non-wearable fabricated metal components manufactured by Sonny’s are warranted for the life of the equipment to the original purchaser.
