Sonny's SP Series Owner's Manual

Spinner wheel blasters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Spinner Wheel Blasters
SP Series
Owner's Manual
Sonny's Enterprises LLC
5605 Hiatus Road
Tamarac, Florida 33321

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sonny's SP Series

Summary of Contents for Sonny's SP Series

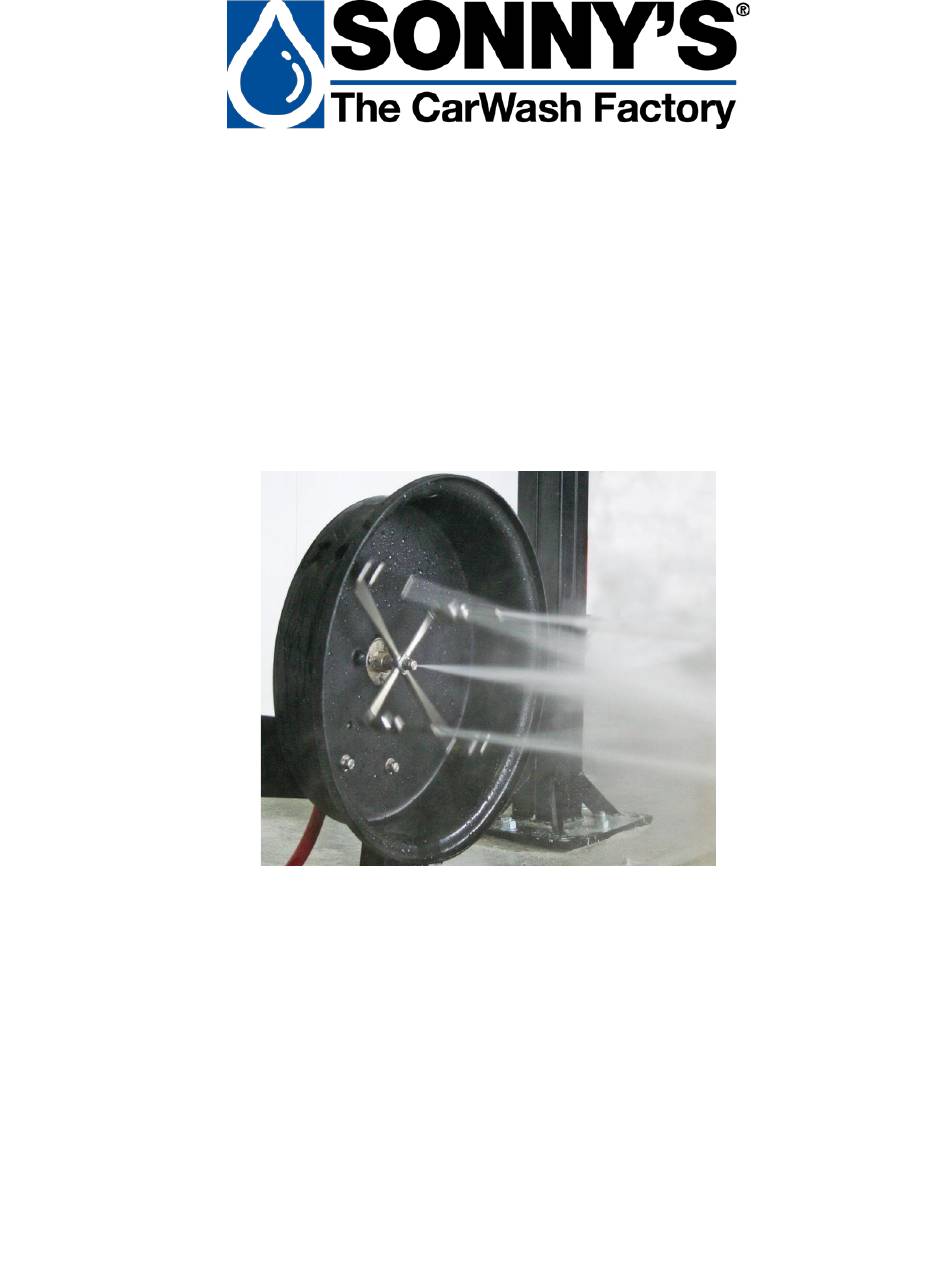

  • Page 1 Spinner Wheel Blasters SP Series Owner's Manual Sonny's Enterprises LLC 5605 Hiatus Road Tamarac, Florida 33321...

  • Page 2: Table Of Contents

    Owner’s Manual Spinner Wheel Blasters SP Series *Table of Contents* WARNING *SAFETY REQUIREMENTS* WARNING ..............3 *INTRODUCTION* ........................5 Product Specifications ......................6 *INSTALLATION* ........................10 Utilities Requirements ......................10 Dimensions ..........................11 Equipment Installation ......................14 Adjustments and Testing ..................... 15 *GENERAL OPERATION* ......................

  • Page 3: Warning *Safety Requirements* Warning

    Owner’s Manual Spinner Wheel Blasters SP Series WARNING *SAFETY REQUIREMENTS* WARNING 1. All employees must be thoroughly trained in safe operation and standard maintenance practices. All employees must review this entire manual monthly. 2. Do not enter the wash tunnel when the equipment is operating. Death or dismemberment may occur.
  • Page 4 Owner’s Manual Spinner Wheel Blasters SP Series 13. Store all cleaning and washing solutions and oils in a well-ventilated area. Clean up fluid spills immediately to prevent hazardous safety conditions. Be certain to follow all safety procedures on SDS Sheets for each chemical product used.

  • Page 5: Introduction

    Owner’s Manual Spinner Wheel Blasters SP Series *INTRODUCTION* This Manual contains information that is vital to the successful installation, operation and maintenance of your SONNY’S vehicle washing equipment. Please read, and understand, the full contents of this manual before installation and operation of the equipment. Keep this booklet in a location where it may be used for ongoing reference.

  • Page 6: Product Specifications

    Owner’s Manual Spinner Wheel Blasters SP Series Product Specifications ➢ Free-standing pivot design & free standing stationary design ➢ 4 – zero degree plus nozzles & 1 – 15 degree on each spinner ➢ Also available as a turbo with 4 – zero degree nozzles & 1 turbo nozzle in center ➢...
  • Page 7 Owner’s Manual Spinner Wheel Blasters SP Series © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 7 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.
  • Page 8 Owner’s Manual Spinner Wheel Blasters SP Series © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 8 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.
  • Page 9 Owner’s Manual Spinner Wheel Blasters SP Series © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 9 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.

  • Page 10: Installation

    Owner’s Manual Spinner Wheel Blasters SP Series *INSTALLATION* Utilities Requirements UTILITIES INTERCONNECTION AND THE MATERIALS REQUIRED FOR INTERCONNECTION TO SONNY’S EQUIPMENT ARE THE RESPONSIBILITY OF THE CUSTOMER ! PERFORM ALL TRADES WORK TO ALL APPLICABLE LOCAL AND NATIONAL CODES ! Electric The Customer’s Electrician is to provide materials and install single phase power (24VAC or...

  • Page 11: Dimensions

    Owner’s Manual Spinner Wheel Blasters SP Series Dimensions Figure #1 © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 11 of 21 published without prior written consent.
  • Page 12 Owner’s Manual Spinner Wheel Blasters SP Series Figure #2 © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 12 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.
  • Page 13 Owner’s Manual Spinner Wheel Blasters SP Series Figure #3 © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 13 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.

  • Page 14: Equipment Installation

    Owner’s Manual Spinner Wheel Blasters SP Series Equipment Installation Spinner Wheel Blasters Tools Consumables 1. Safety Glasses 1. Stainless Shims 2. ½" Drive Ratchet Set 2. PTFE Tape 3. Standard Combo Wrenches 3. PTFE Paste 4. Standard Screwdriver 5. 1” Hammer Drill 6.

  • Page 15: Adjustments And Testing

    Owner’s Manual Spinner Wheel Blasters SP Series Adjustments and Testing Test Water and Air Using the 4-way air valves on the air distribution manifold, manually activate each air cylinder and ensure the spinners pivot properly and that in the OFF position it is facing as in Position #1 in Figure #2.

  • Page 16: General Operation

    Owner’s Manual Spinner Wheel Blasters SP Series *GENERAL OPERATION* Spinner Wheel Blasters Starting and stopping of the spinners is controlled by the customer’s equipment programmer signal to the motor starter coil controlling three-phase power to the high pressure water pump. The speed of the rotation of the spinners being driven may be changed by the bypass/regulator adjustment on the pump.

  • Page 17: Preventive Maintenance

    Owner’s Manual Spinner Wheel Blasters SP Series *PREVENTIVE MAINTENANCE* DAILY 1. Check all lines and fittings for leaks. Repair or replace, as needed. 2. Check for proper operation, listening for any unusual noises and checking for proper tracking. WEEKLY 1. Inspect the spray nozzles for excessive wear, replace if necessary.
  • Page 18 Owner’s Manual Spinner Wheel Blasters SP Series Tunnel length/width required for all types of spinners is 28" and 154" respectively. Water usage is up to 20GPM@800PSI. Pneumatic is 2CFM. Determining the nozzle size needed for (1) set of spinners to produce a proper application: Spinners have 5 nozzles per side for a total of 10 nozzles 1.
  • Page 19 Owner’s Manual Spinner Wheel Blasters SP Series Zero degree nozzles have 3 holes at the base and a 3” long shaft. The holes break the water, and the shaft reassembles it into larger drops in a tighter stream. The results are a stronger & greater impact for better cleaning.

  • Page 20: Warranty

    Owner’s Manual Spinner Wheel Blasters SP Series *WARRANTY* SONNY’S ENTERPRISES, INC. FACTORY LIMITED LIFETIME WARRANTY Equipment manufactured by SONNY’S ENTERPRISES, INC. is warranted to be free from defect in material and workmanship. Welded metal framework and other non-moving, non-wearable fabricated metal components manufactured by SONNY’S are warranted for the life of the equipment to the original purchaser.

  • Page 21: Customer Service

    Owner’s Manual Spinner Wheel Blasters SP Series *CUSTOMER SERVICE* Please contact SONNY’S Equipment Department for installation and/or operational questions regarding this piece of equipment. Please refer to the Parts Catalog and contact SONNY’S Customer Service Order Entry Department for any replacement parts for this piece of equipment.
