Lambda SV Series Instruction Manual

LAMBDA ELECTRONICS
SVPT115 SERIES
SVPQ130 SERIES
FEATURES:
- Universal 85-265 VAC Input
- Short Circuit Protection
- VDE/FCC Level "B" Input Filter
- VDE,CSA,UL & IEC Safety Specs
- Compact 4.75" x 1.77" x 8.5"
- Optional Cover & PCB Only Available
- Optional Input and Output Good Signals (1)
- Optional 110/220 Vac Jumper Select
- Remote Sense of main output
MODEL NUMBERS & MAXIMUM RATINGS
SPECIFICATION
Package Power
°
50 C Ambient
125 LFM External Fan
Package Power
°
60 C Ambient
125 LFM External Fan
Package Power
°
50 C Ambient
Convection Cooling
Package Power
°
60 C Ambient
Convection Cooling
INPUT SPECIFICATIONS
SPECIFICATION
Input Voltage +/- 0%
Input Current
Efficiency
Input Power Typical
(Pout Max, Fan Cooled)
Inrush Current
Fusing
Harmonics - Meets IEC 555-2 AC line harmonics requirement.
(1) DC good signal is a 1mA conductance signal which indicates that DC output voltage is greater than 90% of nominal voltage. AC good signal is a 1mA
conductance signal indicating adequate input cap energy storage to meet hold up specification. DC output voltage will remain within regulation limits for
a minimum of 10mS after AC good signal ceases to conduct. AC good signal is initiated approximately 2 seconds after input power is applied.
(2) Overload of power supply does not cause fuse failure. Replace only with same type and rating.
MECHANICAL SPECIFICATIONS
(STANDARD MODEL)
SPECIFICATION
Weight
Input
LAMBDA ELECTRONICS, INC.
PART NUMBER
Arrow.com.
Downloaded from
Instruction Manual For
SVPT115 / SVPQ130
AC/DC Power Supply
CONFIGURATION
Without Cover
PCB Only (-N option)
With Cover (-Z Option)
Without Cover
PCB Only (-N option)
With Cover (-Z Option)
Without Cover
PCB Only (-N option)
With Cover (-Z Option)
Without Cover
PCB Only (-N option)
With Cover (-Z Option)
CONDITIONS
AC Range Low
AC Range High
Vin=85 Vac @130W
Vin=85 Vac @130W
Vin=264 Vac @ 25°C
5A/250VAC, Normal Blo (2)
3lbs
.156" center
515 BROAD HOLLOW RD. MELVILLE, NY 11747-3700
IM-SVPQ1

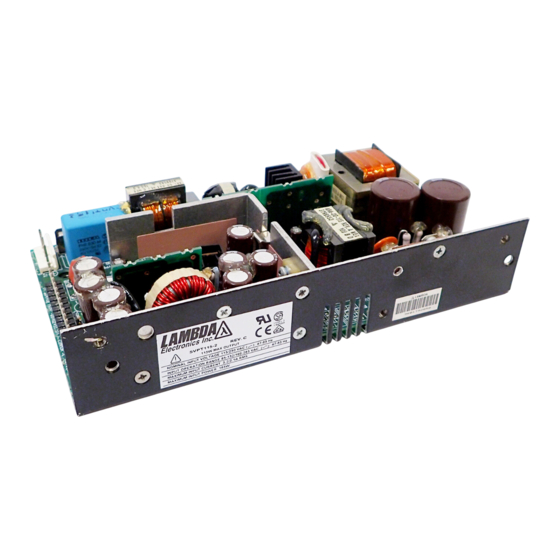

DESCRIPTION:
The SVPT/SVPQ 115/130 Series is a multiple output, high
performance line of quad and triple output power supplies in an open
frame chassis. The SV (Superior Value) series gives the system
designer tremendous flexibility with its standard features and
available options. Standard features include automatic AC mains
select, Class "B" VDE and FCC EMI filtering, Remote Voltage
Sensing on the +5 volt main output and Short Circuit Protection on
each output. Optional features include a Safety Cover, Input Good,
Output Good, PC Board only and jumper AC mains select.
MODEL NUMBER
SVPQ130-1-XXX SVPQ130-2-XXX
130 Watts 130 Watts
117 Watts 117 Watts
117 Watts 117 Watts
111 Watts 111 Watts
100 Watts 100 Watts
100 Watts 100 Watts
100 Watts 100 Watts
80 Watts 80 Watts
90 Watts 90 Watts
85 Watts 85 Watts
70 Watts 70 Watts
77 Watts 77 Watts
MIN NOM MAX UNITS
85 115 132 VAC
180 230 265 VAC
3.8 Arms
70%
186 Watts
75 Apeak
OPTIONS SPECIFICATIONS
DESCRIPTION
-XXX
N PC Board only construction.
All output currents must be derated by:
1
SV SERIES
SVPT115-1-XXX
115 Watts
104 Watts
104 Watts
98 Watts
88 Watts
88 Watts
100 Watts
80 Watts
90 Watts
85 Watts
70 Watts
77 Watts
%
20% for convection cooled
(516) 694-4200
DERATING
10% for fan cooled
