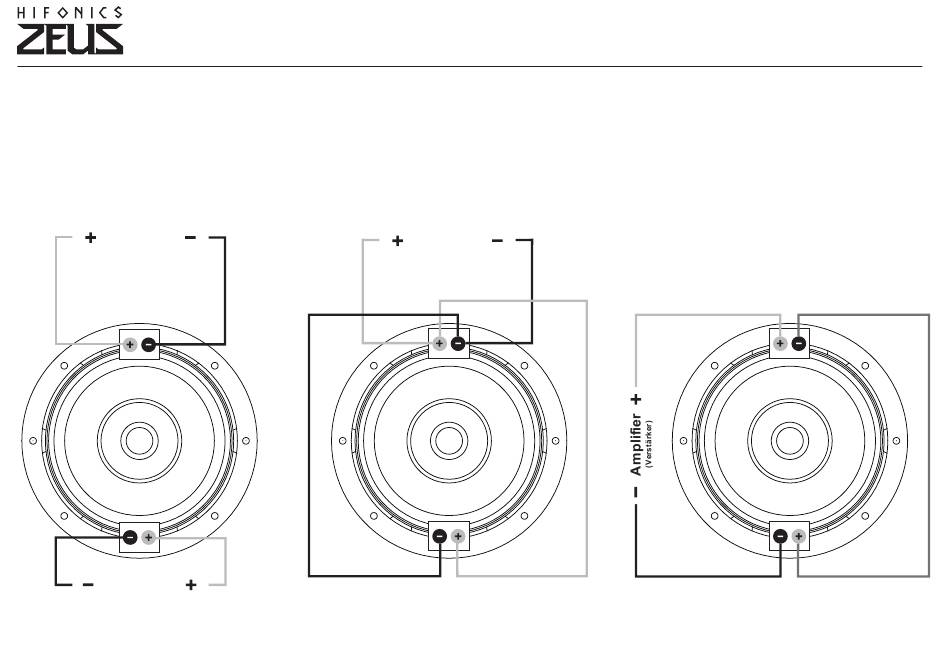

WIRING DIAGRAM
(Anschlussdiagramm)
Standard
D2 = 2 + 2 Ohms
D4 = 4 + 4 Ohms
Amplifier
(Verstärker)
Voice Coil 1
(Schwingspule 1)
Amplifier
(Verstärker)
Voice Coil 2
(Schwingspule 2)

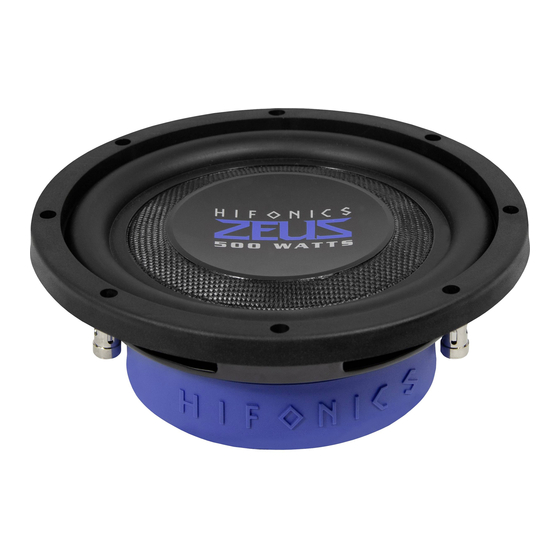

ZST8D2 / ZST8D4 / ZST10D2 / ZST10D4
Parallel
D2 = 1 Ohm
D4 = 2 Ohms
Amplifier
(Verstärker)
Voice Coil 1
(Schwingspule 1)
Voice Coil 2
(Schwingspule 2)
Serial
(Reihe)
D2 = 4 Ohms
D4 = 8 Ohms
Voice Coil 1
(Schwingspule 1)
Voice Coil 2
(Schwingspule 2)
