Page 2
DEUTSCH EINBAUHINWEISE Der erste Schritt bei der Installation der Lautsprecher sollte die sorgfältige Planung sein. Folgen Sie einfach diesen Vorschlägen um das bestmögliche Resultat zu erreichen. 1. Wählen Sie eine Position für die einzelnen Komponenten, bei der das Signal am besten ohne Hinder- nisse im Fahrgastraum verteilt wird.
Page 3
DEUTSCH ANSCHLUSS BRX5.2C, BRX6.2C Tiefmitteltöner Tiefmitteltöner Hochtöner Hochtöner Kabelweiche Kabelweiche für Tiefmitteltöner für Tiefmitteltöner Kabelweiche Kabelweiche für Hochtöner für Hochtöner + L – + R – Lautsprecherausgänge am Verstärker WICHTIG: Bitte achten Sie unbedingt auf die korrekte Polarität (+ oder –) aller Anschlüsse und Verbindungen.
Page 4

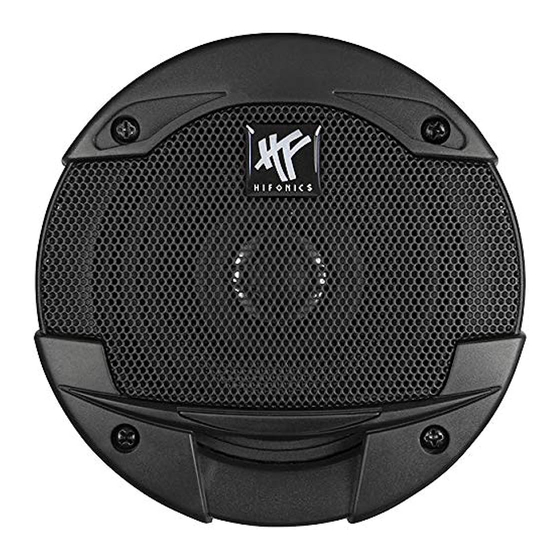

DEUTSCH HOCHTONABSCHWÄCHUNG BRX5.2C, BRX6.2C –6dB –3dB Optional: Durchtrennen Sie an der Hochtöner-Kabelweiche die transparente Kabelschlaufe für eine Hochtonabschwächung von – 3dB. Wenn Sie eine Hochtonabschwächung von – 6dB möchten, müssen Sie zusätzlich noch die rote Kabelschlaufe durchtrennen. ANSCHLUSS BRX42, BRX52, BRX62 Lautsprecher Lautsprecher + L –...
ENGLISH INSTALLATION NOTES The first step of installing a speaker system is thorough planning. Choose a suitable location for your speak- er components carefully. Follow these suggestions to ensure proper imaging and maximum performance: 1. Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
Page 6
ENGLISH INTERCONNECTION BRX5.2C, BRX6.2C Midbass Midbass Tweeter Tweeter Crossover Crossover Woofer Woofer Crossover Crossover Tweeter Tweeter + L – + R – Speaker Outputs at the Amplifier IMPORTANT: Please pay attention to the correct polarity (+ or -) for all terminals and connections.
Page 7
ENGLISH TWEETER ATTENUATION BRX5.2C, BRX6.2C –6dB –3dB Optional: Cut the transparent cable loop on the tweeter crossover for a tweeter attenuation of – 3dB. If you want a tweeter attenuation of – 6dB, you also have to cut through the red cable loop. INTERCONNECTION BRX42, BRX52, BRX62 Speaker Speaker...
