LEXIBOOK TW42 Series - Walkie-talkie Manual

UNPACKING

Includes:
2 x walkie-talkies 1 x instruction manual


All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this toy and should be discarded for your child's safety.

POWER SUPPLY

These walkie-talkies operate on 3 x 1.5V LR03/AAA batteries for each walkie-talkie (not included). Remove the belt clip on the rear of the walkie-talkie will allow you to access the battery door.

To remove the belt clip
It is easier to fit the batteries without the belt clip in place.
Pull the tab forward (away from the handset) to release the belt clip. Then lift the belt clip off.

Installing batteries:

  1. Open the battery compartment located under the unit.
  2. Install the 3 x 1.5V AAA/LR03 batteries observing the polarity markings inside the battery compartment.
  3. Close the battery compartment.
  4. The walkie-talkies will automatically power on and are ready for use.

To fit the belt clip
Slide the belt clip down into the slot until it clicks into place.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the toy. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the game for a long period of time. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.


Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again.

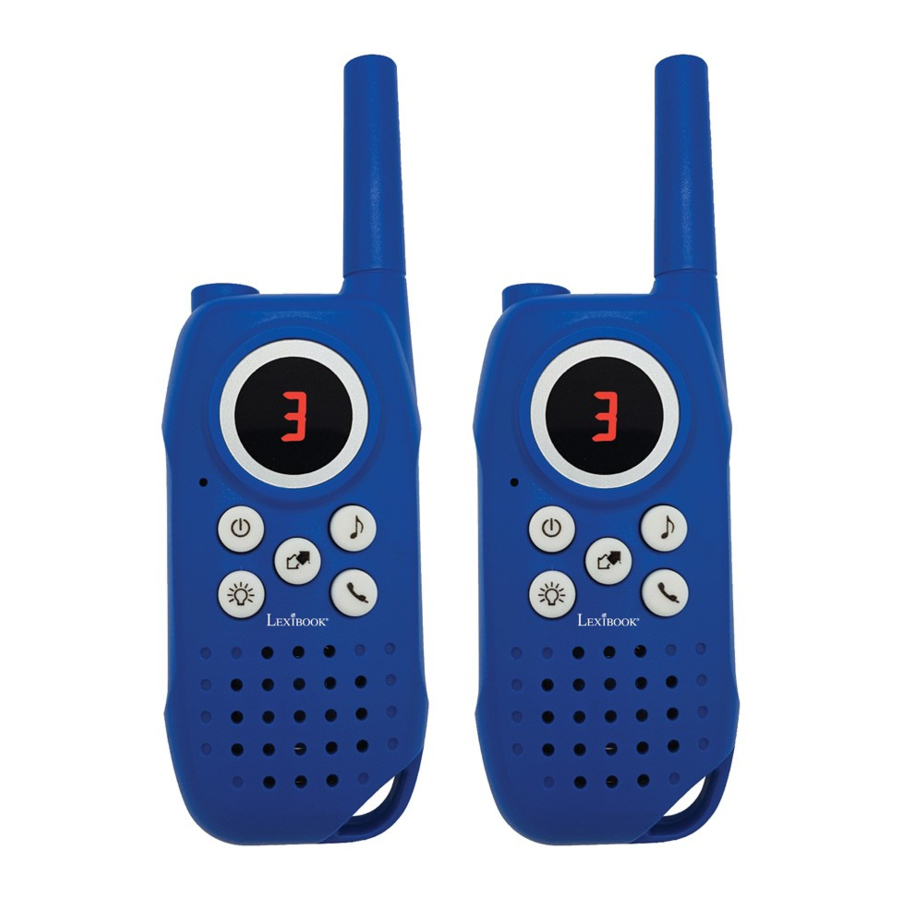

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

  1. On/Off
  2. Flashlight
  3. Channel choice
  1. Speaker
  2. Talk
  3. Call
  1. LED screen
  2. LED light
  3. Mic
  1. Antenna
  2. Belt clip
  3. Battery Door
  4. Sling

SAFETY INFORMATION

warningImportant safety warning

  • To reduce radio frequency exposure when you're using your TW42series, hold the handset at least 5cm (2 inches) from your face.
  • Never use your walkie-talkies outdoors in a thunderstorm.
  • Don't use your PMR in the rain.
  • If your PMR becomes wet, turn it off and remove the battery pack. Dry the battery compartment and leave the battery cover off for a few hours.
  • Don't use the PMR until it is completely dry.
  • Keep the PMR out of the reach of babies and young children.
  • Battery should not be exposed to excessive heat such as sunshine, fire or the like.
  • The device complies with RF specifications when used near your body. Keep a distance of 2.5 cm from the body. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.


RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION.

  • Keep minimum distances around the apparatus for sufficient ventilation;
  • The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;
  • No naked flame sources, such as lighted candles, should be placed on the apparatus;
  • The use of apparatus in tropical and/or moderate climates.
  • Batteries should be disposed safely. Take them to the collection container in order to protect the environment;

GETTING STARTED

Switching the walkie-talkies on and off
To turn the walkie-talkies on and off, hold down the on/off button for 2 to 3 seconds. You will hear a musical tone each time to confirm. The screen will display the channel number (1 to 3).

How to use your walkie-talkies

The walkie-talkies have three channels, numbered 1 to 3, displayed on the LED screen. To communicate with other users within range, you must all have your walkie-talkies tuned to the same channel. Make sure both walkie-talkies are on the same channel by holding down the channel button for 2 to 3 seconds.
To talk to your partner, hold down the talk button. Make sure you let go of the talk button when you are done talking; this will let your partner communicate back. PMR transmission is 'one way-at-a-time' - while you are speaking, you cannot receive a transmission. You will achieve best results if you hold the walkie-talkie 1.5 to 2.5 inches away from your mouth and speak at a normal volume and tone.
If you need to call your partner to get their attention, push the call button. It will send a ring tone to other handsets within range and tuned to the same channel, and alert them that you want to communicate with them.
Push down the flashlight button to use the LED light when playing in the dark.

Special functions

  • Auto-squelch function: Attenuate the background and signal noise while in reception mode, to place you in a comfortable conversation.
  • One-to-one, one-to-many communication function: You can communicate with one other walkie-talkie (included), but also with several others (not included in the box). You only have to make sure that they are all tuned to the same channel, by holding down the channel button for 2 to 3 seconds.

Transmitting range

  • The talk range depends on environmental and terrain. It will be greatest (up to about 5 km or 3.1 miles) in wide open spaces, without obstructions such as hills or buildings. If you are having issues with communicating, it is recommended to be in a location with less traffic and less surrounding noise.
  • Don't try to use two walkie-talkies which are less than 1.5m (5 feet) apart. lf you do, you may get interference.
  • PMR446 is an open-license band - always identify yourself when transmitting, as other people may be communicating on the same channel.

TROUBLESHOOTING GUIDE

Symptom Solution

No power

  • Battery is low or not fitted correctly.
  • The walkie-talkie is not switched on.

Weak reception/ no reception/ noisy reception

  • Battery is low or not fitted correctly.
  • Other user is not within range.
  • The walkie-talkies are not tuned to the same channel.
  • The volume is too low: Speak in a normal voice, 5-8cm (2-3 inches) away from the microphone.
  • Local conditions are impairing reception: move to a different location away from obstructions and as high as possible.
  • You are holding the walkie-talkie too close to your body.
  • Other user is not transmitting.
  • Other user is too close.
  • There is interference from other users on the same channel: agree with the other users to use a different channel.

Cannot change channels

  • Battery is low or not fitted correctly.

TECHNICAL SPECIFICATIONS

Operating frequency:

  • Channel 1: 446.00625MHz
  • Channel 2: 446.03125MHz
  • Channel 3: 446.05625MHz
