Unit - the outdoor unit
Front: Closed and open
Rear side: Closed and open

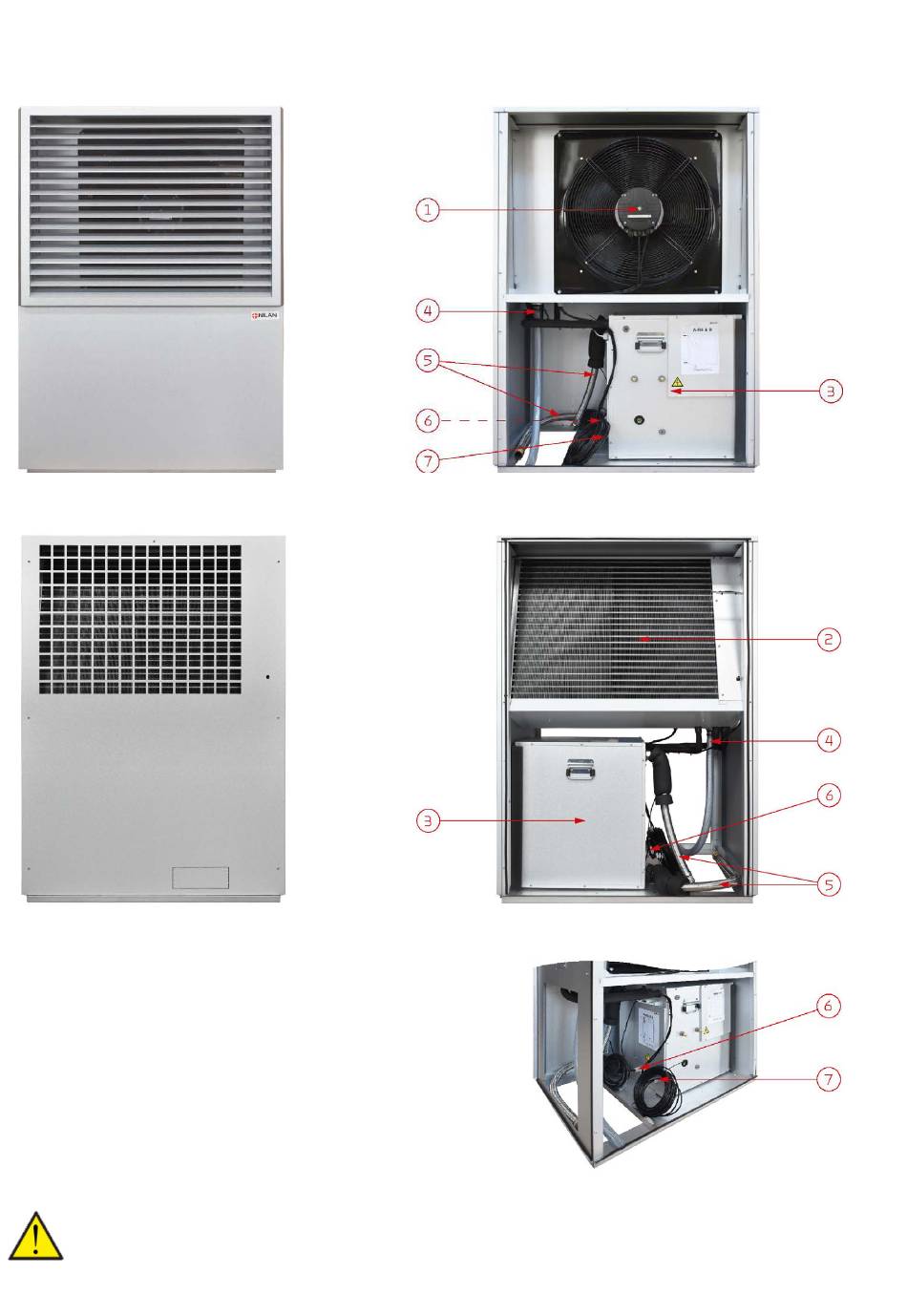

AIR outdoor unit:
1. Fan
2. Evaporator
3. Heat pump
4. Condensate drain with integral heating cable
5. Connections to/from the indoor unit (liquid)
6. Electrical connection cable for AIR heat pump outdoor unit (screw ter-
minal)
7. Communication cable with connector for connection to the indoor unit
(RJ45)
ATTENTION
The illustrations above show an example of an AIR outdoor unit. Different versions of the outdoor unit are available.
