Summary of Contents for Motorline professional SIGMA XA5

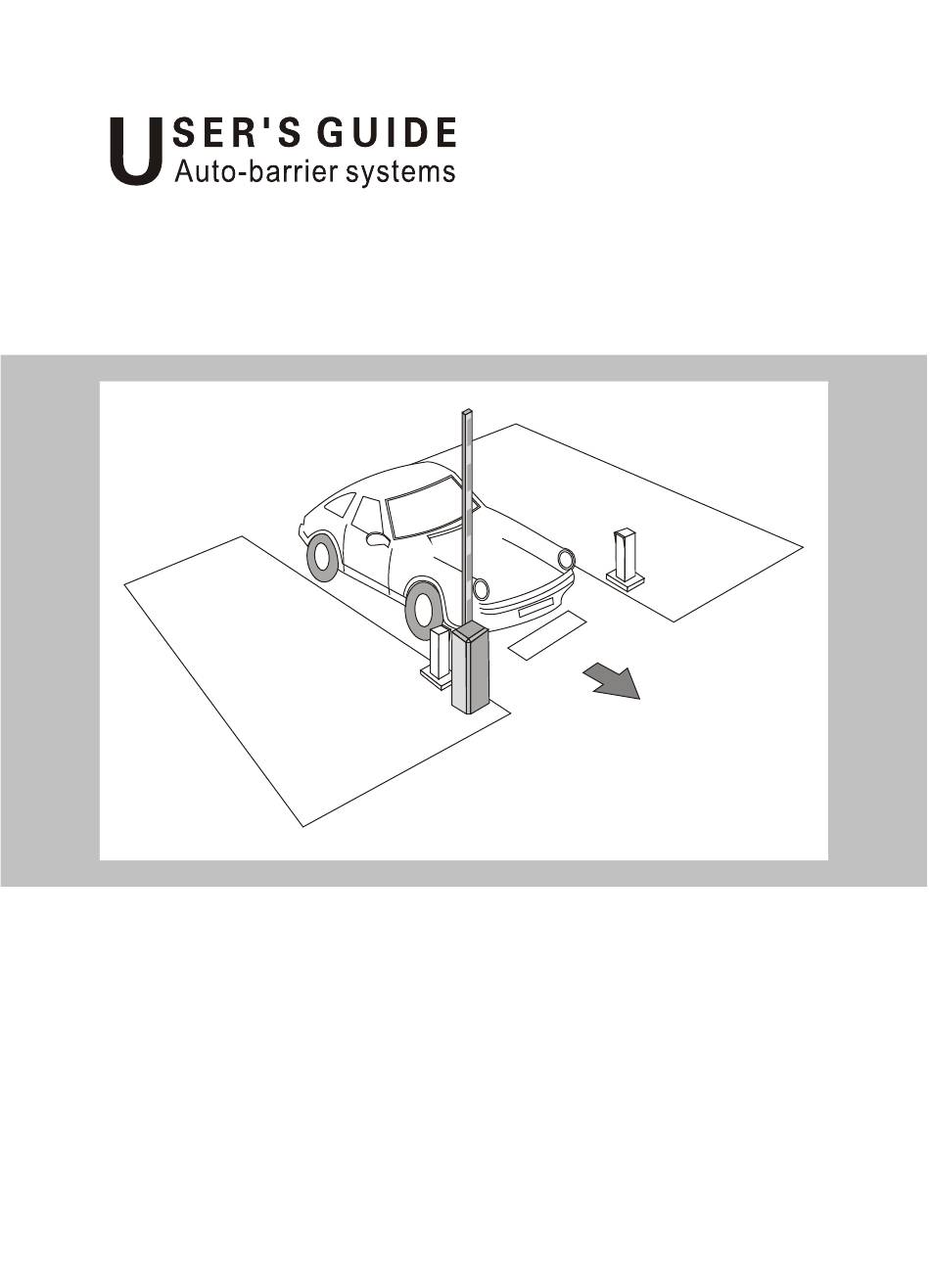

  • Page 1 Rev. 2.0 15/09/17...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING 1 .Before starting installation and operation or maintenance work, make sure to cut off power supply. The cabinet must be earthed. And an earth leakage breaker is nec- essary on the power supply. As for electric cable type and section, we suggest the use of appropriate cabel according to the local regulations.
  • Page 3 A. Technical specifications Max.5m Power supply: 220V/50Hz 90W R.P.M: 2800r/min Time for up/down:3~6S Max boom length: According to model (Max.5m)
  • Page 4 B. Installing and adjusting 1. Install the machine on the ground 2. Install boom(Fig.2) 3.Adjust the spring's balance(Fig.3) IMPORTANT: The barrier is supplied with springs already balanced for the max. boom length (5m) If the boom is smaller, you must adjust spring force in order to make the barrier stop along its course when needed.
  • Page 5 4.Adjust the limit position Barrier can be supplied with magnetic limits (B) , mechanicals limits (A) or both. You must adjust first the mecanical ones (A) in order to make the desired route, adjusting then magentic ones(B) for safety reasons.Since they are connected in serie with the mecanicals ,set them to act soon after these.
