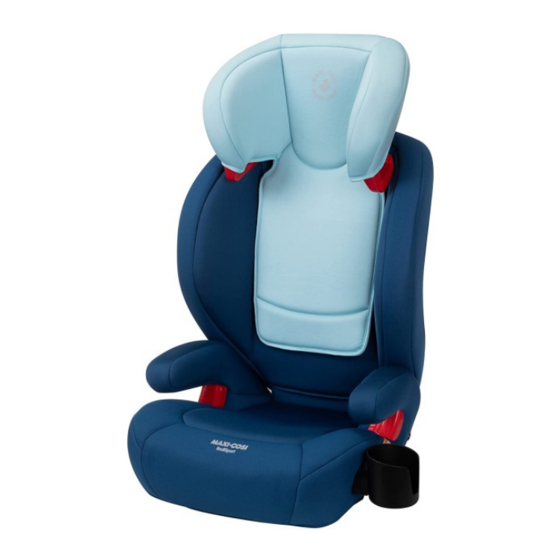

Maxi-Cosi RodiSport Manual

Booster seat
Hide thumbs Also See for RodiSport:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Maxi-Cosi RodiSport

Summary of Contents for Maxi-Cosi RodiSport

  • Page 2 RodiSport Booster Seat 4358-8144B 4.21.22 KEEP INSTRUCTIONS FOR FUTURE USE. Read all instructions before using this booster seat. WARNING Failure to follow the warnings on the labels and in the instruction manual can result in serious injury or death to your child.
  • Page 3 Overview Welcome to the Maxi-Cosi family and thank you for choosing this booster seat, also known as a child restraint! To help you get started using your child’s new booster seat, here are the 3 main tasks you’ll need to complete.
  • Page 4 Quick Navigation BACKED BOOSTER SEAT Backed Backed Isofix UAS & Booster Seat Booster Seat Lap/Shoulder 18-45 kg (40-100 lb) and Child Fit Belt PAGE 10 110-145 cm (43-57 in.) PAGE 12 PAGE 13 PAGE 3 Adjusting Booster Seat PAGES 5-7 BACKLESS BOOSTER SEAT Backless Backless...

  • Page 5: Table Of Contents

    Contents Getting Started Installing Backless Booster Belt-Positioning Clip ... 23 Parts of Booster Seat ........1 Positioning Belt-Positioning Clip ......24 Accessory Use ........... 2 Adjusting Length & Removing Booster Seat Requirements ......3 Belt-Positioning Clip .......... 25 Making Adjustments to Booster Seat Wash &...

  • Page 6: Parts Of Booster Seat

    Parts of Booster Seat back view of headrest Adjustable Headrest Headrest Shoulder Adjustment Belt- Handle Positioning Guides Backrest Lap Belt Path Cup Holder Attachment Isofix UAS Seat Base Connector Instruction Manual Isofix UAS Connector Storage Release Button Backless Booster Cup Holder Belt-Positioning Clip...

  • Page 7: Accessory Use

    Accessory Use Cup Holder To attach, align the slot in the cup holder with the attachment on the side of the seat. Slide the cup holder down on to the attachment. To remove, pull the cup holder up off of the attachment. The cup holder is top-rack dishwasher safe.

  • Page 8: Booster Seat Requirements

    Booster Seat Requirements the highest weight or height allowed by their seat. Measure your child’s weight and height (do not guess) before Toddlers and Preschoolers Once they are facing- using this booster seat. forward, children should use a forward- facing car seat with a harness for as long as possible, until Your child’s height, weight, and age determine how they reach the height and weight limits for their...
  • Page 9 BACKED BOOSTER SEAT BACKLESS BOOSTER SEAT 18-45 kg (40-100 lb) and 18-45 kg (40-100 lb) and 110-145 cm (43-57 in.) 110-145 cm (43-57 in.) Your child can remain in this Booster Seat Your child can remain in this Booster Seat until they outgrow any one of the following: until they outgrow any one of the following: l Weight Limit: 45 kg (100 lb);...

  • Page 10: Installing Backrest

    Installing Backrest Locate Backrest Connection Slots in Seat & Slide Backrest Attachment Hooks into Slots. You may need to push the seat pad flap back to reveal slots. Rotate Backrest All The Way Forward. It Will Click Twice.

  • Page 11: Removing Backrest

    Removing Backrest Rotate Backrest All The Way Back. It Will Click Twice. Then Lift Backrest Out of Seat.

  • Page 12: Adjusting Headrest Height & Reclining Backrest

    Adjusting Headrest Height & Reclining Backrest The headrest has multiple height positions. The reclined position is only to be used to install the booster seat flush against the back view of headrest vehicle seat back. Vehicle seat back must be upright. Headrest Adjustment Handle...

  • Page 13: Isofix Uas & Vehicle Belts

    Your vehicle’s features may be considerably different than those pictured here. Not all vehicle belts and seating positions will work with child restraints. The UAS (Universal Anchorage System) is a universal system for installing child restraints. This Isofix UAS can only be used in vehicles that have the UAS anchor bars installed and designated UAS seating positions. This Isofix UAS cannot be used with raised UAS anchors in the vehicle seat back.
  • Page 14 You must review your vehicle owner’s manual. It will let you know which vehicle belts and seating positions child restraints can be installed in and which seating positions may be equipped with UAS: anchor bars. Must Use With This Booster Seat Lap/Shoulder Belts Never Use With This Booster Seat Lap Only Belts...

  • Page 15: Backed Booster Seat

    Backed Booster Seat 18-45 kg (40-100 lb) and 110-145 cm (43-57 in.) Use only the vehicle’s lap and shoulder belt system when re- straining the child in this booster seat. Do not use only the lap belt when using this booster seat. The shoulder belt must always be adjusted snugly across the child’s Isofix UAS +...
  • Page 16 Do not use the UAS if the seat belt or seat belt buckle is not easily accessible with the booster seat secured to the anchors. Do not use the UAS if the seat belt or seat belt buckle is between the UAS anchors.

  • Page 17: Backed Booster Seat Child Fit

    Backed Booster Seat Child Fit Head Position Shoulder Belt Position The tops of your child’s ears should never be The shoulder belt should above the top of the lay snugly across the booster seat’s headrest. center of your child’s shoulder and across their Adjust headrest if needed, chest;...

  • Page 18: Backed Isofix Uas & Lap/Shoulder Belt Use

    Backed Isofix UAS & Lap/Shoulder Belt Use You MUST remove the backless belt-positioning clip Place Booster strap in order to install the backrest. See page 25. Seat Forward To install the backrest, see page 5. Facing in Vehicle Isofix Steps 1, 3, and 4 are optional. The vehicle seat back Extend Isofix UAS must be upright.
  • Page 19 Align Isofix UAS Have Child Sit in Connectors with Booster Seat Vehicle’s Anchor Bars (optional) Attach the connectors to the anchor bars. You may need to push down on the seat to align. Push the Booster Seat Back Against Vehicle Seat (optional) Make sure the seat is connected to the anchor...
  • Page 20 Position Shoulder Position Lap Belt on Child Belt on Child Route the lap portion Pull up on the shoulder of the lap/shoulder belt belt to tighten. under both armrests. The shoulder belt The shoulder belt MUST should lay snugly GO UNDER the armrest across the center of your child’s shoulder and across their chest;...
  • Page 21 To Remove Isofix UAS Finished! Connector From Vehi- Check periodically to cle Anchor make sure your child Press the button in has not moved out of and slide the Isofix UAS position and loosened connector back into the the shoulder belt. shell.

  • Page 22: Backless Booster Seat

    Backless Booster Seat 18-45 kg (40-100 lb) and 110-145 cm (43-57 in.) Use only the vehicle’s lap and shoulder belt system when re- straining the child in this booster seat. Do not use only the lap belt when using this booster seat. The shoulder belt must always be Isofix UAS + Keep booster seat...
  • Page 23 Do not use the UAS if the seat belt or seat belt buckle is not easily accessible with the booster seat secured to the anchors. Do not use the UAS if the seat belt or seat belt buckle is between the UAS anchors.

  • Page 24: Backless Booster Seat Child Fit

    Backless Booster Seat Child Fit Head Position Shoulder Belt Position The tops of your child’s ears should never be above the The shoulder belt should top of the vehicle seat’s lay snugly across the headrest. center of your child’s shoulder and across their chest;...

  • Page 25: Backless Isofix Uas & Lap/Shoulder Belt Use

    Backless Isofix UAS & Lap/Shoulder Belt Use To remove the backrest, see page 6. Place Booster Seat Forward Isofix Steps 1, 3, and 4 are optional. Facing in Vehicle Extend Isofix UAS The vehicle seat back must be upright. Connectors (optional) The back of the booster seat should be flat...
  • Page 26 Push the Booster Position Lap Belt on Seat Back Against Child Vehicle Seat Route the lap portion (optional) of the lap/shoulder belt under both armrests. Make sure the seat is connected to the anchor The shoulder belt MUST bars. GO UNDER the armrest on the vehicle buckle side.
  • Page 27 Finished! Position Shoulder Belt on Child Check periodically to make sure your child Pull up on the shoulder belt has not moved out of to tighten. position and loosened The shoulder belt should the shoulder belt. lay snugly across the center of your child’s shoulder and across their chest;...

  • Page 28: Installing Backless Booster Belt-Positioning Clip

    Installing Backless Booster Belt-Positioning Clip When using the belt- Pull Clip Through positioning clip, it must be Loop at End of installed on the side of the Strap booster seat that is closest to the vehicle seat buckle. Locate Bar at Back of Booster Seat Pull to Tighten Route Belt-Positioning...

  • Page 29: Positioning Belt-Positioning Clip

    Positioning Belt-Positioning Clip 1. Have your child sit in the booster seat. Check the length of the belt-positioning clip strap often as your child grows. 2. Pull the belt-positioning clip straight up to the Adjust strap as needed. See next page. top of your child’s shoulder.

  • Page 30: Adjusting Length & Removing Belt-Positioning Clip

    Adjusting Length & Removing Belt-Positioning Clip Adjusting Length of Belt-Positioning Clip Strap To Lengthen To Shorten Push the free end of From the top of the the strap (1) into the clip, make a loop in the clip. strap (1). Pull on the opposite Push the strap into the end of the strap (2) to...

  • Page 31: Removing Seat Pad Set For Cleaning

    Removing Seat Pad Set for Cleaning Locate Headrest Pad Gently Pull Fasteners on Back Headrest Pad of Headrest & Undo off Headrest Them Locate Elastic Straps Locate Backrest Pad Fasteners on Back on Headrest Belt- of Backrest & Undo Positioning Guide Them Release them from each belt-positioning guide.

  • Page 32: Cleaning & Installing Seat Pad Set

    Gently Pull Backrest Cleaning and Installing Seat Pad Set Pad Off Backrest Machine wash separately with cold water on a gentle cycle. Do not use bleach. Tumble dry separately for 10-12 minutes on low heat. Remove immediately. 1. From Front of Seat, Pull Seat Pad Onto Seat & Over Armrests 2.

  • Page 33: Replacement And Expiration Of Car Seat

    Replacement & Expiration of Car Seat Do not risk your child’s safety. If one or more of these criteria are not true or if you are uncertain of any of your answers, replace the car To keep your child as safe as possible, Dorel Juvenile seat immediately.

  • Page 34: Aircraft Information

    Aircraft Information This restraint is not certified for aircraft use because aircraft seats do not have shoulder belts. Do not substitute parts or try to modify the Transport Canada Regulations booster seat in any way. Transport Canada Road Safety Directorate regulates Do not use any booster seat accessory except children’s restraint systems under the Motor Vehicle those approved by Dorel Juvenile Group.

  • Page 35: Vehicle Seating Position

    seat must be firmly secured to the vehicle by you have air bags, advanced air bags, or no air the Isofix UAS or with the vehicle seat belt. In bags at all. a crash or sudden stop, an unsecured booster If you are not sure where to place the car seat in seat could injure occupants.

  • Page 36: Registration & Safety Notices

    Online: www.djgusa.com/registration/carseat/can Telephone: 1-800-951-4113 Mail: Send your name, address and your child Maxi-Cosi Car Seat restraint’s model number, manufacture date, line code, and date of purchase to: Dorel Juvenile Canada Example of model number, line code, and 2233 Argentia Road, Suite 110 manufacture date.

  • Page 37: Warranty

    Consumer Care Department by phone: 1-800- Please note: Our product warranty only applies when 951-4113 or text: 1-812-652-2525. Our hours purchased from an authorized Maxi-Cosi retailer. of operation are from 8:00 a.m. to 6:00 p.m. EST The origin of products not purchased through Monday through Thursday and from 8:00 a.m.
  • Page 38 you are purchasing safe and complete products. Fulfillment by a third party does not guarantee you are purchasing from one of these authorized retailers. Pricing which is inconsistent with the majority of retailers is a strong indication that the retailer is not authorized, as we have a consistent price offering across all authorized retailers.

  • Page 39: Replacement Parts List

    Replacement Parts List Seat Pad Set Backless Booster Belt-Positioning Clip Cup Holder Instructions If requested color is not available, similar color will be substituted. Applicable tax and shipping & handling will also be added. For parts availability and questions, Call: 1-800-951-4113 Text: 1-812-652-2525 Chat: www.maxicosi.com If you already know which parts you need, you may complete your order with...

  • Page 40: Dorel Juvenile Group Information

    Dorel Juvenile Group Information Thank you for choosing this child restraint. No one can predict if use of a child restraint The DJG family is committed to creating will prevent injury or death in a particular child restraints with the most comfort and crash.
