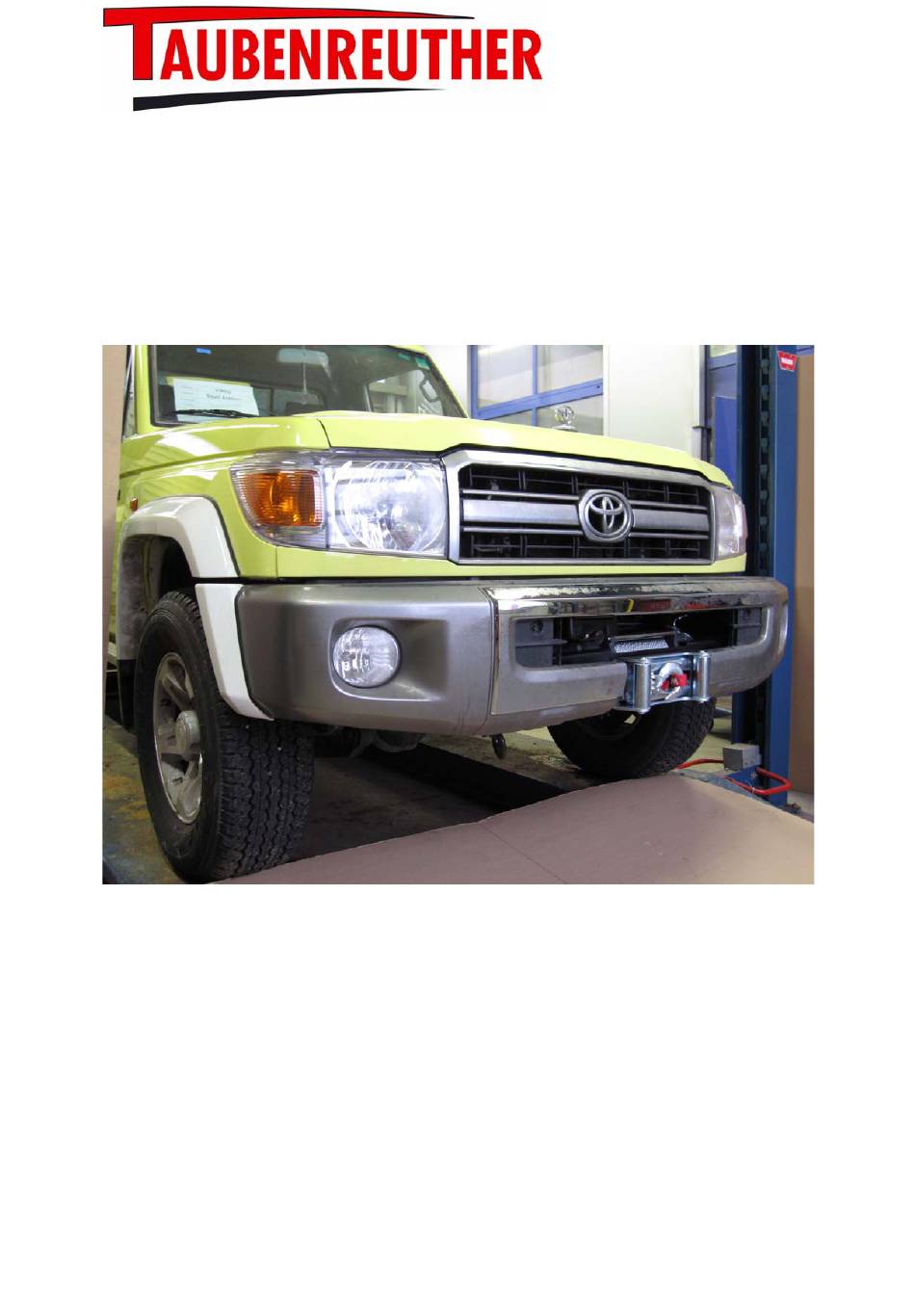

All manuals and user guides at all-guides.com Am Schwimmbad 8 95326 Kulmbach Tel. 09221 / 95620 Fax 09221 / 956222 e-mail: verkauf@taubenreuther.de Anbauanleitung Seilwindenanbausatz Fitting instruction winch mounting kit Toyota J 7 ab Bj. 2007 Best.-Nr.: 16 - 590 AL: 1191 – 00 Hier sehen sie den fertig montierten Seilwindenanbausatz.
Page 2

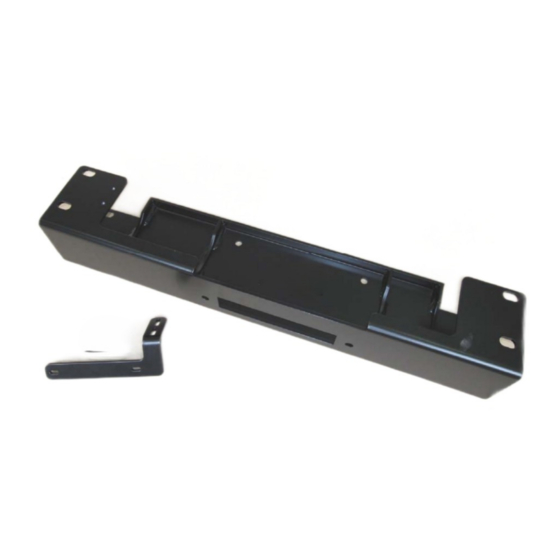

All manuals and user guides at all-guides.com Stückliste Parts list Seilwindenanbausatz / Winch mounting kit Toyota J7-07 Best.nr.: 16 - 590 1 x Seilwindenträger ( A ) 2 x Schraube M 10 x 20 1 x Schaltkastenhalter ( B ) 2 x Federring M 10 2 x U –...
Page 3
All manuals and user guides at all-guides.com...
Page 4
All manuals and user guides at all-guides.com...
Page 5
All manuals and user guides at all-guides.com...
Page 6
All manuals and user guides at all-guides.com Anleitung der Winde lesen ! Read the winch manual !!! Anleitung der Winde lesen ! Read the winch manual !!!
Page 7
All manuals and user guides at all-guides.com M 6 x 20 M6 x 20...
Page 8
All manuals and user guides at all-guides.com...
Page 9
All manuals and user guides at all-guides.com original original original...
Page 10
All manuals and user guides at all-guides.com 145 mm 310 mm...
Page 11
All manuals and user guides at all-guides.com M10 x20 Fertig ! Finish !
