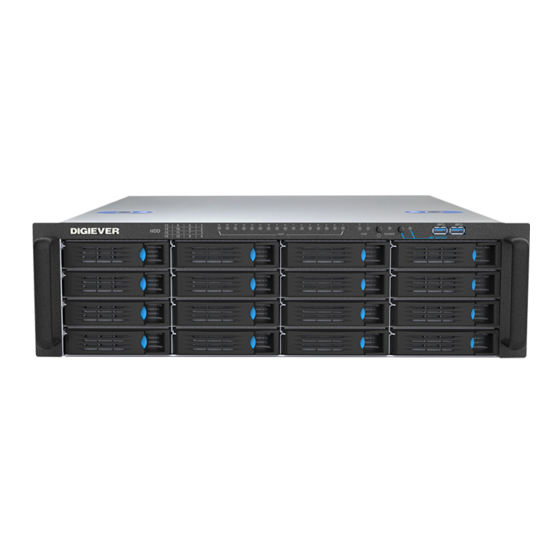

- Page 1 Network Video Recorder Quick Installation Guide DS-16400-RM UHD Series 1.2.0.6 Information in this document is subject to change without notice. © Copyright 2023, DIGIEVER Corporation. All rights reserved.
-
Page 2: Table Of Contents
Package Contents ..................... 5 Hardware Description ....................6 Hard Disk Installation ....................7 Connection to DIGIEVER NVR ................. 8 Quick Configuration....................11 Appendix LED Indicators on Front Panel ..................12 LED Indicators at Rear Panel ..................13... -
Page 3: Safety Notice
Quick Installation Guide Thank you for choosing DIGIEVER Network Video Recorder. The following quick guide will lead you to complete the installation and configuration of the NVR. Please read the following description carefully. Safety Notice The following safety precautions will increase the life of the NVR. Follow all precautions and instructions. -
Page 4: Pre-Installation Notice
Pre-installation Notice Please make sure the following items are prepared for installing DIGIEVER NVR DS-16400-RM UHD Series. Network connection Configuration of network cameras Compatibility of network cameras Computer for configuring DIGIEVER NVR 1-16 hard disks ... - Page 5 Note: It is highly recommended to use a graphics adaptor which provides higher than resolutions 1024 x 768 in order to experience the full benefits of the software. Make sure the display DPI setting is set to default at 96DPI To set DPI value, right-click on desktop, choose “Settings”...
-
Page 6: Package Contents
Package Contents NVR Network Video Recorder Power Cord Ethernet Cable Screw Bag Product CD... -
Page 7: Hardware Description
Hardware Description Front View Rear View HDD LED indicator Network LED indicator: LAN 1, LAN 2 Power LED indicator One-touch backup button with LED indicator 2 x USB3.2 Gen 1x1 (Front) 6~21. HDD 1 to HDD 16 Reset button DI/DO (4 x in, 4 x out) Max24V, DI_GND, DI-4, DI-3, DI-2, DI-1, OCOM, DO4, DO3, DO2, DO1 2 x 2.5 Gigabit Lan ports... -
Page 8: Hard Disk Installation
Hard Disk Installation Please follow the steps as illustrated below to install the hardware: Take out the disk tray from NVR. Connect the Ethernet cable to the port of 2.5 Gigabit LAN. Connect the power cord to power ... -
Page 9: Connection To Digiever Nvr
Connection to DIGIEVER NVR Please insert the product CD-ROM on a PC to install NVR Search and NVR Decoder. Finally, you can start Quick Configuration on a web page. ① Install NVR Search for finding NVR in the network ②... - Page 10 Click “Install NVR Decoder” and follow the instructions to setup. Connect to NVR 1. Connect to DIGIEVER NVR After setting the NVR Search and NVR Decoder, the user can connect to the monitoring page by the following two options: NVR Search Once you click “Connect”...
- Page 11 IP address or change it in this page. However, it’s recommended setting different IP address of DIGIEVER NVR if there is more than one DIGIEVER NVR in the same LAN. 2. Enter a user name and password Log in the NVR with the default administer account (user name: admin, password: admin).
-
Page 12: Quick Configuration
Once the five steps of Quick Configuration are complete, you can click “Start Liveview” to start monitoring. For further details of Quick Configuration, please refer to the user manual. When the live view is displayed, you have successfully installed the DIGIEVER NVR. Congratulations! -
Page 13: Appendix
Appendix LED Indicators on Front Panel LED Color & Indicate Status LAN Link is not established Orange LAN Link is established Orange blinking LAN is being accessed Hard disk drive device is not established 1. Hard disk drive is ready to be accessed HDD1 Green 2. -
Page 14: Led Indicators At Rear Panel
LED Indicators at Rear Panel LED Position LED/State Indicate LAN Link is not established LAN1 Link/Activity Yellow LAN Link is established LAN2 (Right LED) Yellow Blinking LAN activity is occurring 10Mbps connection or no connection LAN1 Speed 100Mbps connection LAN2 (Left LED) Green 1000Mbps connection...
