- Page 1 Network Video Recorder Quick Installation Guide DS-2100 UHD Series 2.0.0.2 Information in this document is subject to change without notice. © Copyright 2019, DIGIEVER Corporation. All rights reserved.
-
Page 2: Pre-Installation Notice
Quick Installation Guide Thank you for choosing DIGIEVER NVR Network Video Recorder. The following quick guide will lead you to complete the installation and configuration of the NVR. Please read the following description carefully. Pre-installation Notice Please make sure the following items are prepared for installing DIGIEVER NVR DS-2100 UHD Series. - Page 3 Graphics Adapter AGP or PCI-Express, minimum 1024×768, 16 bit colors, 1G memory or above Note: It is highly recommended to use a graphics adaptor which provides higher than resolutions 1024 x 768 in order to experience the full benefits of the software.
-
Page 4: Package Contents
Package Contents NVR (Network Video Recorder) Power Cord Power Adapter RJ45 Network Cable Screws for 2.5” HDD Screws for 3.5” HDD Power Code Bracket Product CD... -
Page 5: Hardware Description

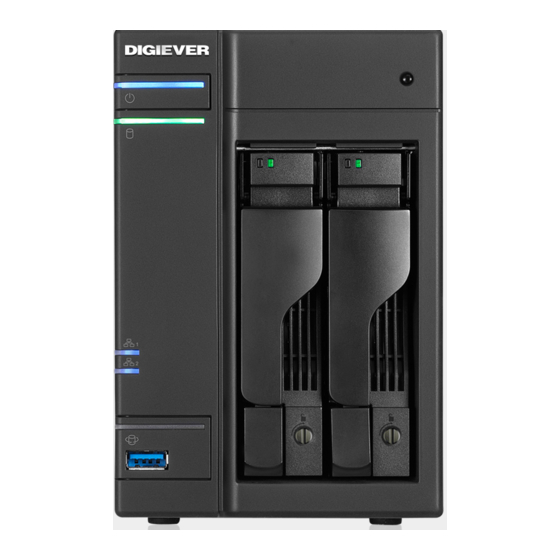

Hardware Description Front View Rear View 1. Power LED indicator 2. System LED indicators 3. HDD LED indicator 4. Network LED indicator 5. USB backup button with LED Indicator 6. USB 3.0 (Support auto video backup) 7. HDD 1 8. -
Page 6: Hard Disk Installation
Hard Disk Installation Please follow the steps as illustrated below to install the hard disk: ① Press the button on the lower portion of the hard disk tray to release the latch. ② Using the latch, gently pull the disk tray out of the disk bay. ③... - Page 7 (2) 2.5-inch hard disks and SSD hard disks: Place the hard disk into the area of the disk tray outlined in red (see picture below). Make sure that the mounting holes on the bottom of the hard disk and disk tray are lined up. Secure the drive with four screws. ④...
- Page 8 ⑥ Once the latch is secure, you can lock it by using the disk tray lock. Using a flathead screwdriver, turn the lock counterclockwise to lock the latch mechanism. Turning the lock clockwise will unlock it. Un-lock: Lock:...
-
Page 9: Securing The Power Cord
Securing the Power Cord You can use the provided cord bracket to secure the power cord in place, if you are concerned about the power cord becoming detached when the NVR is moved. ① Take the cord bracket out of the accessories box ②... - Page 10 Connection to DIGIEVER NVR Please insert the product CD-ROM on a PC to install EZ Search and S-NVR Decoder. Finally, you can start Quick Configuration on a web page. Install EZ Search for finding NVR in the network ...
- Page 11 Obtain an IP address automatically (NVR Default) Obtain an available dynamic IP address assigned by a DHCP server. If this option is selected, DIGIEVER NVR will automatically obtain an available dynamic IP address from the DHCP server once it connects to the network.
- Page 12 However, it’s recommended setting different IP address of DIGIEVER NVR if there is more than one DIGIEVER NVR in the same LAN.
- Page 13 2. Enter a user name and password Log in the NVR with the default administer account (user name: admin, password: admin). 3. Download and install NVR-Client.exe, a software application, to execute liveview monitoring and video playback.
-
Page 14: Quick Configuration
Once the five steps of Quick Configuration are complete, you can click “Start Liveview” to start monitoring. For further details of Quick Configuration, please refer to the user manual. When the live view is displayed, you have successfully installed the DIGIEVER NVR. Congratulations!
