Summary of Contents for Eaton EF-CBD130

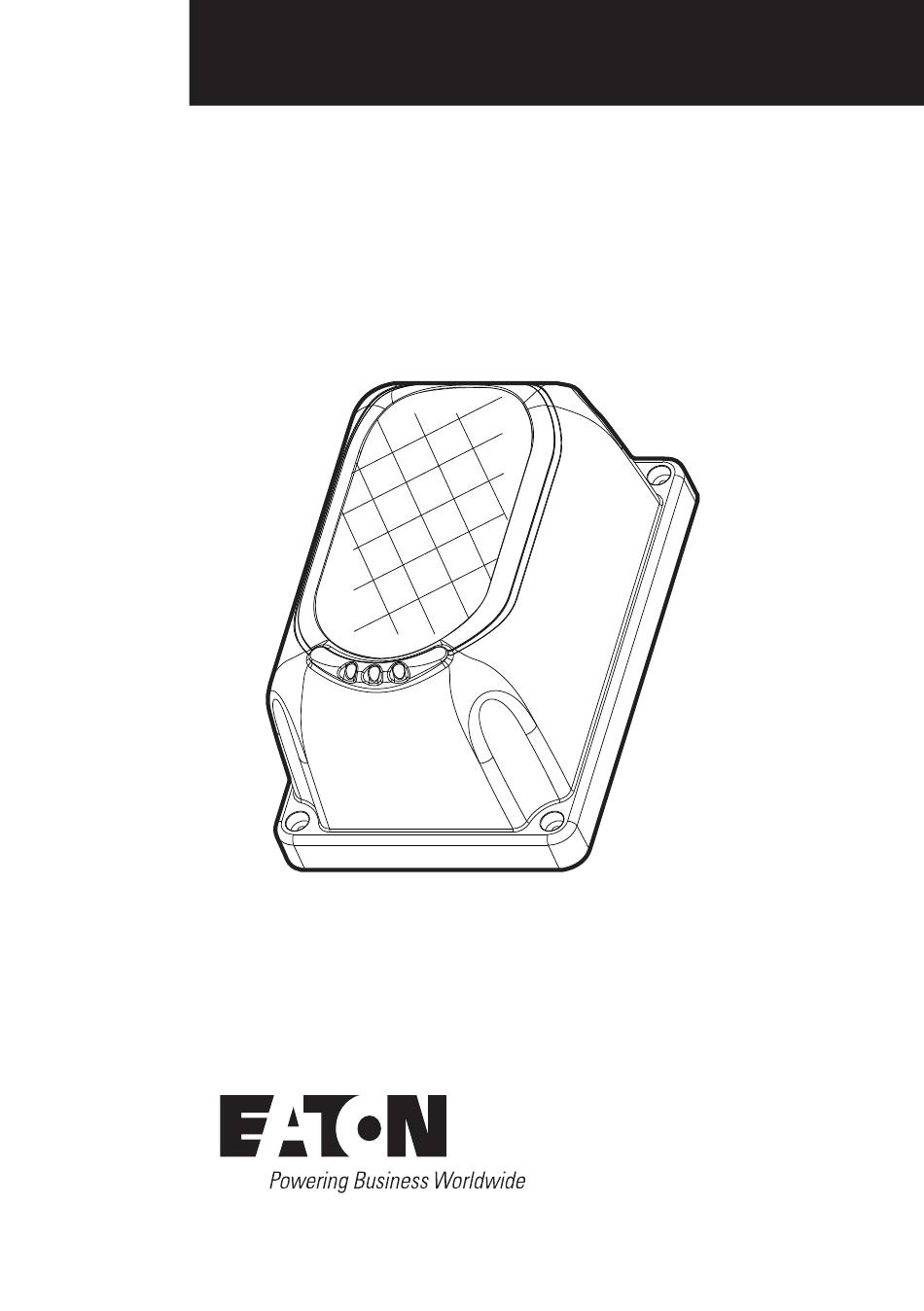

- Page 1 EF-CBD130 Conventional Reflective Beam Detector Installation and operation manual...
-
Page 2: Table Of Contents
3.4. Mounting of the Beam Detector ........9 3.5. Mounting of the EF-CBD130-R Reflector ......9 3.6. -
Page 3: Document Update Notes
Dop0506-uK Dop0506 378aa/01 Eaton Electrical Products Ltd. Llantarnam Park Cwmbran NP44 3AW EF-CBD130 2831-CPR-F4717 EF-CBD130 0832-UKCA-CPR-F1371 EN54 Part 12 Compliance EF-CBD130 Conventional Reflective Beam Detector complies with the requirements of EN 54-12:2015. InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 4: About The Ef-Cbd130
The EF-CBD130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. -
Page 5: Technical Specifications
L:190.87 x W:126.87 x H:91.96 mm / 440 gm Weight 0.130 Kg with base Environmental Operating Temperature -10°C to +50°C Ingress Protection Rating IP30 [IP66 glue seal-For permanent fixing, Not EN54-12 approved] Humidity 0 to 95% Relative Humidity, Non condensing InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -

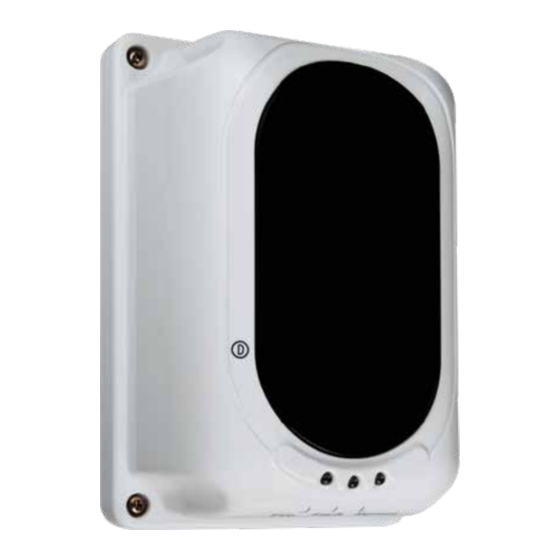

Page 6: Product Appearance
Refer to Figure 1. Fire Status Normal Status Beam Beam Re ector Re ector Detector Detector Mounting Mounting Bracket Bracket Smoke Figure 1 . Beam detector principle 2 Installation procedures InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 7: Installation Procedures
LED Indicators Colour Function Fire Illuminates when at least one fire alarm event occurs Fault Yellow Illuminates when at least one fault alarm event occurs in the detector Alignment Green Illuminates during commissioning InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 8: Mounting Preparation
Make sure that the beam path is free from obscuration caused by moving items. Below 8 meters ceiling height Above 8 meters ceiling height 0.5m min to 1m max 0.5m min Beam Detector Beam Detector Figure 3 . Installation Details InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 9: Mounting Of The Beam Detector
1. For distances between 8m and 40m one reflector is required, for distances between 40m and 100m four reflectors are required 2. Mark the position of the fixing holes 3. Fit the reflector with suitable fixings. Refer to Figure 6. InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 10: Cabling Details
122mm 244mm 100mm 200mm Figure 6 . mounting of EF-CBD130-R Reflector Reflector 3.6. Cabling Details Cables should be brought into the detector using the supplied cable gland. The maximum size of the cable which can be terminated is 1.5mm². Observe the polarity. Refer to Figure 7 . -
Page 11: Programming Sensitivity And Span
(see table below). Sensitivity Level 1 Level 2 Level 3 Span Span 1: 8~20m Span 2: 20~40m Span 3: 40~70m Span 4: 70~100m 5. Commissioning Beam Detector Figure 8 . names and location InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 12: Commissioning Preparation
1 to 8. Try to reach number eight [8] to achieve acceptable adjustment. However, for long path span number 2 or 3 is an acceptable adjustment. Make sure that the line of sight is clear between the detector and reflector. InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 13: Step 4: Finalizing Installation
Right after the Yellow LED [Fault] turns on, indicating the fault signal. [The fault alarm relay [GZ1 and GZ2] will latch to normally closed]. Refer to Figure 9. InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 14: Other Functions
The detector has functions of checking emitting, receiving and amplifying circuit. When there is fault with these three parts of circuit during operation, the detector will generate fault information. InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 15: Maintenance
The following accessories are included in the package: 1. Four reflectors. 2. One Mounting Bracket. 3. Two M4 pan head screws with washers. 4. One Opaque/Translucent Test Material. 5. One Magnetic Tool. InstallatIon anD opERatIon manual 25-17603-C March 2023 www.eaton.com... -
Page 16: Limitation Of Beam Detectors
Firetechsupport@eaton.com Eaton Electrical Products Ltd. © 2023 Eaton Llantarnam Park All Rights Reserved. Cwmbran Eaton is a registered trademark. NP44 3AW Tel: +44 (0) 1633 628500 All trademarks are property of their Fax: +44 (0) 1633 866346 respective owners. www.eaton.com www.eaton.com...
