Eaton MAP820 Technical Data

Technical Data

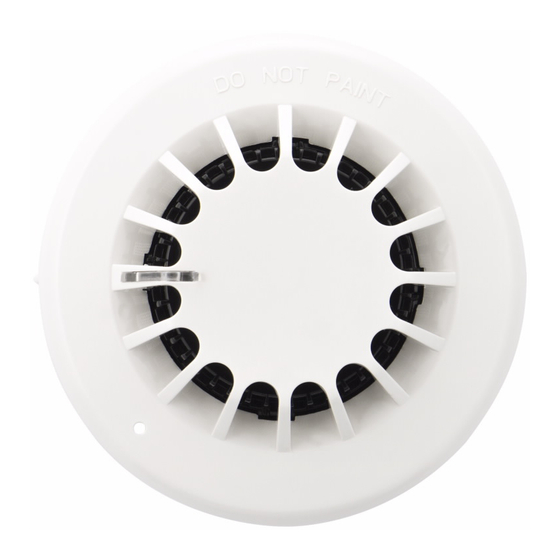

Analogue addressable detector

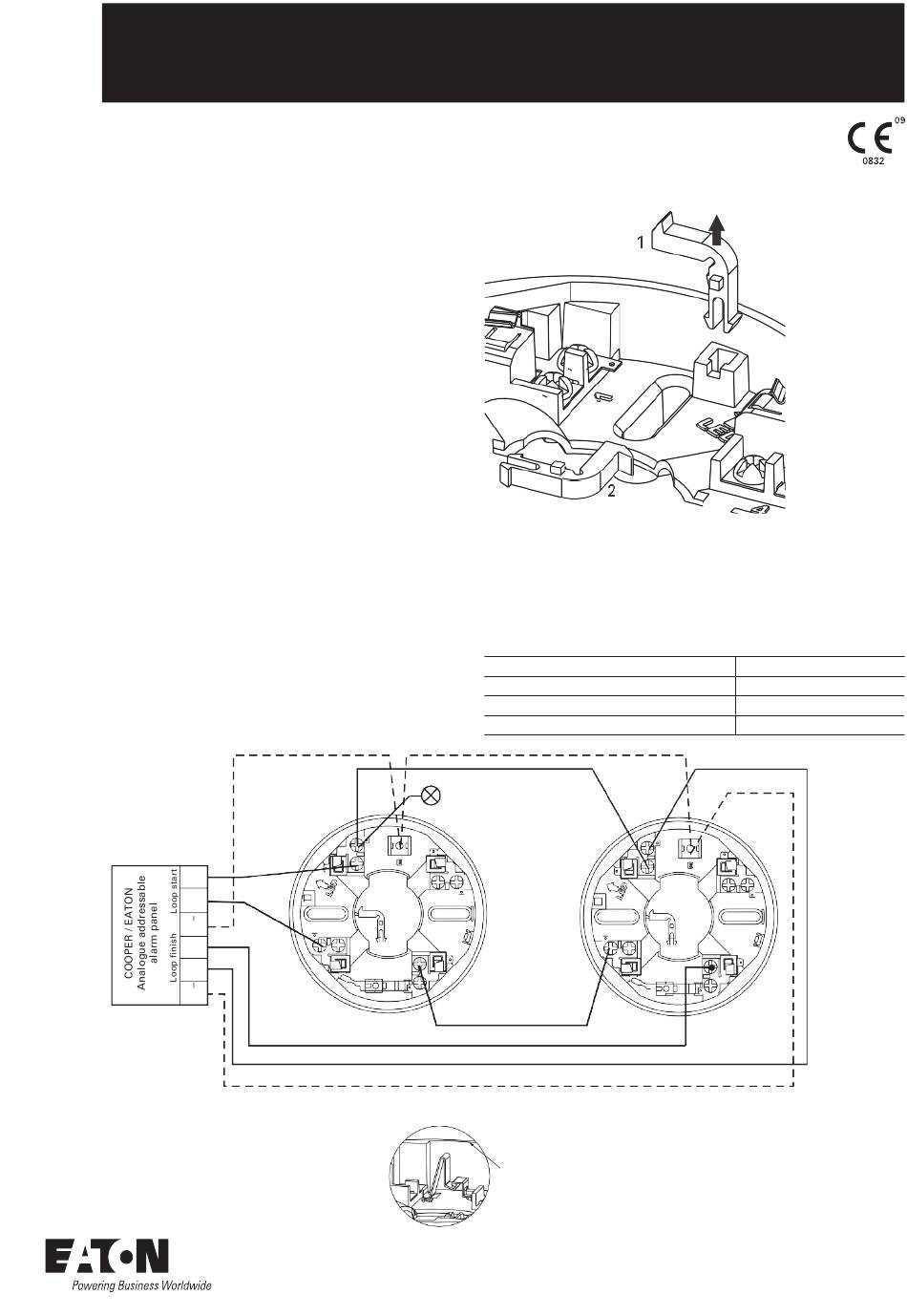

Wiring hints
Each terminal is suitable for clamping up to 2 wires
•
Clamping of 2 wires of very different diameters under one
•
screw is not recommended
DO NOT USE A POWER TERMINAL DRIVER
•
Suitable for mounting to mounting boxes with
•
50-80mm fixing centers
Utilising locking tab
The mounting base includes an optional feature to prevent the
removal of the detector without a tool.
1. Remove the standard fit retaining clip
2. Insert the locking clip which is located at the center of the
base as shown
General
If difficulty is experienced when mounting the detector, this may
be due to the following:
wiring causing an obstruction - move or shorten wires
•
Although the base is tolerant to uneven mounting surfaces,
•
a very uneven surface may cause the base to deform when
mounting screws are tightened down - loosen screws to reduce
this or slide base to a flatter position
Mount the detector onto the base as described in detector
installation (see over) and rotate fully clockwise until it
finally clicks.
Warning: do not use
high voltage testers
when detectors or
control panel are
connected to
the system.
S +
S _
_ _ _
F _
F +
_ _ _
+
+VIN
4
1
2
- VE COM IN
- VE COM OUT
Earth screen of cable to be continuous between detectors
Effective April 2018
The detector is now locked into position, remove by utilising a
suitable tool (e.g. a thin screw driver) into the hole in the
detector cover. Gently push the tool into the detector and rotate
anti- clockwise.
CAB300, MAB800, FXN720 specification
Supply Voltage
Cable Size
Mounting hole centers
Recommended cable types
Remote
indicator
LED
(optional)
3
1
Attention: If using the outer connection on terminal 2,
ensure the operation of the switch is not impeded and
that there no shorts between terminal 2 and
the switch contact.
Ensure that the cable does not short onto the contact
TeChNiCAl DATA (PR209-163-504-07) April 2018 www.eaton.com
18-30 V DC
0.5 - 2.5mm
2
50 - 80mm
FIRETUFF or FP200
4
3
2
