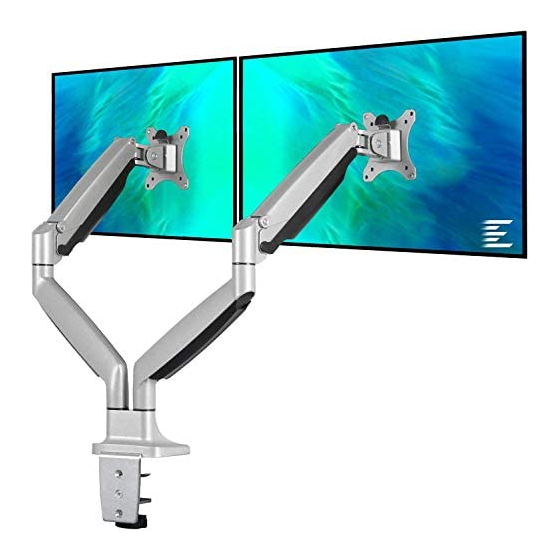

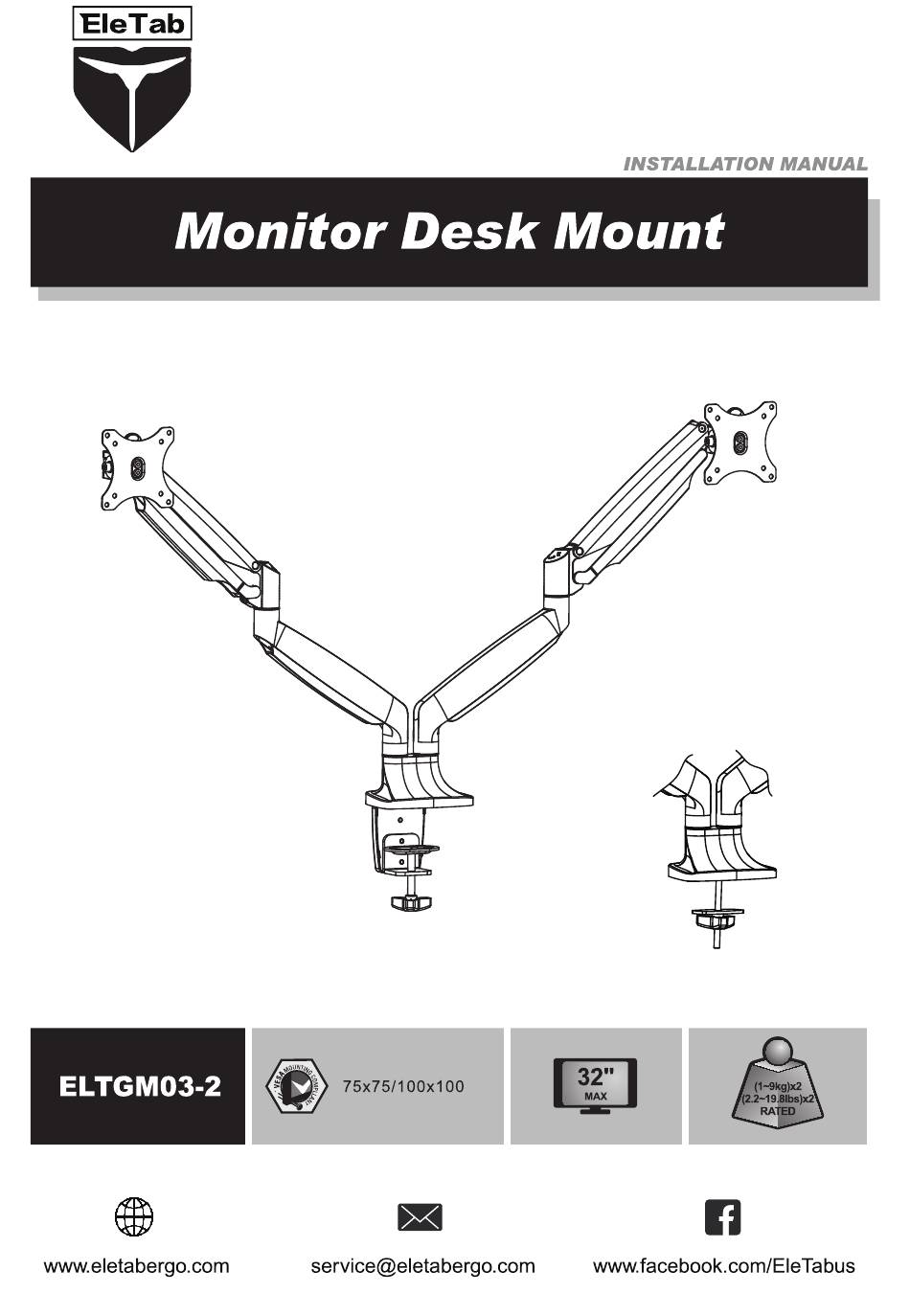

- Page 3 Read the entire instrution manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, Please service@eletabergo.com contact at for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
- Page 4 Parts Tools required L (x1) M (x1) Phillips 4mm Allen 6mm Allen Screwdriver Wrench Wrench (not included) Components A (x1) B (x2) C (x1) D (x1) E (x1) F (x1) VESA Plate Clamp Base Clamp Decorative Long Screw Support Cover G (x5) H (x1) I (x1)
- Page 5 Attach the Arm to the Desk of the arm to the base. For the Desktop with Thickness of For the Desktop with Thickness of 10-55mm 50-85mm...
- Page 6 Attach the decorative cover (E) to the clamp base support. Fit clamp to the desk and turn the plastic knob counter-clockwise to tighten the connection. Assemble the base support (H) to the base with long screw (F) and bolts (G)using 4mm Allen wrench (L). the base.
- Page 7 Insert the long screw through the hole on the desk and attach the base to the desk using the support plate (I) and the knob (J). Turn the knob counterclockwise to tighten the connection. Attach the Monitors to the Arm Attach VESA plate (B) to the monitor with washers (M-C) and screws (M-A) or (M-B) Pull the tab on the arm (A) ①...
- Page 8 Adjust the Gas Spring Tension Once the monitor is attached to the arm, use the 6mm Allen wrench(M)and turn in the appropriate direction to increase or decrease tension as necessary. Heavier monitor turns counter-clockwise. Lighter monitor turns clockwise. Adjust the tension of the gas spring until the monitor holds its position when you let it go.
- Page 9 Case 2: Monitor/Arm Pops Up (After Install Your Monitor) When the monitor is too light, turn the 6mm Allen wrench clockwise to decrease tension till the monitor can stay at the desired position. pop up Case 3: Monitor Tilts Forward If needed, tilt the monitor using the 6mm Allen wrench to your desired angle.
-
Page 10: Cable Management
Cable Management Remove the upper and bottom cable covers as shown. Route cable along the arm as shown and reattach the upper and bottom cable covers. - Page 11 Wrenches...
