Summary of Contents for eletab ELTGM04-2

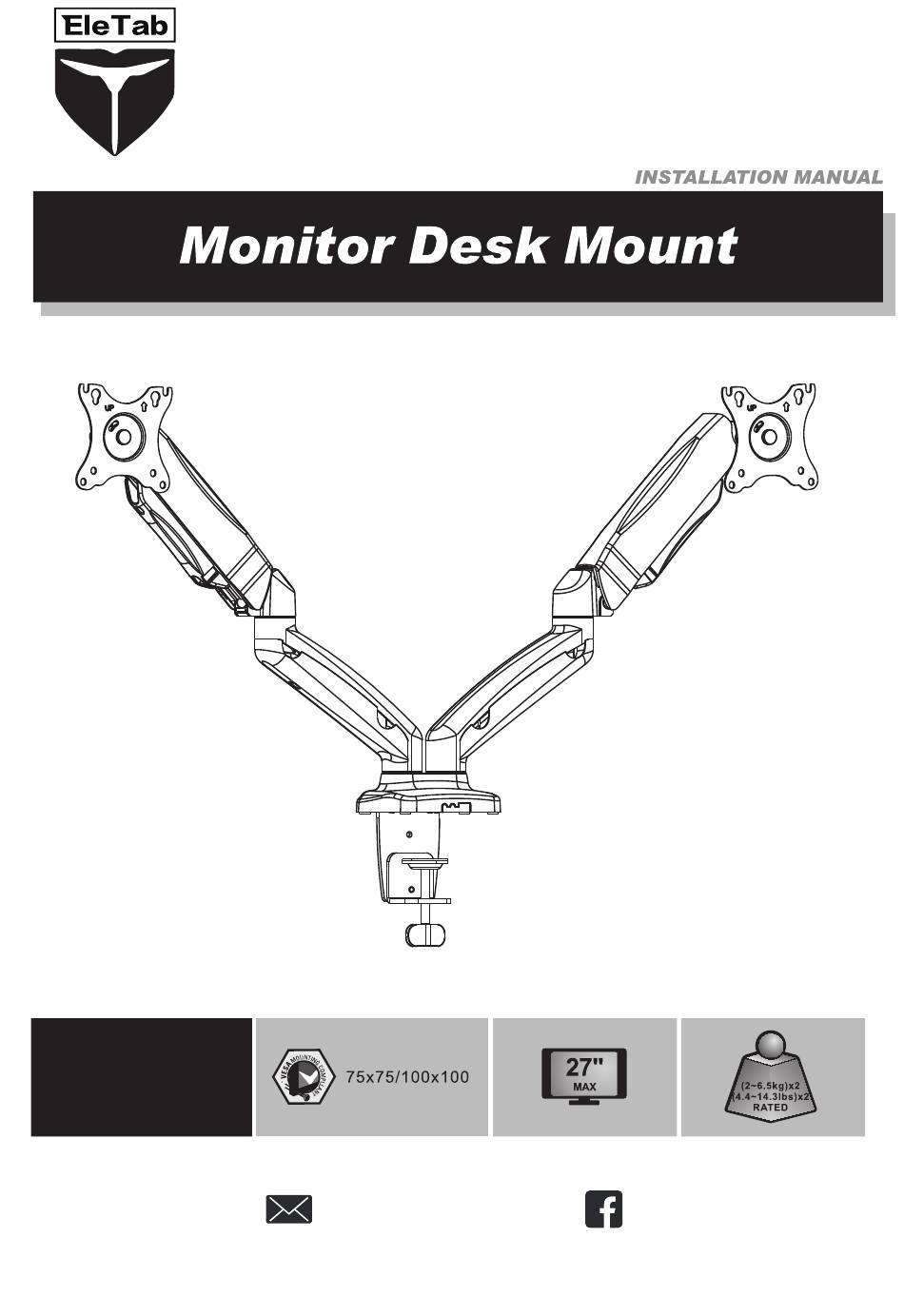

  • Page 1 ELTGM04-2 EleTab_service@outlook.com www.facebook.com/EleTabus...
  • Page 2 Read the entire instrution manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, Please contact at EleTab_service@outlook.com for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
  • Page 3: Tools Required

    Parts Tools required J (1) K (x1) Phillips 4mm Allen 5mm Allen Screwdriver Wrench Wrench (not included) Components A (x1) B (x1) C (x1) D (x2) E (x3) F (x1) Bracket Clamp M6x10mm M6x12mm Grommet Base G (x1) H (x1) I (x1) Wingnut Carriage Bolt...
  • Page 4 STEP 1 Choose a mounting option OPTION A: C-Clamp Installation Mount bracket (B) to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (J). Attach clamp (C) to bracket (B) using bolts (D) and 4mm allen key (J). Mount according to thickness of desktop as shown in diagrams.
  • Page 5 Secure stand to desktop by tightening clamp (C). STEP 1 (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, place carriage bolt (H) through the center of grommet base (F). Mount grommet base to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (J).
  • Page 6 STEP 2 Attach the monitors to the arm Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitors, making sure toleave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes.
  • Page 7: Step 3 Adjust The Tension

    STEP 3 Adjust the tension Be sure to keep the arm in horizontal Adjust gas spring tension by turning position during adjustment .0r else it screw with 5mm Allen wrench (K) . would be difficult to adjust the mount or Clockwise reduces tension, counter damage the mount.
  • Page 8: Warranty & Service

    We encourage you to write a review sharing your experierience. Should you have any issues, please don't hesitate to contact us. Scan the qr code below for more products from EleTab For further services: EleTab_service@outlook.com...
