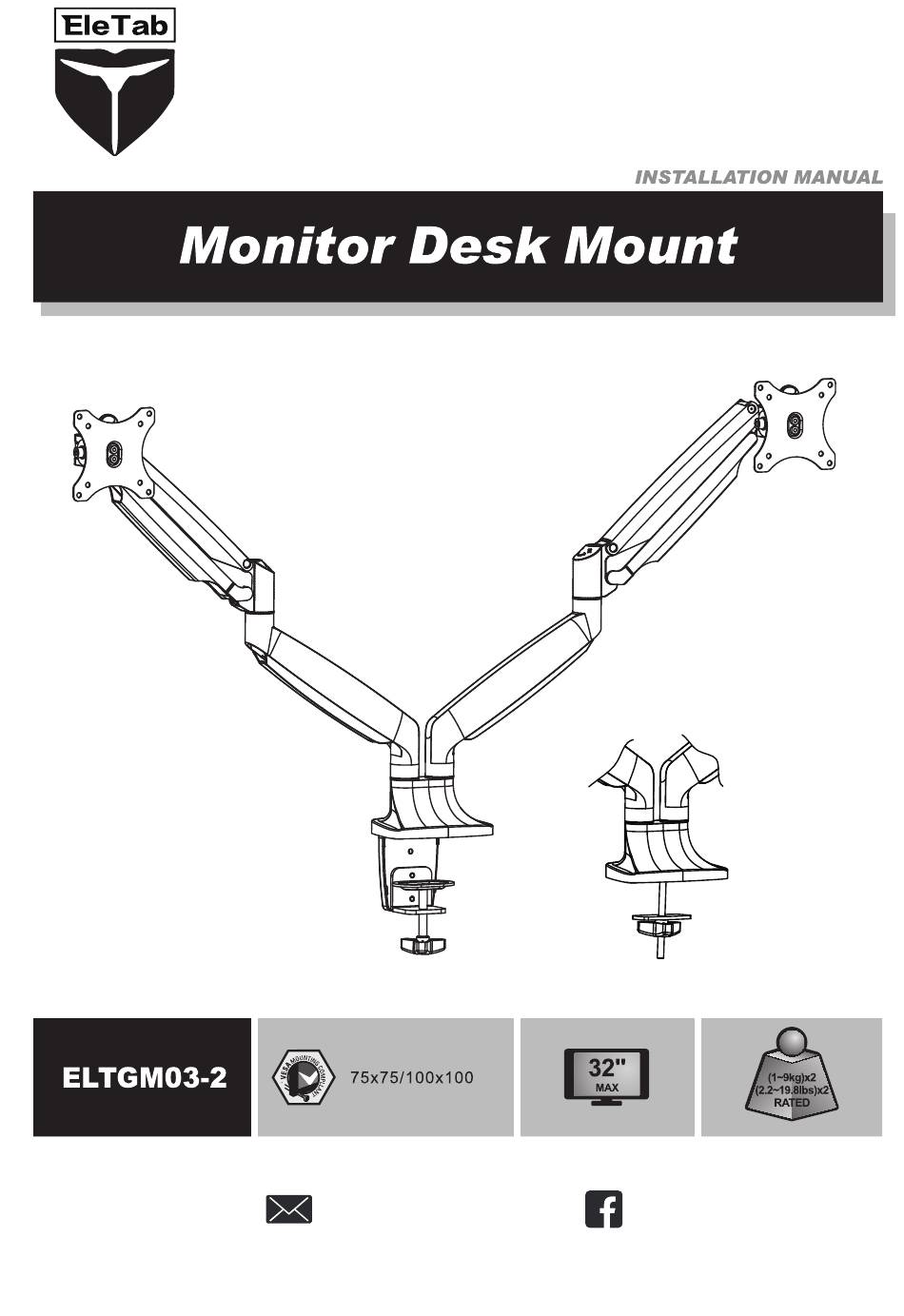

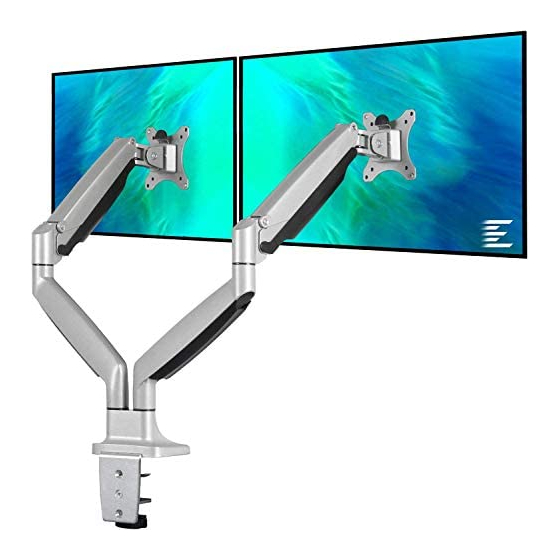

- Page 1 EleTab_service@outlook.com www.facebook.com/EleTabus...
- Page 2 Read the entire instrution manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, Please contact at EleTab_service@outlook.com for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
-
Page 3: Tools Required
Parts Tools required L (1) M (x1) Phillips 4mm Allen 6mm Allen Screwdriver Wrench Wrench (not included) Components A (x1) B (x2) C (x1) D (x1) E (x1) F (x1) G (x5) VESA Plate Clamp Base Clamp Cable Clip Long Screw Bolt Support K (x2) - Page 4 STEP 1 Choose a mounting option OPTION A: Clamp Installation Install clamp base support (C) onto base of monitor stand (A) with bolts (G) using provided 4mm Allenwrench (L). Apply pads (K) to bottom of base. Secure clamp (D) to lower two holes with Secure clamp (D) to upper two holes with bolts (G) using 4mm Allen wrench (L) for bolts (G) using 4mm Allen wrench (L) for...
- Page 5 Attach base support cover (E)to clamp base support (C). Tighten the clamp to the desktop using the plastic knob. STEP 1 (Continued) OPTION B: Grommet Base Installation Slide long screw (F) through the top of the grommet base support (H) and install on base of monitor stand with bolts (G) using 4mm Allen wrench (L).
- Page 6 STEP 2 Attach the monitors to the arm Position VESA plate (B) on back of monitor and secure with screws (M -A) or (M-B) with (M-C) washers. Pull the tab on the spring arm (A) ① and slide the VESA monitor mount and monitor into the mount on the spring arm.②...
-
Page 7: Step 3 Adjust The Tension
STEP 3 Adjust the tension Be sure to keep the arm in horizontal Adjust gas spring tension by turning position during adjustment .0r else it screw with 6mm Allen wrench (M) . would be difficult to adjust the mount or Clockwisereduces tension, counter damage the mount. -
