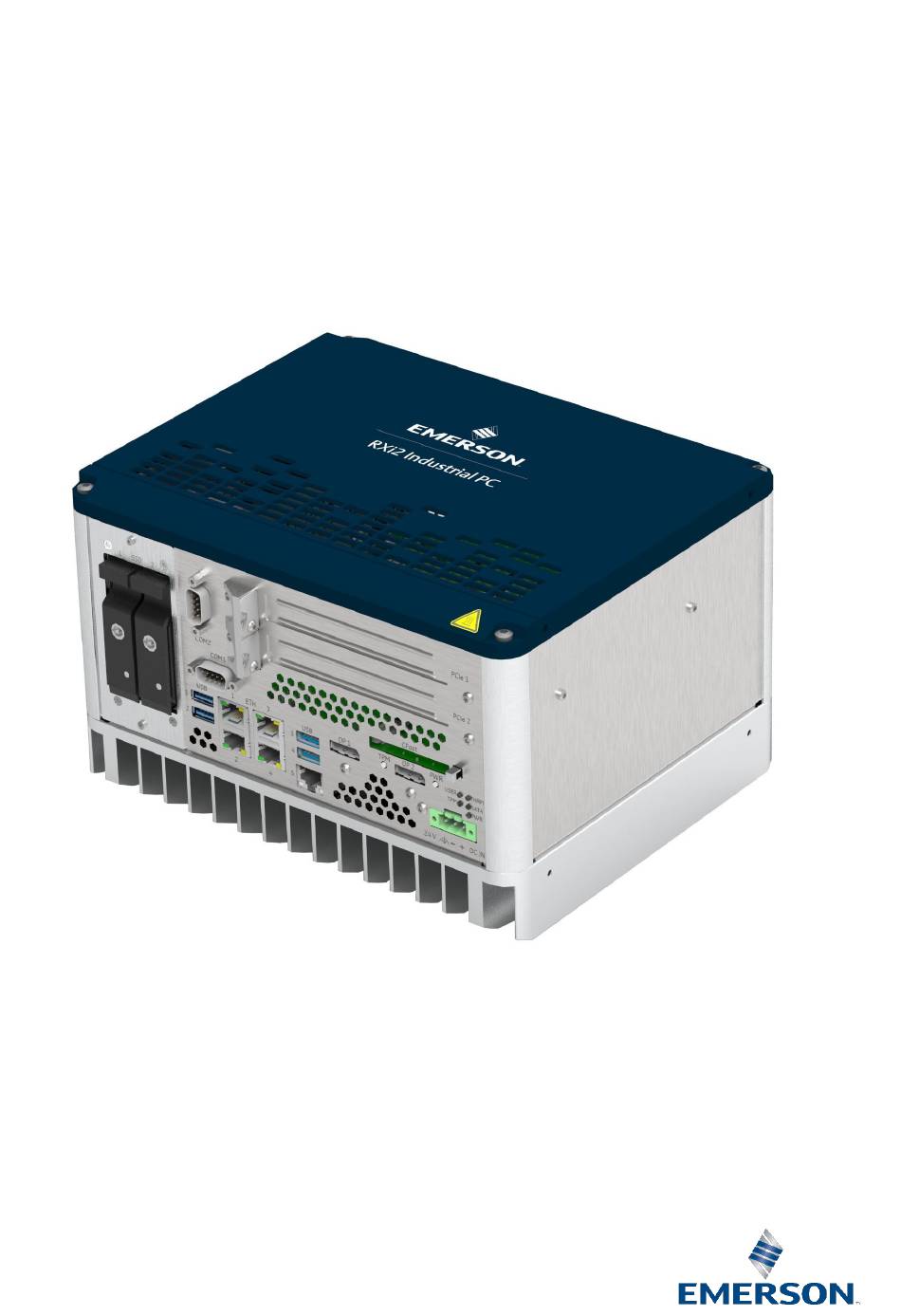

- Page 1 Hardware Reference Manual GFK-3014F Feb 2023 RXi2-EP Industrial PC (IPC)
- Page 2 Hardware Reference Manual Document HistoryList of Tables GFK-3014F Feb 2023 Document History Date Description 2023-02 Removed Slim Mounting 2021-09 UKCA Update 2021-03 Update to IEC/UL62368 2019-11 Emerson rebranding 2018-03 Initial version Document HistoryList of Tables...
- Page 3 This document is intended for trained personnel familiar with the Emerson products referenced herein. Emerson may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not provide any license whatsoever to any of these patents.
-
Page 4: Table Of Contents
Hardware Reference Manual Table of Contents GFK-3014F Feb 2023 Contents Section 1: Overview ............1 Capability and Compatibility ................. 4 Software Requirements ................. 4 Features ......................5 Section 2: Unpacking and Inspection ......7 Package Contents ................... 7 Available Options and Accessories .............. 8 ESD and EMI .................... - Page 5 Hardware Reference Manual Table of Contents GFK-3014F Feb 2023 Section 5: Hardware Interface ........33 Interface ......................35 5.1.1 Status LEDs ..................35 5.1.2 Power Button..................36 5.1.3 TPM Button ..................36 5.1.4 Ethernet Ports (Eth1, Eth2, Eth3, Eth4, Eth5) .........37 5.1.5 Ethernet LEDs ..................38 5.1.6 DisplayPort..................39 5.1.7 USB 3.0 Connectors ................40 5.1.8 Power Connectors ................41...
- Page 6 Hardware Reference Manual Table of Contents GFK-3014F Feb 2023 Appendix.A: Open Source Software (OSS) List (V0.x) ..57 Appendix.B: Acronyms and Abbreviations ...... 58 Appendix.C: Glossary ............60 General Contact Information ........... 63 Technical Support ............. 63 Table of ContentsList of Tables...
- Page 7 Hardware Reference Manual Table of List of Tables GFK-3014F Feb 2023 List of Tables Table 2-1 Delivery Volume ........................7 Table 2-2 Available Options ........................8 Table 2-3 Available Accessories......................8 Table 5-1 Status LEDs ........................... 35 Table 5-2 Ethernet Interface ........................ 37 Table 5-3 ETH1 to ETH4 LEDs ......................
- Page 8 Figure 4-25 RTC Battery (Removed Top Cover) ..................32 Figure 5-1 RXi2-EP IPC Hardware Interface Overview............... 34 Figure 5-2 RXi2-EP IPC Hardware Interface Overview (2-slot Option) ..........35 Figure 5-3 Status LEDs ........................... 35 Figure 5-4 Power Button ........................36 Figure 5-5 Ethernet Interface Ports (1–slot Option) ................
- Page 9 Storage Device Tray Screws ....................46 Figure 5-20 Insert the replacement hard drive ..................47 Figure 5-21 Insert the storage device tray .................... 47 Figure 5-22 Insert the tray ........................48 Figure 7-1 RXi2-EP Data Nameplate ..................... 55 List of Figures viii...
-
Page 10: Overview
It offers the expandability of 0, 1, 2, or 4 (mini and low profile) PCI Express (PCIe) slots and CFast storage. The RXi2-EP IPC (NextGenIPC) is composed of the following components: bCOM6L17 COM Express module based on AMD R-Series CPU •... -
Page 11: Figure 1-1 0-Slot Rxi2-Ep Ipc
Hardware Reference Manual Section 1 GFK-3014F Feb 2023 Figure 1-1 0-slot RXi2-EP IPC Figure 1-2 1-slot RXi2-EP IPC Overview... -
Page 12: Figure 1-3 2-Slot Raid Rxi2-Ep Ipc
Hardware Reference Manual Section 1 GFK-3014F Feb 2023 Figure 1-3 2-slot RAID RXi2-EP IPC Figure 1-4 4-slot RXi2-EP IPC Overview... -
Page 13: Capability And Compatibility
Section 1 GFK-3014F Feb 2023 Figure 1-5 4-slot RAID RXi2-EP IPC Capability and Compatibility The bCOM6L17 COM Express module is a fully IBM-AT compatible single board computer module containing many functions in a very small form- factor. It is based on the PICMG COM Express Module Base Specification V2.1 Type 6. -
Page 14: Features
• 5x Gig Ethernet ports (1 from module plus 4 Ethernet controller (4x • i210IT) with TimeSYNC IEEE1588 and 802.1AS Alternative 1x GigE and 4x SFP (4x i210IS) (Emerson support is • available) Mini PCIe slot (half and full size) •... -
Page 15: Figure 1-6 2-Slot Rxi2-Ep Ipc System Block Diagram
Hardware Reference Manual Section 1 GFK-3014F Feb 2023 Figure 1-6 2–slot RXi2-EP IPC System Block Diagram Overview... -
Page 16: Unpacking And Inspection
Unpacking and Inspection WARNING If the RXi2-EP IPC operates at an enhanced ambient temperature up to 65°C (149 ° F), the surface of the enclosure, especially the heatsink, can reach a temperature of 85°C (185 °F) and above and presents a burn hazard. Be careful to not touch the RXi2-EP IPC with bare fingers. -
Page 17: Available Options And Accessories
For the most current information on options and accessories, go to https://www.emerson.com/en-us/where-to-buy?w=2&c=180&r=500&p=1&l=4&v=c to find the nearest Emerson sales or service office, or an authorized Emerson sales representative. Options are subject to change without notice. ESD and EMI Electrostatic Discharge (ESD) is the discharge of static electricity. - Page 18 Hardware Reference Manual Section 2 GFK-3014F Feb 2023 for possible problems and in some cases show compliance to local regulations as required in his country or by the intended application. ESD is a major cause of electronic component failure. The component has been packed in a static-safe bag to protect it from ESD while it is in the bag.
-
Page 19: Unpack And Inspect
If evidence of damage or rough handling is found (usually in the form of bent component leads or loose socketed components), notify the shipping service as soon as possible and contact Emerson for additional instructions. Depending on the severity of the damage, it may be necessary to return the product to the factory for repair. -
Page 20: Handling
Handling WARNING If the RXi2-EP IPC operates at an enhanced ambient temperature up to 65°C (149 ° F), the surface of the enclosure, especially the heatsink, can reach a temperature of 85°C (185 °F) and above and presents a burn hazard. Be careful to not touch the RXi2-EP IPC with bare fingers. -
Page 21: Mounting
Hardware Reference Manual Section 3 GFK-3014F Feb 2023 Section 3: Mounting RXi2-EP IPC cooling is designed for an upright, wall-mounted orientation. There are two possible mounting options: Wall mounting with mounting plates • Wall mounting through wall • For the best results of heat dissipation, observe the minimum clearances for wall mounting as illustrated in the following figure. -
Page 22: Wall Mounting With Mounting Plates
Hardware Reference Manual Section 3 GFK-3014F Feb 2023 Wall Mounting with Mounting Plates The screws selected for use depends on the nature of the wall. The mounting plates have four holes with a diameter of 5.3 mm (0.209 in), so the maximum screw diameter cannot be more than 5.2 mm (0.205 in). -
Page 23: Wall Mounting Through Wall
Hardware Reference Manual Section 3 GFK-3014F Feb 2023 Wall Mounting Through Wall To mount the IPC with screws from the wall side, drill holes in the wall to match the holes on the IPC. The holes should be 6.4-6.6 mm (0.25 in) for snug to medium fit and 7.0 mm (0.28 in) for a loose fit. -
Page 24: Installation And Startup
Verify that the jumpers (if any) are correctly configured for your • application. Make sure the RXi2-EP IPC is properly mounted. • Connect all I/O cables. • Do not restore power until all components are fitted correctly into the •... -
Page 25: Required Materials
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 Required Materials The following items are required to start the RXi2-EP IPC in a standard configuration: Power supply • Keyboard and mouse • Video monitor • 4.2.1 Power Supply WARNING Verify that the power supply is turned off while installing boards or modules into the RXi2- EP IPC. -
Page 26: Power-On Self-Test (Post)
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 Power-On Self-Test (POST) Each time the computer boots up it must pass the POST. If the computer does not pass any of the test items, the unit will fail the POST. Test items are as follows: CPU must exit the reset status mode and thereafter be able to •... -
Page 27: Installation Procedures
Installation Procedures 4.5.1 PCIe Board Installation Install a PCIe board into the RXi2-EP IPC using the following procedure. To install the PCIe board WARNING Verify that the power supply is turned off while installing boards or modules into the RXi2- EP IPC. -
Page 28: Figure 4-2 Pcie Support Bracket Screws
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 2. Remove the four PCIe support bracket screws (Tx10). Figure 4-2 PCIe Support Bracket Screws 3. Remove the PCIe support bracket. Figure 4-3 Removed PCIe Support Bracket and Screws Hardware Interface... -
Page 29: Figure 4-4 Removed Pcie Slot Cover
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 4. Remove the PCIe slot cover. Figure 4-4 Removed PCIe Slot Cover 5. Insert the PCIe board bracket into the slot. Figure 4-5 PCIe Board Bracket Inserted into Slot Hardware Interface... -
Page 30: Figure 4-6 Pcie Board Bracket Inserted Into Pcie Connector
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 6. Insert the PCIe board bracket into the PCIe connector at the riser board. Ensure that the board fits properly into the connector and is well connected. Figure 4-6 PCIe Board Bracket Inserted into PCIe Connector 7. -
Page 31: Figure 4-8 Reattached Pcie Bracket Screws
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 8. Reattach the four PCIe support bracket screws (Tx10 [0.6 Nm/5.3 in lb]). Figure 4-8 Reattached PCIe Bracket Screws 9. Adjust the card holder. Figure 4-9 Card Holder Adjustment Hardware Interface... -
Page 32: Mini Pcie Add-On Board Installation
The information described in this section applies to service technician only. The Mini PCIe (mPCIe) board is connected to the RXi2-EP IPC by inserting the board into either a full size slot or a half size slot, depending on the size of the mPCIe board you are inserting. -
Page 33: Figure 4-11 Short Position For Mpcie Bracket
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 1. Adjust the mPCIe bracket position to match the mPCIe board being inserted (Tx8 [0.6 Nm/5.3 in lb]). Figure 4-11 Short Position for mPCIe Bracket Figure 4-12 Long Position for mPCIe Bracket Hardware Interface... -
Page 34: Figure 4-13 Mpcie Board Inserted
Figure 4-13 mPCIe Board Inserted 3. Mount the mPCIe board into the connector slot using standard screws (Tx8 [0.6 Nm/5.3 in lb]) screw: ISO14583 M2.5 x 6 or M2.5 x 5. Figure 4-14 mPCIe Board Mounted to RXi2-EP IPC Hardware Interface... -
Page 35: Sim Card Interface Installation
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 4.5.3 SIM Card Interface Installation Important when installing plug-in cards with wireless transmission capabilities, such as a cellular modem or WiFi adapters, the user is responsible for updating CE, FCC, and any other required certifications of the final unit. WARNING Verify that the power supply is turned off while installing boards or modules into the RXi2- EP IPC. -
Page 36: Figure 4-17 Inserted Sim Card
Hardware Reference Manual Section 4 GFK-3014F Feb 2023 3. Insert the SIM card. Figure 4-17 Inserted SIM card 4. Lock the SIM card into position by moving the upper part in the LOCK ← direction (as shown on the part). Figure 4-18 SIM Card Holder Closed and Locked Hardware Interface... -
Page 37: M.2 A-Key Add-On Board Installation
M.2 A-Key Add-on Board Installation Important The information described in this section applies to service technician only. The M.2 board is connected to the RXi2-EP IPC by inserting the board with a form factor of 2230. WARNING Verify that the power supply is turned off while installing boards or modules into the RXi2- EP IPC. -
Page 38: Figure 4-21 M.2 A-Key Mounted To Rxi2-Ep Ipc
GFK-3014F Feb 2023 2. Mount the M.2 A-Key board into the connector slot using standard screws (Tx8 [0.45 Nm/5 in lb]) screw: ISO14583 M2.5 x 6 or M2.5 x 5. Figure 4-21 M.2 A-Key Mounted to RXi2-EP IPC Hardware Interface... -
Page 39: M.2 M-Key Add-On Board Installation
M.2 M-Key Add-on Board Installation Important The information described in this section applies to service technician only. The M.2 board is connected to the RXi2-EP IPC by inserting the board with a with form factor of 2242, 2260, 2280 or 22110. WARNING Verify that the power supply is turned off while installing boards or modules into the RXi2- EP IPC. -
Page 40: Initial Startup
[F2] key during the startup sequence. Adhere to the applicable on- screen messages when prompted. Note: If the RXi2-EP IPC does not perform as described, some damage may have occurred during shipment or the board is not installed or configured properly. Contact Emerson for technical support. (Refer to the section Contact Information.) -
Page 41: Rtc Battery Replacement
The information described in this section applies to service technician only. 1. Remove power from the RXi2-EP IPC. 2. Loosen the four captive screws on the RXi2-EP IPC’s top cover and remove it. Figure 4-25 RTC Battery (Removed Top Cover) 3. -
Page 42: Hardware Interface
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 Section 5: Hardware Interface This chapter describes the hardware interface used in the RXi2-EP IPC. The following diagram provides an overview of the way the hardware interface is used. Hardware Interface... -
Page 43: Figure 5-1 Rxi2-Ep Ipc Hardware Interface Overview
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 Figure 5-1 RXi2-EP IPC Hardware Interface Overview Installation and Startup... -
Page 44: Interface
RXi2-EP IPC Hardware Interface Overview (2-slot Option) 5.1.1 Status LEDs The RXi2-EP IPC contains a set of status LEDs to indicate various functions. The CEC09 provides LEDs on the front panel, in a location near the power connector and power button. -
Page 45: Power Button
GFK-3014F Feb 2023 5.1.2 Power Button The Power button powers on the RXi2-EP IPC. It is located on the front panel. A small tool may be needed to use the button. Figure 5-4 Power Button Pressing (short push) the power button triggers the operating system to shut down (Power State S5). -
Page 46: Ethernet Ports (Eth1, Eth2, Eth3, Eth4, Eth5)
5.1.4 Ethernet Ports (Eth1, Eth2, Eth3, Eth4, Eth5) Five Ethernet interface ports are available on the RXi2-EP IPC. They are located on the front panel. Ethernet interface requires the use of a CAT 3 cable or higher for proper operation with 10baseT and a CAT 5 cable of higher for proper operation with 100/1000BaseT. -
Page 47: Ethernet Leds
#GBEx_ACT Yellow Blinking = Activity ongoing Table 5-4 ETH5 LEDs LED on RJ–45 Jack LED Status Indication #GBE5_LINK Solid = Any LINK Yellow #GBE5_ACT Blinking = ACTIVITY #GBE5_LINK100 LINK100 Orange #GBE5_LINK1000 Green LINK1000 Figure 5-7 RXi2-EP IPC GBE Hardware Interface... -
Page 48: Displayport
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 5.1.6 DisplayPort A DisplayPort (DP1 and DP2) interface provides signals for connecting either a suitable monitor or an adaptor to several other display standards. Figure 5-8 DisplayPort Interface Ports (2–slot Option) Table 5-5 DisplayPort Interface Signals Signal Name TxD0+/-... -
Page 49: Usb 3.0 Connectors
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 5.1.7 USB 3.0 Connectors Four USB channels are available at standard USB Type A connectors. Each pair of them has a 2A fuse, but normal operation does not exceed 0.9 A per connector. Figure 5-9 USB 3.0 Connectors Table 5-6... -
Page 50: Power Connectors
The power input is secured with one 10 A blow fuse. If the input power exceeds the • limits, the fuse will be blown to protect all circuitry within the RXi2-EP IPC. Contact Emerson for a suitable replacement. 5.1.9 Internal SATA Connector One M.2 M-Key (PCIe 4x and SATA) with sizes 2242, 2260, 2280 and 22110... -
Page 51: 10Cfast Connector
5.1.10 CFast Connector Located on the front of the RXi2-EP IPC is a CFast Type 1 flash connector. CFast is a variant of a CompactFlash that supports a higher maximum transfer rate than current CompactFlash cards. Standard CFast cards can be used for storage of data or the operating system. -
Page 52: Table 5-9 Serial Ports
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 Table 5-9 Serial Ports Signal Name RS–232 Pin RS–422 / RS–485 Pin Figure 5-14 Pin Assignment For RS–422 and RS–485-4 wire modes, connect the corresponding RX+/- with the TX+/- of the counterpart and vice versa. For RS–485-2 wire mode connect RX+ and TX+ together with the + line of the cable and the RX- and the TX- together with the –... -
Page 53: 12Sata 2.5 Inch Drive Tray Replacement
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 5.1.12 SATA 2.5 inch Drive Tray Replacement Two additional 2.5 inch storage devices are available for use with the SATA riser board or the RAID option. The 2.5 inch hard disk trays (located in the front of the unit) can be used as SSD or rotating devices. -
Page 54: Figure 5-16 Removing Storage Device Tray From Mounted Position
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 2. Insert your finger under the handle and carefully remove the storage device tray from the mounted position. Figure 5-16 Removing Storage Device Tray from Mounted Position 3. Pull down until the device tray is as fully open as possible. Figure 5-17 Storage Device Tray Fully Open Position Hardware Interface... -
Page 55: Figure 5-18 Removal Of Storage Device Tray
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 4. Remove the hard disk tray completely from the unit. Figure 5-18 Removal of Storage Device Tray 5. Unscrew the four mounting screws and remove the hard drive from the tray. Figure 5-19 Storage Device Tray Screws Hardware Interface... -
Page 56: Figure 5-20 Insert The Replacement Hard Drive
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 6. Insert the replacement hard drive and screw in the four mounting screws to mount it. Figure 5-20 Insert the replacement hard drive 7. Insert the storage device tray ~25.4 mm (1 in) (maximum) into the slot, move it to the right side until the nose is between the guidance mark of the tray, then push it carefully into the slot. -
Page 57: Figure 5-22 Insert The Tray
Hardware Reference Manual Section 5 GFK-3014F Feb 2023 8. Insert the tray until it is fully and firmly seated. Figure 5-22 Insert the tray Note: You can lock each SSD tray using the provided key. Hardware Interface... -
Page 58: Additional Devices
The RXi2-EP IPC is capable of Non-Volatile Random Access Memory (NVSRAM) as a mPCIe board add-in option that is automatically backed up when the RXi2-EP IPC is switched off or loses power. NVSRAM does not use or require a battery. Contact Emerson for assistance in accessing NVSRAM. -
Page 59: Devices
Hardware Reference Manual Section 6 GFK-3014F Feb 2023 Section 6: Hardware and Firmware Programmable Devices This chapter describes the hardware and firmware programmable devices of the CEC09 carrier board and the bCOM6L17 module. SMBUS Devices Table 6-1 SMBus Devices Address Device Function Clock Buffer 8x... -
Page 60: Pcie Ports
Hardware Reference Manual Section 6 GFK-3014F Feb 2023 PCIe Ports The PCIe ports are provided by the COMe module. The PCIe allocation is provided in the following table. Table 6-3 PCI Routing Device (GPU Function Connected to Vendor Bus/Dev/Func Dependent) bCOM6L17 Host Bridge Internal... - Page 61 Hardware Reference Manual Section 6 GFK-3014F Feb 2023 Device (GPU Function Connected to Vendor Bus/Dev/Func Dependent) CEC09 Riser slot — — — 1/0/0 Ethernet #1 Front 8086 1531 5/0/0 Ethernet #2 Front 8086 1531 6/0/0 Ethernet #3 Front 8086 1531 7/0/0 Ethernet #4 Front...
-
Page 62: Specifications
EP IPC. Power Consumption WARNING The RXI2-EP industrial PC power supply must meet the requirements for SELV (safety extra- low voltage)/LPS (limited power source) or ES1/PS2. L'alimentation pour PC industriel RXI2-EP doit répondre aux exigences SELV (très basse tension de sécurité)/LPS (source de puissance limitée) ou ES1/PS2. -
Page 63: Power Budget For Add-On Devices
20 W maximum for all two/four boards together. Environmental Specifications 7.2.1 Ambient Temperatures and Humidity Ambient temperatures and humidity values for the RXi2-EP IPC are provided in the following table. Table 7-3 Temperature Specifications Item... -
Page 64: Altitude
2,000 m (6,560 ft), depending on the level. This is with reference to temperature ranges of air-cooled versions. Note: Emerson can assist the user in planning operation outside this altitude range upon request. Maximum altitude for the RXi2–EP IPC is specified in the following table. Table 7-5... -
Page 65: Battery
6uA. Depending on the operating hours and temperature, the estimated battery life is 2 to 10 years. Battery current is not used when the RXi2-EP IPC is supplied with 24 V. Technical Specification... -
Page 66: Appendix.a: Open Source Software (Oss) List (V0.X)
In accordance with certain software license terms, Emerson provides the following software package installations. This code is provided on an as-is basis, and Emerson makes no representations or warranties for the use of this code independent of any Emerson provided software or services. -
Page 67: Appendix.b: Acronyms And Abbreviations
Hardware Reference Manual Appendix B GFK-3014F Feb 2023 Appendix.B: Acronyms and Abbreviations ACPI Advanced Configuration and Power Interface Accelerated Processing Unit Advanced Micro Devices BIOS Basic Input Output System Computer-on-module Display Data Control Digital Display Interface DisplayPort DRAM Dynamic Random Access Memory Digital Visual Interface Error Correction Code Embedded DisplayPort... - Page 68 Hardware Reference Manual Appendix B GFK-3014F Feb 2023 System Management Interrupt Serial Presence Detect Serial Peripheral Interface Solid State Drive Time Division Multiplex Thermal Design Power Trusted Platform Module TMDS Transition Minimized Differential Signaling UART Universal Asynchronous Receiver Transmitter UEFI Universal Extensible Firmware Interface Universal Serial Bus Video Graphics Adapter...
-
Page 69: Appendix.c: Glossary
Conformité Européenne (European conformity) CCTV Closed Circuit Television Courier font Text in Courier font indicates a command entry or output from a Emerson embedded PC product using the built-in character set. CTDP Configurable TDP (Thermal Design Power) CVBS Composite Video Baseband Signal... - Page 70 Hardware Reference Manual Appendix C GFK-3014F Feb 2023 Gigabit Gigabit Ethernet Giga Transfers I/O HDCP High-bandwidth Digital Content Protection Hexadecimal values (base 16) Represented as digits followed by ʹhʹ (for example: 0Ch). Hexadecimal values (base 16) Represented as digits preceded by ʹHʹ (for example: H0C).
- Page 71 Hardware Reference Manual Appendix C GFK-3014F Feb 2023 Read Only Memory, a legacy term often the device referred to as a ROM can actually be written to, in a special mode. Such writable ROMs are sometimes called Flash ROMs. UEFI Firmware is stored in ROM or Flash ROM.
-
Page 72: General Contact Information
Emerson product remains solely with the purchaser. © 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners.
