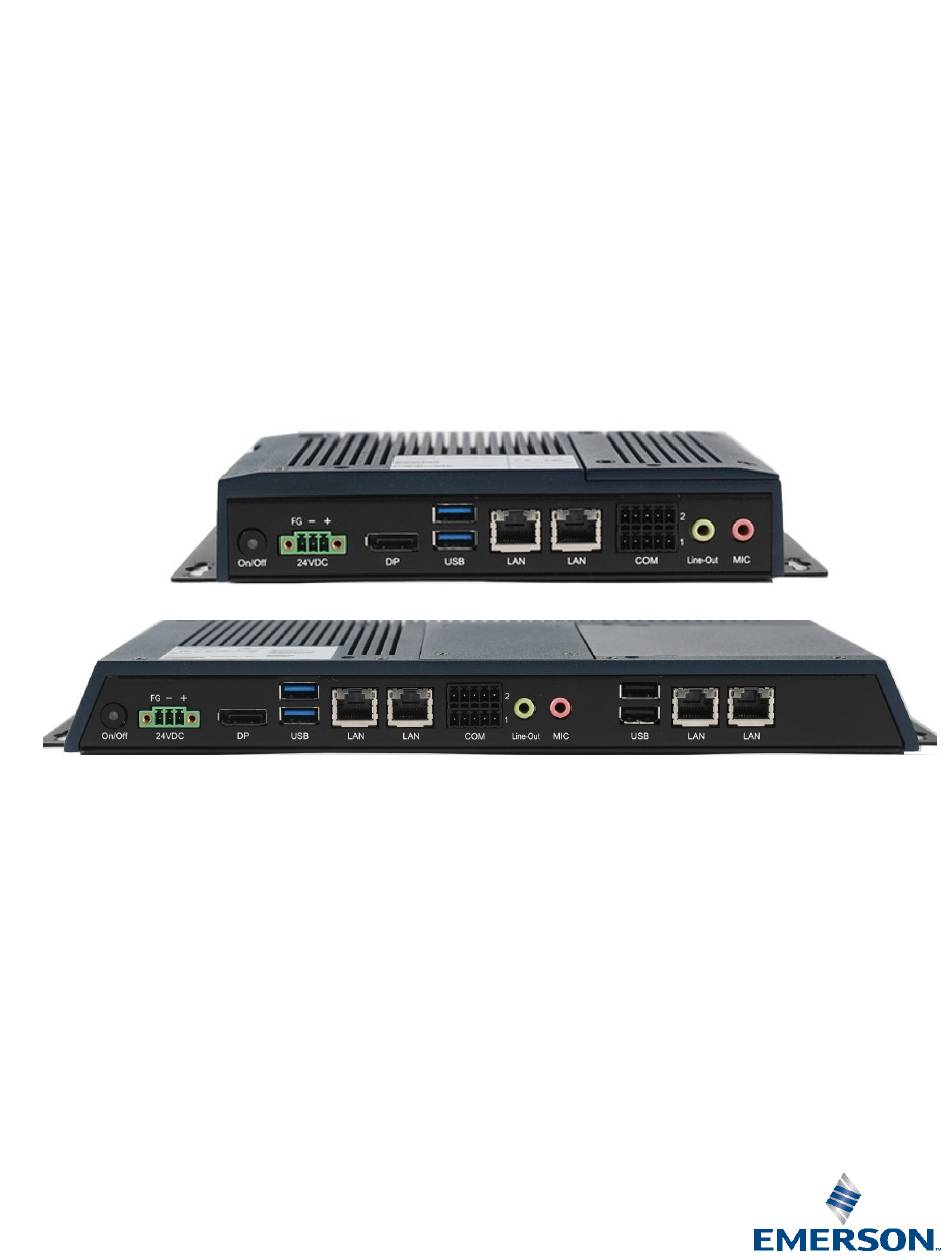

- Page 1 Quick Start Guide GFK-3074E Nov 2020 RXi2 – LP Industrial PC QUICK START GUIDE...
- Page 2 It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.
-
Page 3: Table Of Contents
Panel Mount Dimensions (using Included Mounting Bracket) ........4 DIN Rail Mounting Dimensions (Using Included Mounting Bracket) ......5 DIN Rail Mounting Installation ..................6 Minimum Clearances for DIN Rail Mounting ..............7 GFK-3074 - RXi2 - LP Industrial PC Quick Start Guide GFK-3074E... -
Page 4: Physical Connection Overview
Be sure to connect a DC power cord to this 3-pin power connector. Using a voltage out of the range may fail to boot the system or cause damage to the system board. Serial Ports (UART) Function RS232 RS485 GFK-3074 - RXi2 - LP Industrial PC Quick Start Guide GFK-3074E... -
Page 5: Pacedge Startup
5. Note: all Ethernet ports are also configured to get IP addresses assigned by an available DHCP server on the network. This dynamically assigned IP address can also be used to access PACEdge. GFK-3074 - RXi2 - LP Industrial PC Quick Start Guide GFK-3074E... -
Page 6: First Login
Start exploring the examples or create your own flows and dashboards. Consult the PACEdge User Manual (GFK-3178) for example details. Important: Please consult the PACEdge Secure Deployment Guide (GFK-3197) for recommended password changes and other Cyber Security relevant settings. GFK-3074 - RXi2 - LP Industrial PC Quick Start Guide GFK-3074E... -
Page 7: Mounting Information
Mounting Information Panel Mount Dimensions (Includes Mounting Bracket) All RXi2 – LP Industrial PC units ship with the wall mount bracket attached to the CPU base. Figure 4: Panel Mount Dimensions (Small Box / Dual-Core) (mm) Figure 5: Panel Mount Dimensions (Large Box/ Quad-Core) (mm) -
Page 8: Din Rail Mounting Dimensions (Using Included Mounting Bracket)
DIN Rail Mounting Dimensions (Includes Mounting Bracket) Figure 6: DIN Rail Mounting Dimensions GFK-3074 - RXi2 - LP Industrial PC Quick Start Guide GFK-3074E... -
Page 9: Din Rail Mounting Installation
DIN Rail Mounting Installation If installing the Small Box/Dual-Core RXi2-LP with the optional DIN rail mount system that came pre-installed: 1. Hook the DIN rail bracket to the DIN rail. (Item 1, Figure 6) 2. Push the bottom face of the IPC until the module clicks into place. (Item 2, Figure 6). -
Page 10: Minimum Clearances For Din Rail Mounting
Any deviation in requested clearance will result in reduced thermal performance and must be evaluated by the customer as a final setup. Figure 8: Minimum Clearances to Meet Operational Temperature Specification GFK-3074 - RXi2 - LP Industrial PC Quick Start Guide GFK-3074E... - Page 11 Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice.
