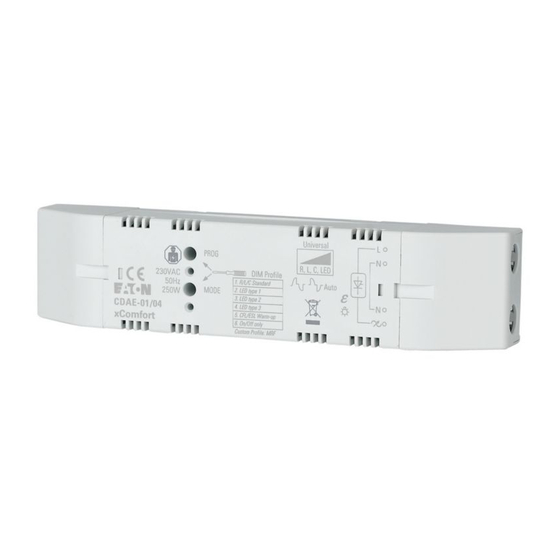

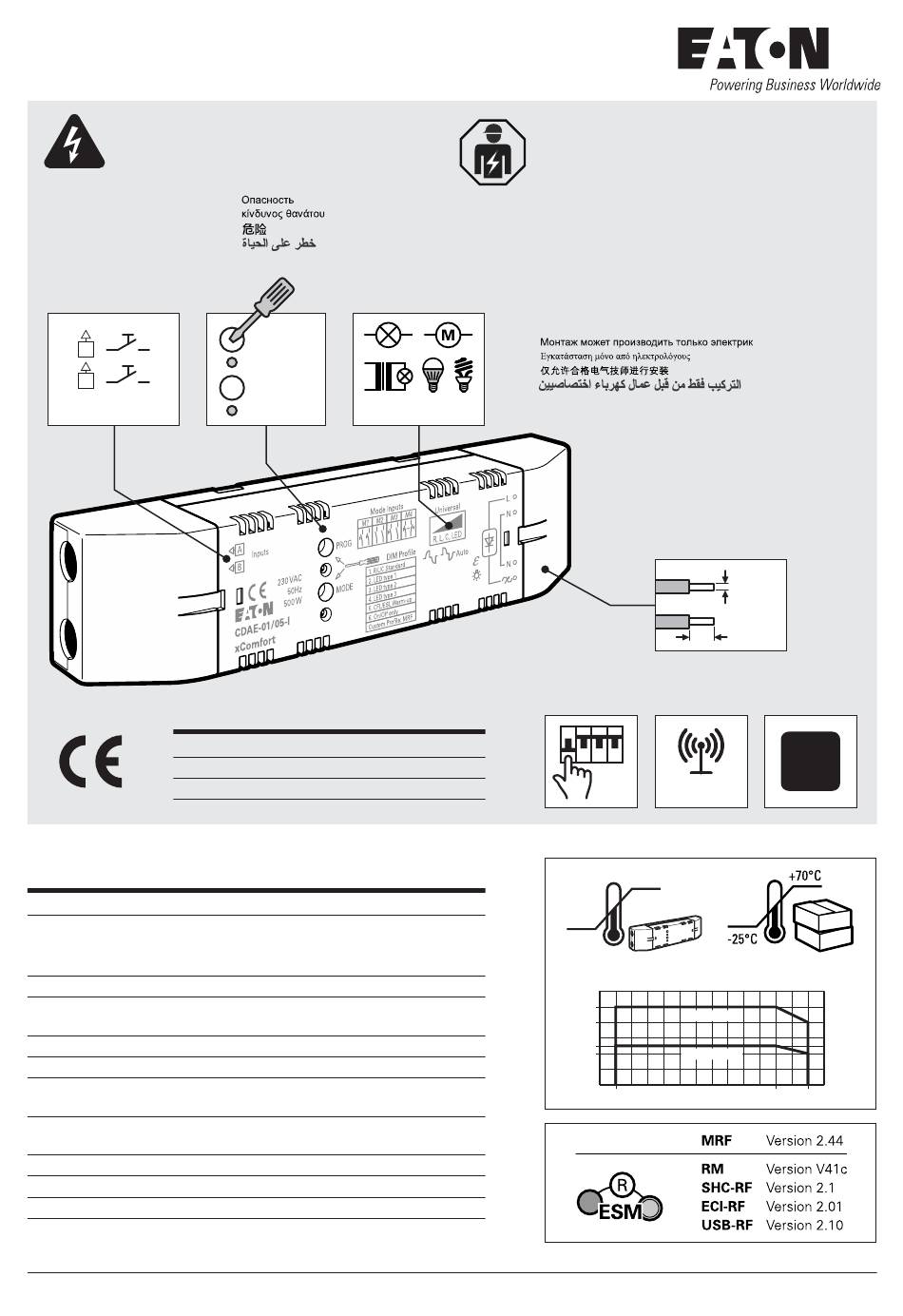

Smart Dimming Actuator
CDAE-01/04, CDAE-01/05-I, CDAE-01/05-E
Danger
Lebensgefahr
Danger de mort
Nebezpečí
Nebezpečenstvo
Fare
Peligro
Életveszély
Pericolo di morte
Fare
Levensgevaar
A
B
Local input
Actuator
CDAE-01/04
CDAE-01/05-I
CDAE-01/05-E
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power supply
Load
Power standby (Typical)
EMS
Local Input
Binary Input voltage
Input contact resistance
IN to L
Voltage difference
IN to L
Overload protected (Auto recovery)
Short-circuit protected (Auto recovery)
Dimensions
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
www.eaton.eu/documentation
Perigo
Niebezpieczenstwo
Varning
Vaara
Hayati Tehlike
Pericol
Program
Mode
R, L, C, LED, ESL
Type
Local input
EMS, kWh
230 VAC +10% -15%, 50 Hz
0 - 250/500 W (0 - 250/500 VA)
LED, ESL: 0 - 100/200 W*
* Depending on the lamp type.
325 mW (EMS type: 425 mW)
0.5 W to 250/500 W,
5% ±0.5 W (>0.5 W)
230 VAC (Max. 265 V)
Maximum 265 V (Same phase)
< 10 kΩ reliably ON,
> 50 kΩ reliably OFF
< 1 V reliably ON
> 3 V reliably OFF
150 x 34 x 28 mm (H x W x D)
Installation by electricians only
Montage nur durch Elektrofachkräfte
Montage uniquement par un électricien
Montáž pouze osobami s elektrotechnickou kvalifikaci
Montáž iba osobami s elektrotechnickou kvalifikáciou
Må kun installeres af en aut. el-installatør
Debe ser instalado por un profesional eléctrico
Csak szakképzett személy szerelheti
Montaggio esclusivamente ad opera di personale specializzato
Må monteres av autorisert installatør Gr.L
Montage alleen door elektromonteurs
Deve ser instalado por um profissional
Montaz tylko przez uprawnionych instalatorów
Får endast utföras av behörig elektriker
Asennus vain sähköasentajan toimesta
Sadece uzman kisiler monte edebilir
Instalare numai de catre electricieni
Load
250 W
500 W
500 W
-5°C
* Derating
500 W
400 W
250 W
200 W
1
1.5 mm
6 mm
OFF
868.3 MHz
+55°C*
CDAE-01/05
CDAE-01/04
-5°C
45°C
MA-CDAE-01/04_CDAE-01/05.qxp/02.2018c
IL019105ZU / 136211186
2
IP20
55°C
Advertisement
Related Manuals for Eaton CDAE-01/04
Summary of Contents for Eaton CDAE-01/04
- Page 1 IN to L > 3 V reliably OFF Overload protected (Auto recovery) Short-circuit protected (Auto recovery) Dimensions 150 x 34 x 28 mm (H x W x D) Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CDAE-01/04_CDAE-01/05.qxp/02.2018c www.eaton.eu/documentation IL019105ZU / 136211186...
- Page 2 Wiring diagrams / Aansluitschema's / Koblingsskjemaer / Schaltpläne / Schéma zapojení 2 … n … n Set Local Input Mode / Lokale Ingang toewijzen / Tildele Lokal Inngang / Zuweisung lokaler Eingang / Přiřazení místního vstupu (CDAE-01/05-I) Push button / Pulsdrukker / Trykknapp / Tastfunktion / Tlaèítko Switch / Schakelaar / Bryter / Schalter / Pøepína...
- Page 3 Manual switching - test / Handmatig schakelen - test / Manuell betjening - test / Handschaltung - Test / Ruční přepínání / test Assign Sensor in Basic Mode / Sensor in Basic Mode toewijzen / Tilknytte i Basic Mode / Zuweisen im Basic Mode / Přiřadit v základním režimu Remove Sensor in Basic Mode / Sensor in Basic Mode verwijderen / Fjerne i Basic Mode / Löschen im Basic Mode / Odstranit v základním režimu...
- Page 4 Declaration of Conformity We, EATON Industries (Austria) GmbH 3943 Schrems, Eugenia 1 Austria declare under our sole responsibility that the product (family) Eaton - Dimming Actuator, CDAE-01/04..; CDAE-01/05.. (contains RF-Modul CSCZ-01/xx) (the declaration of conformity applies to all listed types within our actual product catalogue)
