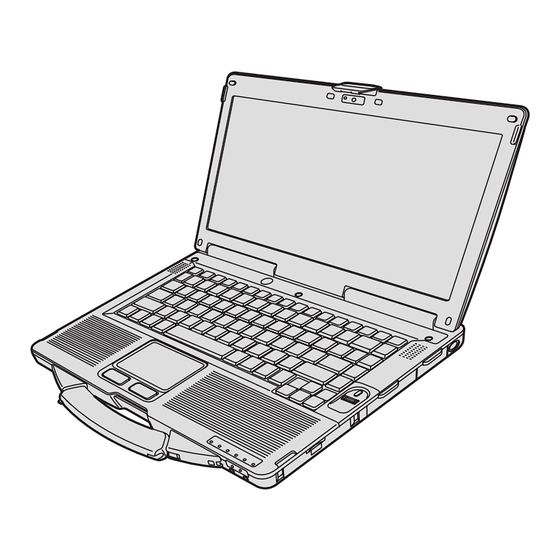

Panasonic Toughbook CF-53AAG711M Operating Instructions Manual

Panasonic toughbook cf-53aag711m: user guide.
Hide thumbs


For further information about the com-
puter, you can refer to the on-screen
To access the on-screen manual
page 16 "On-screen Manual"
Please read these instructions carefully before using this product, and save this manual for future use.


Getting Started

Useful Information


Personal Computer
Model No.


   Also See for Panasonic Toughbook CF-53AAG711M

   Summary of Contents for Panasonic Toughbook CF-53AAG711M

  • Page 1: Table Of Contents

    For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual page 16 “On-screen Manual” Please read these instructions carefully before using this product, and save this manual for future use. OPERATING INSTRUCTIONS Contents Getting Started ...2...
  • Page 2: Introduction

    Introduction Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully. Terms and illustrations in these instructions CAUTION NOTE Enter : Fn + F5 : (Start) - [All Programs]: [start] - [Run] :...
  • Page 3: Read Me First

    Read Me First Important Safety Instructions / Importantes Mesures De Securite <Only for model with modem> When using your telephone equipment, basic safety precau- tions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.
  • Page 4 Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions. When in a hospital or other health care facility, observe the restrictions on the use of mobiles.
  • Page 5 Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. Consult the Panasonic Service Center or an experi- enced radio/TV technician for help. Warning To assure continued compliance, use only shielded inter- face cables when connecting to a computer or peripheral.
  • Page 6 USA Only: Disposal may be regulated in your commu- nity due to environmental considerations. For disposal or recycling information, please visit Panasonic website: or call 1-888- 769-0149 For U.S.A.-California Only This product contains a CR Coin Cell Lithium Bat- tery which contains Perchlorate Material –...
  • Page 7 Panasonic cannot be held responsible in any way for any damages or loss resulting from the use of this unit in these types of equipment, devices or systems, etc.
  • Page 8 Read Me First • Unusual smell emitted • Unusually hot Continuing to use this product while any of the above con- ditions are present may result in fire or electric shock. • If a malfunction or trouble occurs, immediately turn the power off and unplug the AC plug, and then remove the battery pack.
  • Page 9  This computer is not intended for a use with connection of medical equipment for the purpose of medical diagnosis.  Panasonic shall not be liable for loss of data or other incidental or consequential damages resulting from the use of this product.
  • Page 10: Description Of Parts

    Description of Parts A : Wireless WAN antenna <Only for model with wireless WAN> Reference Manual “Wireless WAN” B : Bluetooth antenna <Only for model with Bluetooth> Reference Manual “Bluetooth” C : Speaker Reference Manual “Key Combinations” D : Smart Card slot <Only for model with Smart Card slot>...
  • Page 11: Attaching Stylus To Computer

    Right side Rear side A : Battery pack Specified Battery pack: CF-VZSU71U/CF-VZSU72U B : ExpressCard slot / PC Card slot  Reference Manual “PC Card / ExpressCard” Only for model with ExpressCard slot Only for model without ExpressCard slot C : PC Card slot ...
  • Page 12: First-time Operation

     Preparation A Check and identify the supplied accessories. If you do not find the described accessories, contact Panasonic Technical Support ( page 33). • AC Adaptor ... . . 1 Model No: CF-AA5713A •...
  • Page 13: Insert The Battery Pack

    CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact Panasonic Technical Support ( A Push the top of the latch (A) to release it.
  • Page 14 First-time Operation Setup Windows. A Follow the on-screen instructions. The computer restarts several times. Do not touch the keyboard or touch pad, and wait until the drive indicator After the computer is turned on, the screen remains black or unchanged for a while, but this is not a malfunction.
  • Page 15 NOTE PC Information Viewer This computer periodically records the management information of the hard disk, etc. The maximum data volume for each record is 1024 bytes. This information is only used for estimating the cause when the hard disk goes down by any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose described the above.
  • Page 16: On-screen Manual

    (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips]. Double-click Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].S NOTE When you access the document of PDF format for the first time, the License Agreement of the Adobe Reader may be displayed.
  • Page 17: Handling And Maintenance

    Handling and Maintenance Operation Environment Place the computer on a flat stable surface. Do not place the computer upright or turn it over. If the computer is exposed to an extremely strong impact, it may become damaged. Temperature: Operation : <Model without HDD heater> 0 °C to 50 °C {32 °F to 122 °F} (IEC60068-2-1, 2) <Model with HDD heater>...
  • Page 18 Handling and Maintenance Maintenance To clean the LCD panel <Only for model with touchscreen> Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD Surface” Reference Manual “Touchscreen”.) <Only for model without touchscreen> Wipe with a soft dry cloth such as gauze.
  • Page 19: Reinstalling Software

    At the confirmation message, select [Yes] and press Enter. Computer will restart. Press while [Panasonic] boot screen is displayed. The Setup Utility starts up. If the password is requested, enter the Supervisor Password. Select the [Exit] menu, then select [Repair Your Computer] and press Click [Reinstall Windows] and click [Next].
  • Page 20 At the confirmation message, select [Yes] and press Enter. Computer will restart. Press while [Panasonic] boot screen is displayed. The Setup Utility starts up. • If the password is requested, enter the Supervisor Password. Set the Recovery Disc into the CD/DVD drive.
  • Page 21: Troubleshooting (basic)

    You have forgotten the Supervisor Password or User Password: Contact Panasonic Technical Support password. Administrator password: • If you have a password reset disk, you can reset the administrator password. Set •...
  • Page 22 Card Slot] to [Disabled] in the [Advanced] menu of the Setup Utility. <Only for model with ExpressCard slot> If the problem persists after removing the disk, it may be a hard disk failure. Contact Panasonic Technical Support ( page 33). Press F9 in the Setup Utility ( Setup Utility settings (excluding the passwords) to the default values.
  • Page 23 B Click [Tools] - [Check Now]. C Select the option in [Check disk options] and click [Start]. Start the computer in Safe Mode and check the error details. When the [Panasonic] boot screen disappears Options Menu is displayed. Select the Safe Mode and press Enter.
  • Page 24 Troubleshooting (Basic) Display The screen is dark. The screen is disordered. During Simultaneous dis- play, one of the screens becomes disordered. The external display does not work normally. Touch Pad / Touchscreen (only for model with touchscreen) The cursor does not work. Cannot input using the touch pad.
  • Page 25 On-screen Document The document of PDF for- Install Adobe Reader. mat is not displayed. A Log on to Windows as an administrator. C Update Adobe Reader to its latest version. CD/DVD Drive The tray does not come out A pin of 1.3 mm in diameter is recommended to although inserting a pointed remove a disc using the emergency hole (A).
  • Page 26: Limited Use License Agreement

    DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE. Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.
  • Page 27 En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions des présentes. Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.
  • Page 28: Specifications

    Specifications This page provides the specifications for the basic model. The model number is different according to the unit configu- ration.  To check the model number: Check the bottom of the computer or the box the computer came in at the time of purchase. ...
  • Page 29  Main Specifications Model No. CF-53AAGZXDM IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T (2nd LAN Data: 56 kbps (V.92) FAX: 14.4 kbps Modem Sound WAVE and MIDI playback, Intel Security Chip TPM (TCG V1.2 compliant) Card PC Card Slot Slots x 1, ExpressCard/34 or ExpressCard/54...
  • Page 30 Specifications  Software Pre-installed Software  Wireless LAN <Only for model with wireless LAN> Data Transfer Rates Standards Supported Transmission Method Wireless Channels Used RF Frequency Band  Bluetooth™ <Only for model with Bluetooth> Bluetooth Version Transmission Method Wireless Channels Used RF Frequency Band 1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes...
  • Page 31 [OK]. Only for model with ExpressCard slot. Only for model without ExpressCard slot. Operation has been tested and confirmed using Panasonic SD/SDHC/SDXC Memory Cards with a capacity of up to 64 GB. Operation on other SD equipment is not guaranteed.
  • Page 32: Limited Warranty

    All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved and activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and may result in legal action.
  • Page 33 This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media.
  • Page 34 No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God.
  • Page 35 GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur lequel le ou les programmes sont four- nis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utilisation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.
  • Page 36 As an NERGY ® NERGY settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving the user energy. To learn more about power management, please visit the web site: Outline of the International The international NERGY saving through the use of computers and other office equipment.
