IMAGELINK 2400DV Plus
and Accessories
Installation Guide






Advertisement

loading
Need help?

Need help?

Do you have a question about the alaris IMAGELINK 2400DV Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Kodak alaris IMAGELINK 2400DV Plus

Summary of Contents for Kodak alaris IMAGELINK 2400DV Plus

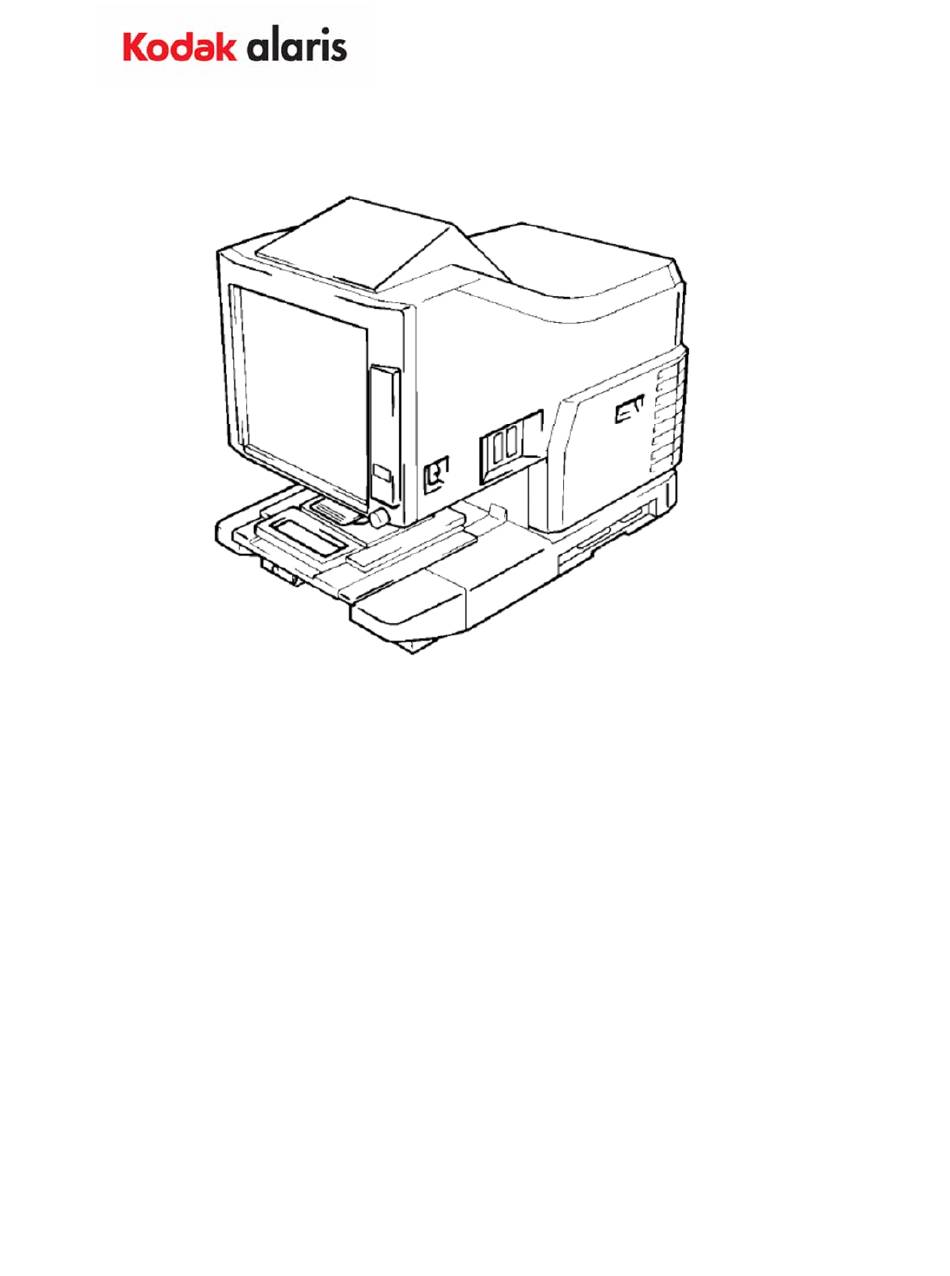

  • Page 1                                                         IMAGELINK 2400DV Plus  and Accessories  Installation Guide    ...
  • Page 2   Unpacking                     Setting up  ...
  • Page 3   Unpacking and Setting Up       1. Remove the plastic bag from the machine and remove all accessories in the packing material.                                  ...
  • Page 4   4. Remove 2 screws from the top OPTICAL COVER, slide to the rear and then lift the cover off the machine.                           5. Remove the foam from the MIRROR of the OPTICAL COVER.  ...
  • Page 5   7. Install the PRISM into the PRISM HOLDER and then install the SHIELD PLATE removed in the previous step of this procedure.   NOTE Be sure to install the SHIELD PLATE even if the PRISM is not to be used.  ...
  • Page 6   Connecting MSP3500 Printer.  ...
  • Page 7   PR Mode (Scanner + Printer) 1. Connect the Printer Cable to either of the ports at the rear of the MSP 3500. NOTE: The MSP 3500 Printer will support two DV Plus Scanners connected to it like. If you intend to use this type of configuration, it is possible for the Printer to print an identifier on each print so the operators can distinguish between which scanner the prints came from.

  • Page 8: Personal Computer

      Connecting To a     Personal Computer.  ...
  • Page 9   PC Mode (Scanner + Personal Computer).   The Scanner is connected to a personal computer and the scanned images can be uploaded to the computer. An optional PC interface kit required for connection to a personal computer. The SCSI cable should meet the following specifications:  ...
  • Page 10   Manual           Frame Masking  ...
  • Page 11   Manual Frame Masking Kit   Check all the component parts are in the kit before starting the installation.                                            ...
  • Page 12   4. Remove the left side cover and the metal plate behind the cover.   NOTE The METAL COVER only installed on 220vac machines.           5. Remove the PROJECTION UNIT.              ...
  • Page 13   8. Remove the PLATE under the CCD ASSEMBLY.                           9. Remove the FRONT & REAR SHIELD PLATES.                      ...
  • Page 14   13. Remove the PLATE SPRING from the rear side of the SCREEN FRAME.       14. Insert the X key A and the X key B (see component contents listing of the Manual Masking Kit) supplied into the backside of the SCREEN FRAME shown in the illustration.
  • Page 15   17. Install the PLATE A supplied in the kit onto the SCREEN FRAME shown in the illustration.                                              ...
  • Page 16   19. Insert the PLATE B supplied in the kit onto the SCREEN FRAME as shown in the illustration.                                   20. Install the Y-DIRECTION PCB.  ...
  • Page 17   25. Secure the WIRE HARNESS in the wire saddles.                       26. Insert the HARNESS A inside the SCREEN FRAME. Attach a “cushion” (bumper) from the kit under the RESISTOR ARRAY to fix the harness.  ...
  • Page 18   29. Re-install the Reader SCREEN FRAME and connect the connector to the CONTROL PANEL PCB.                       30. Insert the HARNESS of the SCREEN FRAME through the hole of the EDGE COVER, and secure the WIRING HARNESS in the wiring saddles.
  • Page 19   32. Continue to clip the Wire Harness into the wire saddles down the left side of the machine as illustrated.   33. Connect the MANUAL MASKING HARNESS connector into PJ7 on the PWB-BB PCB.            ...
  • Page 20                       Foot Switch               Accessory.  ...
  • Page 21   Foot Switch Accessory.   Check all the components of the FOOTSWITCH ACCESSORY are in the kit before installation.                                            ...
  • Page 22 4. Remove the lower left side cover.                         5. Remove the PLATE under the CCD ASSEMBLY.                            ...
  • Page 23 9. Re-install the PLATE under the CCD ASSEMBLY.                             10. Pass the WIRING from the FOOTSWITCH through the hole in the lower left cover.        ...
  • Page 24   13. Connect the cord from the FOOTSWITCH into the plug of the harness installed in step 7.   14. Secure the EARTH cable to the Reader frame using the screw and washer supplied in the kit.        ...
  • Page 25   Enabling the FOOTSWITCH.       1. Apply power to the Reader and power on.   2. Enter Service Diagnostics by pressing the [CLEAR/STOP], [1] and [EXPOSURE MODE AUTO] keys for 2 seconds or more. The “Multi-Print” display will show “S”  ...
  • Page 26   6. Exit Service diagnostics by pressing [CLEAR/STOP], [1] and [EXPOSURE MODE AUTO] keys at the same time.                 NOTE Update the Reader Configuration sheet stuck on the inside of the REAR COVER. 7.

  • Page 27: Installation

      Installation                 of the Greyscale Accessory.  ...
  • Page 28   Installation of the Greyscale Accessory.                                   1. Power down the MS6000 and disconnect the power cord.       2. Remove the PROJECTION UNIT.  ...
  • Page 29 5. Remove the METAL PLATE under the RIGHT COVER.                                     6. Remove the PLATE under the CCD ASSEMBLY.            ...
  • Page 30 9. Re-install all PLATES and machine COVERS previously removed.     10. Apply power to the Reader and check operation.  ...
