Overview of temperature sensors

T1/T20
T10

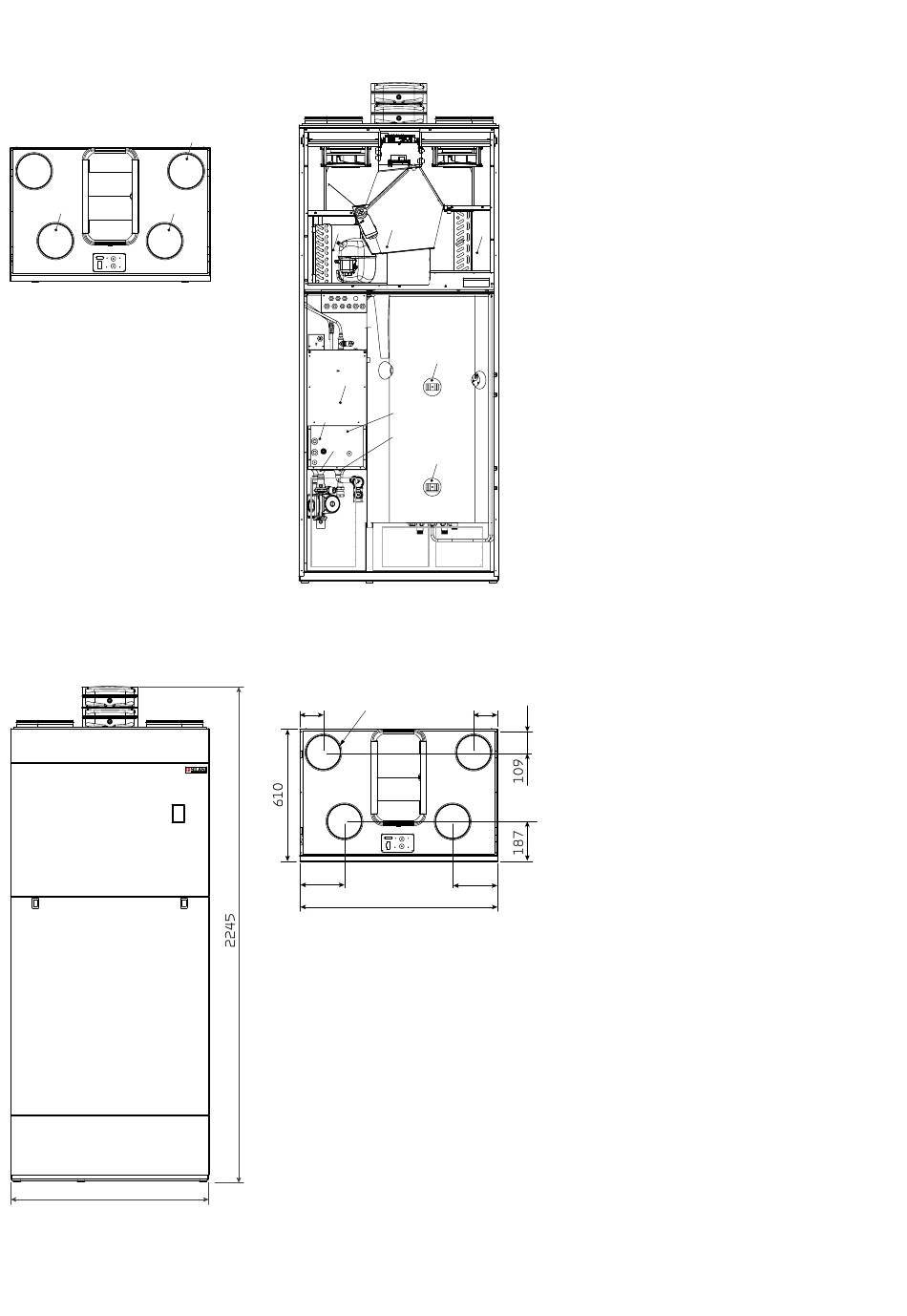

Dimensional drawing

900
8
T2
T6
T35
T14
T13
108 Ø160
4
1
204
T4
T5
T11
T17/T18
T16
T12
108
2
3
204
900
Temperature sensors in the unit
T1: Outdoor air
T2: Supply air
T4: Extract air after heat exchanger
T5: Condenser
T6: Evaporator
T10: Extract air
Temperature sensors in the hot water tank
T11: Top of tank
T12: Bottom of tank
Temperature sensors Brine
T13: Brine supply flow
T14: Brine return flow
Temperature sensors GEO
T16: Before condenser
T17: After condenser
T18: Supply flow central heating
T20: Outdoor temperature
T35: Pressure pipe temperature
Connections:
1. Outdoor air
2. Supply air
3. Extract air
4. Discharge air
Weight: 268 kg.
All listed measurements are in mm.
