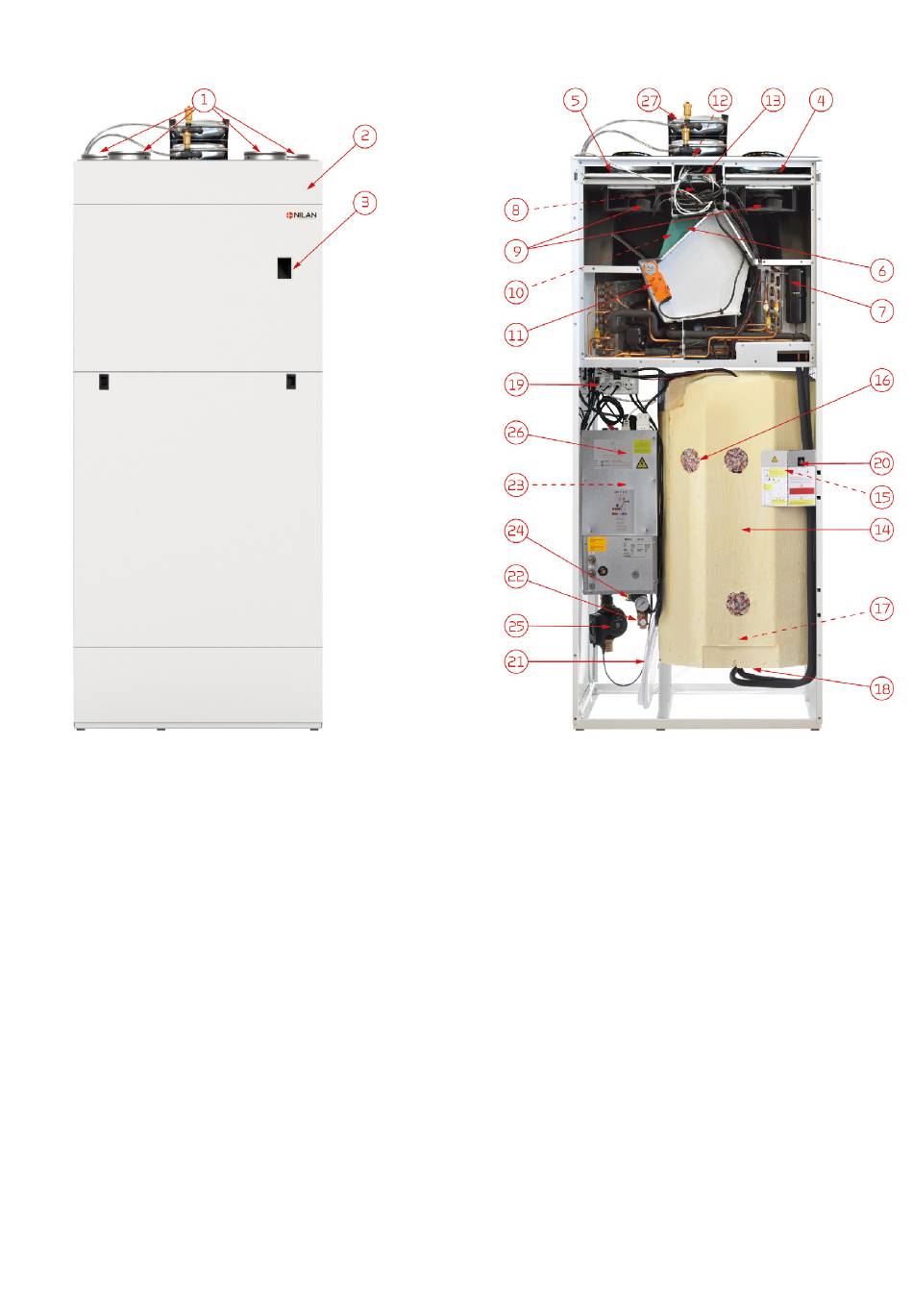

The unit

Compact P2:
1. Duct connections
2. Filter replacement door
3. Control panel (HMI touch panel)
4. Extract air filter
5. Outdoor air filter (if purchased as an accessory, a pollen fil-
ter should be fitted here)
6. Counterflow heat exchanger
7. Heat pump
8. Automation CTS602
9. Fans
10. Pre-heating element for frost protection (Polar version
only)
11. 100% bypass damper
12. Electrical connections accessories
13. Gateway for App option
14. 180 litres hot water tank (DHW)
15. 1.5 kW immersion heater (with overheat protection)
16. Electronically monitored sacrificial anode
17. Supplementary coil (SOL version only)
18. Plumbing connections
19. Electrical connections panel
20. Emergency mode (DHW)
21. Condensate drain with water trap
GEO:
22. Safety valve and manometer for the central heating circuit
23. Inverter-controlled DC compressor
24. Filling tap and particle filter for the central heating circuit
25. Integrated circulation pump for the brine circuit
26. Supplemental electric heating for central heating 2kW
27. Expansion vessel for central heating- and brine circuit 2x8
litres
