Service Manual
PRODUCT INFORMATION
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
• Colour
: Merlin Blue
• Input Power
: 750 W
• Suction Power
: 190 W
• Noise level
: 79 dB
• Dustcapacity
: 4 L
• Filtration
: EPA 10 Filter
• Cord length
: 6 m
• Action Radius
: 9 m
• Connection
: Conical
• Dimensions
: 44 x 30 x 20 cm
• Weight
: 5 kg
Published by Philips Consumer Lifestyle
16/05 Version 1.6
ACCESSORIES
• Standard nozzle
• Additional nozzle
• Tube
• Accessories
REPAIR INSTRUCTION
• No specific issues
OPTIONAL (accessories)
• Smart Cleaning Kit 4322 004 25481
• Filter assy FC8059/01
Printed in the Netherlands

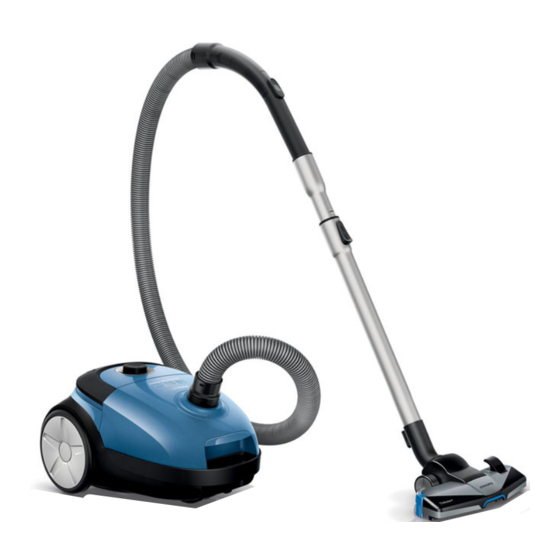

Vacuum cleaner
FC8524/09
: TriActive+ nozzle
: Alma HF nozzle
: Metal 2-pieces telescopic tube
: Crevice nozzle, Small nozzle and
Easy reach tool
© Copyright reserved
Subject to modification
Advertisement
Related Manuals for Philips FC8524/09
Summary of Contents for Philips FC8524/09
- Page 1 • Action Radius : 9 m • Connection : Conical • Dimensions : 44 x 30 x 20 cm • Weight : 5 kg Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 16/05 Version 1.6...
- Page 2 DISASSEMBLY- AND RE-ASSEMBLY ADVISE FC8524/09 • First remove the dust bag. • To replace the Valve assy (10), turn the appliance upside down and remove bottom plate (16) by removing screw D. Now by using a screwdriver the valve assy can be removed (see picture).
-
Page 3: Parts List
PARTS LIST FC8524/09 Service code Description Remark 9965 100 71513 Dust cover assy Merlin blue metallic 9965 100 71512 Dust cover lock Merlin blue metallic 9965 100 68376 Dustbag holder Basic blue 61192 4322 005 28301 DBFI assy (Red) Atlas Low power... - Page 4 EXPLODED VIEW FC8524/09...
- Page 5 EXPLODED VIEW FC8524/09...
- Page 6 EXPLODED VIEW FC8524/09...
- Page 7 EXPLODED VIEW FC8524/09...
- Page 8 FC8524/09 Version history 14/09 Version 1.1 : FC8524/09 initial release. 15/02 Version 1.2 : On page 1 under Accessories Added Alma HF nozzle. In Parts List and Exploded view: Added Pos. 32: 4322 004 26061 Alma HF nozzle Conical 35 mm KC Deep black.
