Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
Safety
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
14/04 Version 1.4
TECHNICAL INFORMATION
• Colour
• Power consumption
• Action radius
• Cord length
• Filtration
• Coupling
• Wheels
• Dimensions appliance : 240 x 410 x 240 mm
• Weight
ACCESSORIES
• Nozzle
• Special nozzle
• Tubes
• Accessories
REPAIR INSTRUCTION
• No specific issues
OPTIONAL (accessories)
• No specific issues
Printed in the Netherlands

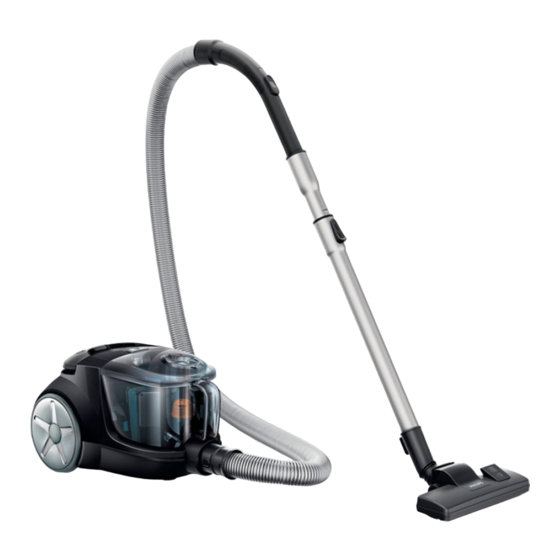

Vacuum cleaner
FC8473/01
FC8473/61
: Deep Black
: 1800 W
: 9 m
: 6 m
: Washable double foam filter
HEPA 10
: Conical
: Plastic
: 4.5 kg
: Multi nozzle
: Parquet nozzle
: Metal 2-piece Telescopic Tube
: Crevice nozzle and Small nozzle
© Copyright reserved
Subject to modification
Advertisement
Related Manuals for Philips FC8473
Summary of Contents for Philips FC8473
-
Page 1: Vacuum Cleaner
: Metal 2-piece Telescopic Tube • Accessories : Crevice nozzle and Small nozzle REPAIR INSTRUCTION • No specific issues OPTIONAL (accessories) • No specific issues Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 14/04 Version 1.4... - Page 2 FC8473/01 / FC8473/61 DISASSEMBLY- AND RE-ASSEMBLY ADVISE • To open the appliance, first remove the bucket by • Remove the Exhaust grille and filter and “unclick the two pushing the Unlock button and lifting the bucket straight snap locks” on the backside with a screwdriver. (see upwards.
-
Page 3: Circuit Diagram
FC8473/01 / FC8473/61 DISASSEMBLY- AND RE-ASSEMBLY ADVISE • The Motor housing is fixed around the motor with two screws (E) and clicknocks all around and, these can easily be detached and clicked in again while assembling. • Working procedure for re-assembling the Upper housing:... -
Page 4: Parts List
FC8473/01 / FC8473/61 PARTS LIST Service code Description Remark 9965 100 60936 Lid for Bucket 9965 100 60947 Bucket incl. Cone 4322 004 93801 HEPA fi lter Buffalo - Mistral 4322 004 93821 Micro fi lter Mistral 9965 100 60938... - Page 5 FC8473/01 / FC8473/61 EXPLODED VIEW 5-10...
- Page 6 FC8473/01 / FC8473/61 EXPLODED VIEW 6-10...
- Page 7 FC8473/01 / FC8473/61 EXPLODED VIEW 7-10...
- Page 8 FC8473/01 / FC8473/61 EXPLODED VIEW 8-10...
- Page 9 FC8473/01 / FC8473/61 EXPLODED VIEW 9-10...
- Page 10 FC8473/01 / FC8473/61 Version history Version 1.1 : FC8473/01 / FC8473/61 initial release. Version 1.2 : Update picture removing exhaust grille in Disassembly- and Re-assembly advise. Version 1.3 : In Parts List and Exploded view: Added Pos. 28, 4322 004 93901 Exhaust Filter Sponge Buffallo.
