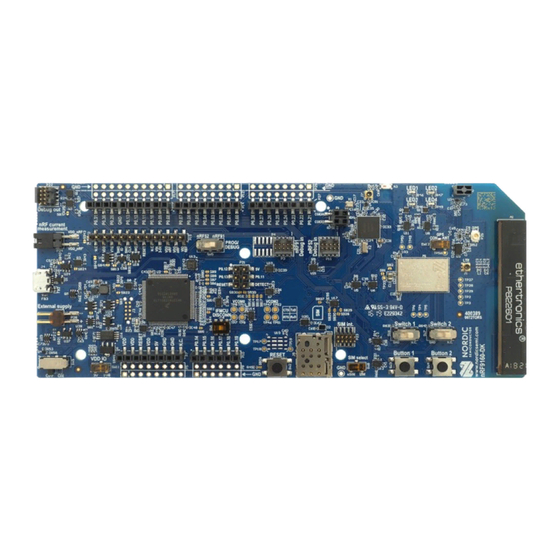

nRF9160 DK
Getting Started Guide
v1.0
4418_1412 v1.0 / 2020-07-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nRF9160 DK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nordic Semiconductor nRF9160 DK

Summary of Contents for Nordic Semiconductor nRF9160 DK

  • Page 1 DK Getting Started Guide v1.0 4418_1412 v1.0 / 2020-07-30...

  • Page 2: Table Of Contents

    Contents Revision history ........Introduction ........Related documentation .

  • Page 3: Revision History

    Revision history Date Version Description July 2020 First release 4418_1412 v1.0...

  • Page 4: Introduction

    Introduction This guide will help you get started with your nRF9160 DK. Before you start developing your own application, you should update the firmware (both the application firmware and the modem firmware) and the certificates of the Development Kit (DK) and conduct some initial tests.

  • Page 5: Related Documentation

    Related documentation In addition to the information in this document, you may need to consult other documents. User guides • nRF9160 DK Hardware • nRF Connect SDK documentation • nRF Connect for Desktop • nRF Connect Programmer • nRF Connect LTE Link Monitor Reference information •...

  • Page 6: Minimum Requirements

    Ensure that you have all the required hardware and that your computer fulfills the software requirements. Hardware requirements • nRF9160 DK • nano-SIM card that supports LTE-M or Narrowband Internet of Things (NB-IoT) (the nRF9160 DK contains an iBasis Subscriber Identity Module (SIM) card) • Micro-USB 2.0 cable •...

  • Page 7: Testing A Prebuilt Application

    These videos cover the contents of this chapter. 4.1 Installing the required software To be able to update the nRF9160 DK firmware and certificates, you must install several apps for nRF Connect for Desktop. nRF Connect for Desktop is a cross-platform framework for development applications. It contains apps for programming firmware, monitoring LTE links, power optimization, and more.

  • Page 8: Updating The Application Firmware

    Connect Programmer. 2. Set the PROG/DEBUG (SW5) switch on the nRF9160 DK to nRF91 so that the application firmware is programmed to the nRF9160 SiP. 3. Connect the nRF9160 DK to the computer with a USB cable and turn it on.

  • Page 9: Creating An Nrf Connect For Cloud Account

    Connect Programmer. 2. Connect the nRF9160 DK to the computer with a USB cable and turn it on. In the navigation bar, No devices available changes to Select device. 3. Click Select device and select the device from the drop-down list.

  • Page 10: Updating The Nrf Connect For Cloud Certificate

    4.4.1 Downloading the nRF Connect for Cloud certificate You can download the nRF Connect for Cloud certificate for your nRF9160 DK from nRF Connect for Cloud. Complete the following steps to download the certificate: 1. Go to nRF Connect for Cloud (nrfcloud.com)

  • Page 11: Connecting The Dk To Nrf Connect For Cloud

    4.5 Connecting the DK to nRF Connect for Cloud To be able to transmit data from your nRF9160 DK to nRF Connect for Cloud, you must activate your SIM card and add the nRF9160 DK to your nRF Connect for Cloud account.
  • Page 12 DK GPS for more information. 7. Connect the nRF9160 DK to the computer with a USB cable and turn it on, or reset the device if it is already turned on. 8. Wait up to three minutes for the device to find the cellular network and the cloud server.

  • Page 13: Testing The Application

    SDK. Complete the following steps to test the application: 1. Turn on or reset your nRF9160 DK and wait until LED3 is off and LED4 is on, indicating that the connection to nRF Connect for Cloud has been established. 2. Go to nRF Connect for Cloud (nrfcloud.com)
  • Page 14 Testing a prebuilt application 5. Press Button 1 on your nRF9160 DK for a minimum of 10 seconds to enable GPS tracking. Observe that after a while, the GPS data is displayed on the map in the GPS Data card in nRF Connect for Cloud.

  • Page 15: Building And Testing A Sample Application

    After testing a prebuilt application, you should build one of the sample applications provided by the Connect SDK. The nRF Connect SDK provides several samples for the nRF9160 DK. See Samples and applications for a list of all available samples.

  • Page 16: Testing The Cellular Connection With The At Client Sample

    Client sample. You can also use it to troubleshoot and debug any connection issues. The AT Client sample enables you to send AT commands to the LTE-M/NB-IoT modem of your nRF9160 DK to test and monitor the cellular connection. Complete the following steps to build and test the AT Client sample: 1.

  • Page 17: Building And Testing The Asset Tracker

    • For NB-IoT: AT%XSYSTEMMODE=0,1,1,0 e) Enter AT+CFUN=0 to set the parameter to non-volatile memory. f) Power-cycle the nRF9160 DK. g) In LTE Link Monitor, select the check box for Automatic requests and connect to the device again. h) Enter AT+CFUN=1 to turn on the modem.

  • Page 18: Developing Your Own Application

    Developing your own application After testing the provided samples, you are ready to develop your own application with the nRF Connect SDK. The following documentation helps you understand how to work with the nRF Connect SDK: • nRF Connect SDK documentation, especially: •...

  • Page 19: Glossary

    Glossary Application Programming Interface (API) A language and message format used by an application program to communicate with an operating system, application, or other service. Cat-M1 LTE-M User Equipment (UE) category with a single RX antenna, specified in 3GPP Release 13. Cat-NB1 Narrowband Internet of Things (NB-IoT) User Equipment (UE) category with 200 kHz UE bandwidth and a single RX antenna, specified in 3GPP Release 13.
  • Page 20 UE as it moves. nRF Connect for Cloud Nordic Semiconductor's platform for connecting IoT devices to the cloud, viewing and analyzing device message data, prototyping ideas that use Nordic Semiconductor chips, and more. It includes a public REST API that can be used for building IoT solutions. See nRF Connect for Cloud (nrfcloud.com).

  • Page 21: Acronyms And Abbreviations

    Acronyms and abbreviations These acronyms and abbreviations are used in this document. Application Programming Interface Device Firmware Update Development Kit eDRX Extended Discontinuous Reception Global Positioning System ICCID Integrated Circuit Card Identifier Integrated Development Environment IMEI International Mobile (Station) Equipment Identity Long Term Evolution Non-access Stratum NB-IoT...
  • Page 22 Acronyms and abbreviations Tracking Area Update User Equipment 4418_1412 v1.0...

  • Page 23: Legal Notices
