- Page 1 Manual Created by...
- Page 2 You can find a complete guide to all the features of your Grid Pad on the Smartbox Hub: hub.thinksmartbox.com/gridpad10s Document: Grid Pad 10s - Manual - UK - D Language: English Date of issue: October 2022 Copyright © 2022 Smartbox Assistive Technology...
-
Page 3: Table Of Contents
Manual Starting Grid 3 Features Ports Power Charging Remote Power Button Mounting Strap Finding your model and serial number... - Page 4 Starting Grid 3 Grid 3 will automatically start when the device is switched on by default, however you can start Grid 3 from the desktop from the Grid 3 icon on the desktop. Grid 3...
- Page 5 For more resources and guides on how to get started with Grid visit the Smartbox Hub. • Get started with Grid • Access methods and setup • Troubleshooting guides • Videos and webinars • Resources for grid sets • ...and much more.
-
Page 6: Features

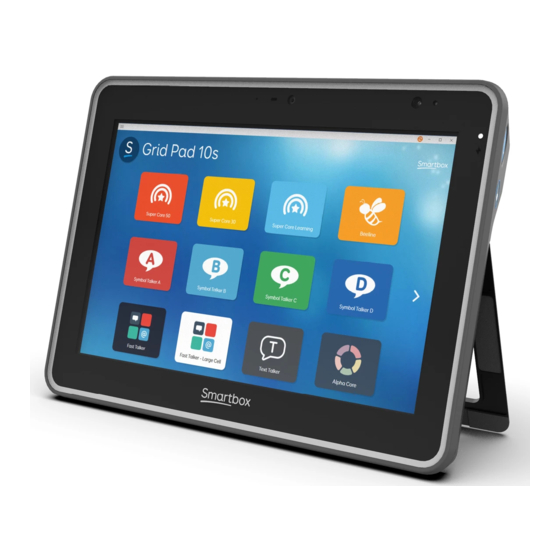

Features Front camera Infrared receiver Touch screen Power button Volume buttons Charging port... - Page 7 Port cover Port cover Rear camera Strap ring Stand Strap ring Mounting plate location Second screen Infrared transmitter Infrared transmitter Speaker Speaker...
-
Page 8: Ports
Ports Your Grid Pad has a number of ports to connect extra devices and access methods to. These are located under the port covers. USB 3.0 port USB 3.0 port Headphone port Switch ports... -
Page 9: Power
Power To power on your Grid Pad press the power button on the side of the device for just under a second. A white light on the front of the device will come on and the system will start up. If the device is in sleep mode it will wake up. - Page 10 You can power off your Grid Pad in several ways. Windows shut down Close any apps you have open and make sure you have saved any work. Tap the Start menu Select the Power icon Select Shut down The Grid Pad will shut down and any pending Windows updates will be installed.
-
Page 11: Charging
Charging You will need to charge your Grid Pad’s battery after use. Connect your Grid Pad charging port to the power adapter, the adapter is clearly labelled. Connect the power adapter to the mains socket to charge. -
Page 12: Remote Power Button
Remote Power Button Your Grid Pad has a Remote Power Button included. The Remote Power Button allows you to turn your Grid Pad on and off. It can also be used to setup switches away from the device. The Remote Power Button comes paired with your Grid Pad out of the box. -
Page 13: Mounting
Mounting The Grid Pad mounting kit is compatible with Daessy and ReHadapt mounts. Use a screwdriver to firmly attach the mounting plate to your Grid Pad. Ensure all three screws are secure. -
Page 14: Strap
Strap You can attach the Grid Pad strap to the built in strap rings on the bottom of the device. Thread the clip strings through the rings, then pull the plastic clip through the string. Attach the strap to the clips. -
Page 15: Finding Your Model And Serial Number
Finding your model and serial number When you contact our Support team, please have your device model and serial number to hand. This helps us identify the device you are having an issue with! You can find the serial number on the back of your Grid Pad. - Page 16 Grid Pad 10s - Manual - UK - D...
