- Page 1 MP450S Controller (for Slitting and Cut-to-Length Machines) Operator Manual...
- Page 2 Copyright © 2008 − AMS Controls, Inc. All rights reserved. The information contained in this document is proprietary to AMS Controls, Inc., and is not to be reproduced in any form without the specific written authorization of AMS Controls, Inc.
-
Page 3: Table Of Contents
MP450S Operator Manual Table of Contents TABLE OF CONTENTS ......................I CHAPTER 1: INTRODUCTION..................... 3 ..........................3 VERVIEW Features ...........................3 CHAPTER 2: MANUAL OPERATIONS ................4 ........................4 OGGING ATERIAL ......................... 4 ANUAL HEAR )..................4 OAD A UTOLOAD EATURE CHAPTER 3: PRODUCTION PROCEDURES..............5 ......................... -
Page 5: Chapter 1: Introduction

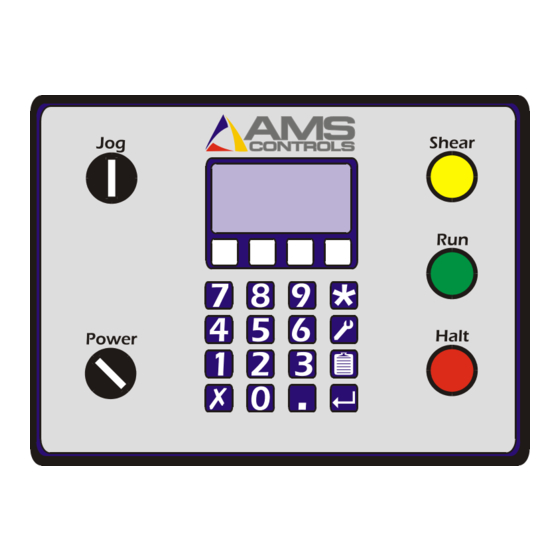

MP450S Operator Manual Chapter 1: Introduction Overview The AMS Controls MP450S is an industrial controller used to control cut-to- length machinery equipped with slitting knives. Figure 1 shows the front panel of MP450S. Figure 1: The AMS Controls MP450S Controller Features The MP450S controller’s features include:... -
Page 6: Chapter 2: Manual Operations
• To jog material forward using the MP450S, turn the jog switch on the controller to the right (clockwise). • To jog material in reverse using the MP450S, turn the jog switch on the controller to the left (counter-clockwise). Manual Shear To fire the shear manually, press the shear button Note: The controller must be in Manual mode. -
Page 7: Chapter 3: Production Procedures
Push Button and Front Panel Selector Switches Shear Press [Shear] to manually activate the shear. Note: The MP450S controller allows this switch to operate when the machine is stopped. Halt Select [Halt] to load a coil and to stop the machine... -
Page 8: Program A Job
MP450S Operator Manual Select [Run] to start the machine after a job has been programmed When the machine is in manual mode (i.e., the Run (Forward button is not lit), turn and hold the Jog switch clockwise to jog the material forward, turn and hold the... - Page 9 MP450S Operator Manual 5. The controller displays the message “Pause After Job xx?” (where xx is the job number assigned in step 1). Select: Yes to have the machine halt automatically after the selected job number is finished. No to have the machine change lengths “on-the-fly” and run the job following the selected job without first stopping.
-
Page 10: Automatic Operation
Increasing the correction factor causes the parts to become longer and decreasing the value shrinks the parts. The MP450S controller’s length calibration feature automatically computes a new correction factor. Length Calibration should be used any time part lengths are incorrect in a consistent manner (e.g., all parts 1mm too long, etc.). -
Page 11: Clear Controller Memory
MP450S Operator Manual for calibration is 5 feet; the maximum length that can be programmed for calibration is 40 feet. The message “Load Coil, Then Cycle Shear” displays. 3. While in Manual mode, load a coil using the Jog switch and, with the material slightly past the shear, press [Shear] . -
Page 13: Index
MP450S Operator Manual Index Automatic Operation, 8 Length Calibration, 8 Load a Coil, 4 Calibrate Trim, 8 Calibration Manual Shear, 4 procedure, 8 Material Clear Controller Memory, 9 jogging, 4 Controller Memory MP450S Features, 3 clear, 9 Correction Factor, 8...
