Replacing the Battery in an XL100

WARNING: BEFORE REPLACING THE BATTERY, YOU MUST BACK UP ALL PARAMETERS. LOSS OF

POWER TO THE XL200 CONTROLLER WILL CLEAR ALL PARAMETERS.

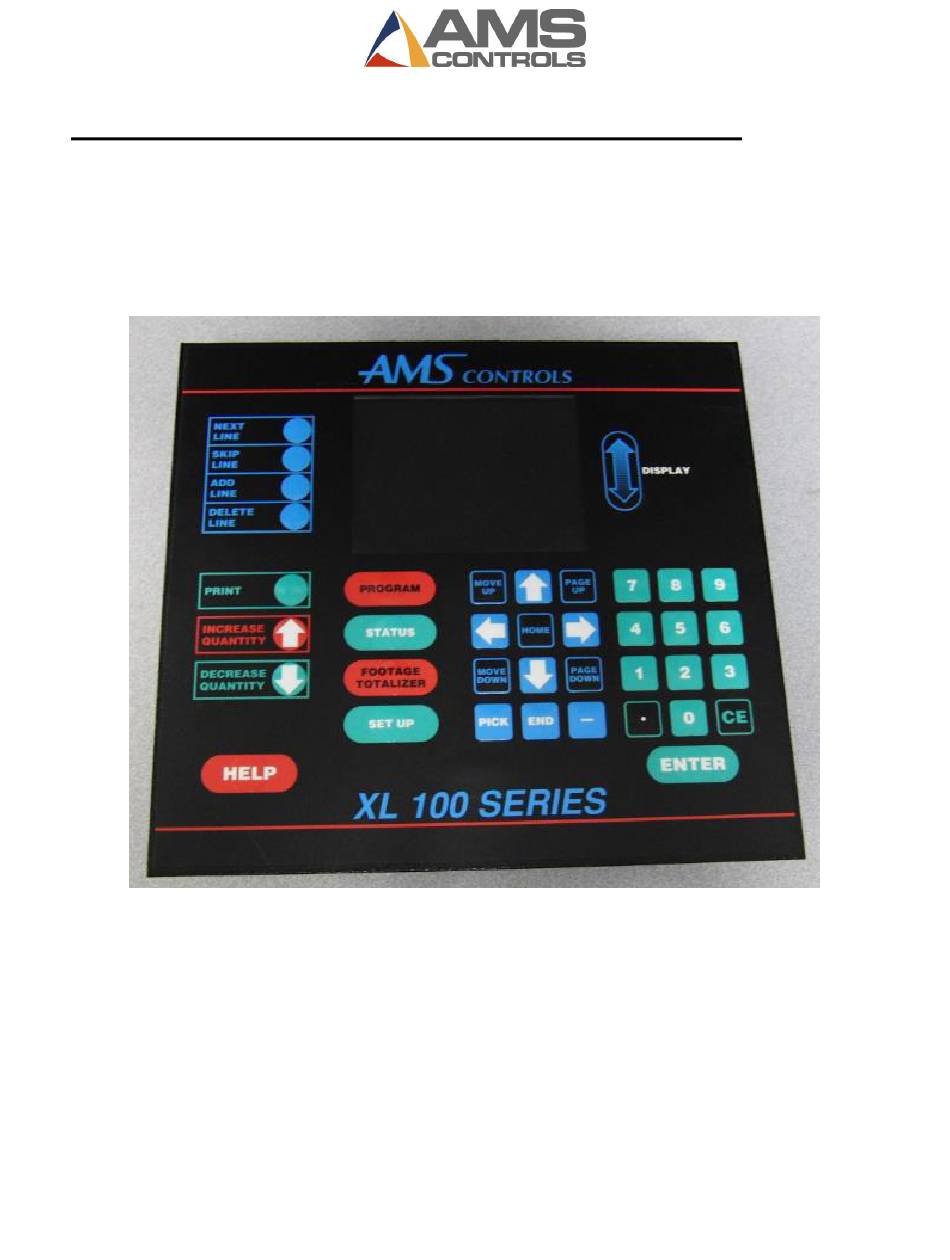

Figure 1 - Front of XL100

1. Flip the controller so that it is face down.

Table of Contents

Do you have a question about the XL100 and is the answer not in the manual?

Page 1 Replacing the Battery in an XL100 WARNING: BEFORE REPLACING THE BATTERY, YOU MUST BACK UP ALL PARAMETERS. LOSS OF POWER TO THE XL200 CONTROLLER WILL CLEAR ALL PARAMETERS. Figure 1 - Front of XL100 1. Flip the controller so that it is face down.
Page 2 Figure 2 - Back of XL100 2. Remove the 7 screws circled in red in Figure 2 3. Remove the 3 nuts circled in yellow in Figure 2.
Page 3 Figure 3 – XL100 with back cover removed 4. Remove the back cover from the XL100 as shown in Figure 3.
Page 4 Figure 4 - Back cover removed 5. Locate the Panasonic CR2330 battery shown in Figure 4. 6. Press down on the right side of the battery until the left side raises up. 7. Grab the left side of the battery and pull it out to the left.
Page 5 9. Place the back cover back over the XL100. 10. Put nuts and screws back into place. 11. Congratulations, you’ve successfully replaced the battery in your XL100.
