Replacing a Battery in an XL200

ECO1449
WARNING: BEFORE REPLACING THE BATTERY, YOU MUST BACK UP ALL PARAMETERS. LOSS OF
POWER TO THE XL200 CONTROLLER WILL CLEAR ALL PARAMETERS.

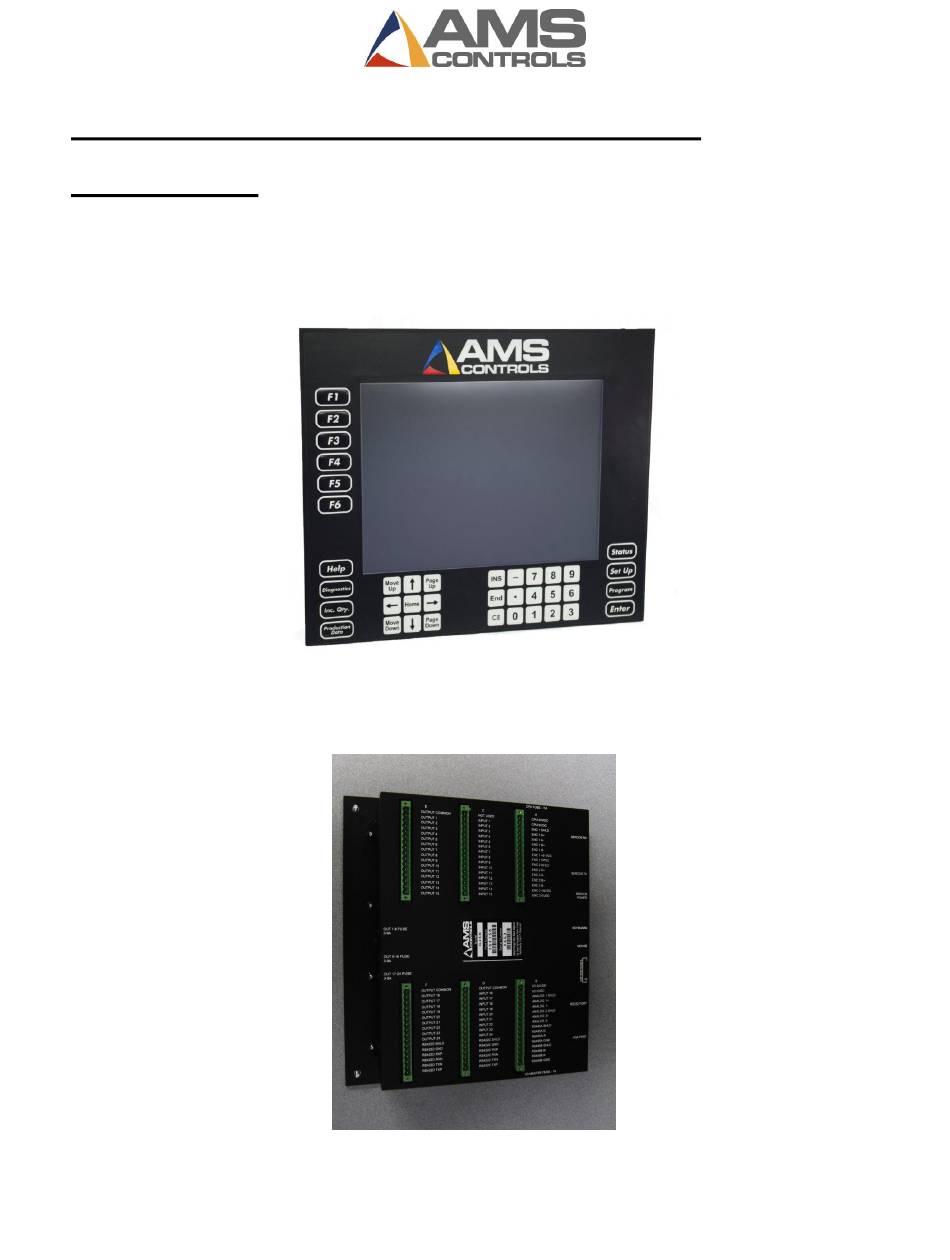

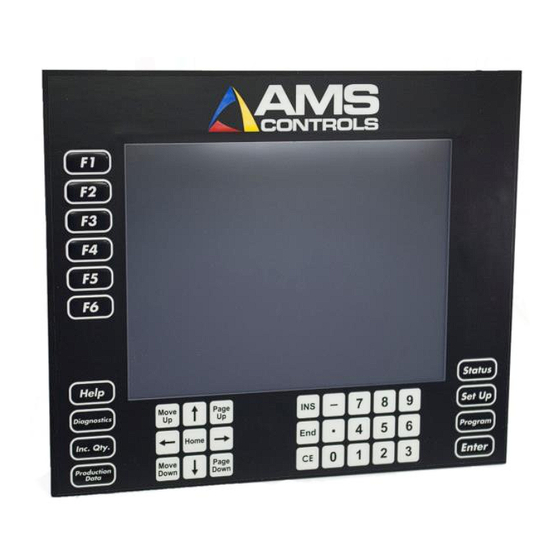

Figure 1 - Front of XL200
1.

Flip the controller so that it is face down.

Figure 2 - Back of XL200
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL200 ECO1449 and is the answer not in the manual?

Questions and answers

Related Manuals for AMS Controls XL200 ECO1449

Summary of Contents for AMS Controls XL200 ECO1449

  • Page 1 Replacing a Battery in an XL200 ECO1449 WARNING: BEFORE REPLACING THE BATTERY, YOU MUST BACK UP ALL PARAMETERS. LOSS OF POWER TO THE XL200 CONTROLLER WILL CLEAR ALL PARAMETERS. Figure 1 - Front of XL200 Flip the controller so that it is face down. Figure 2 - Back of XL200...
  • Page 2 Figure 3 - Bottom of XL200 Remove the 3 screws on the bottom of the controller circled in yellow in Figure 3. Figure 4 - Top of XL200 Remove the 2 screws on the top of the controller circled in yellow in Figure 4.
  • Page 3 Figure 5 - Back cover and XL200 with back cover removed Remove the back cover as shown in Figure 5.
  • Page 4 Figure 6 - XL200 with back cover removed 5. Remove the 8 nuts circled in red Figure 6. 6. Lift the circuit boards slowly from the right side as shown in Figure 7. While lifting, remove the strand of wires from the front panel. This is done by pulling the white connector straight up off of the front panel as shown in Figure 7.
  • Page 5 Figure 7 - White connector removed Figure 8 - Black connector removed...
  • Page 6 Figure 9 - Boards opened 7. Open the boards as shown in Figure 9 while making sure not to pull apart the connections on the other side of the board. Leave the circuit boards up as shown in Figure 9.
  • Page 7 Figure 10 - Bottom side of board Locate the Panasonic CR2477 battery as shown in Figure 10. 9. Lightly pry the right side of the battery up until the right side raises. 10. Grab the right side of the battery and pull it out towards the right.
  • Page 8 Figure 11 - Battery partially removed 11. Insert the new Panasonic CR2477 battery with the positive (+) side facing up by inserting it from the top side and sliding it under the clip until it snaps into place. 12. Close the boards back on top of the front panel. While lowering the board, reconnect the wires to the back of the front panel.
