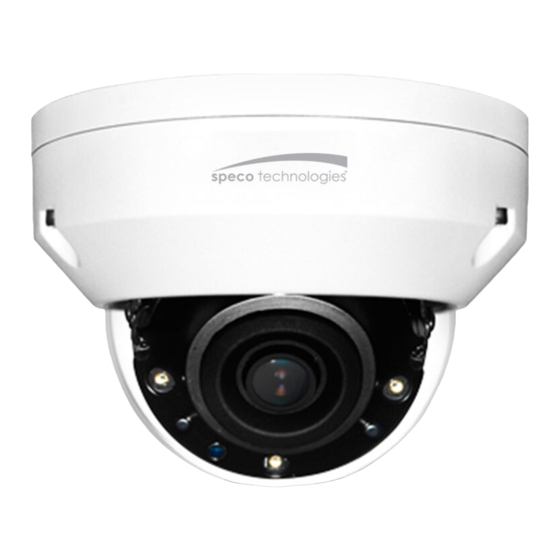

SPECO 5MP IP HDMI DOME O5DH Brief Manual
CONTENTS
1
Advertisement
Table of Contents
Related Manuals for Speco O5DH
Summary of Contents for Speco O5DH
-
Page 1: Table Of Contents
CONTENTS 1. Introduction of 5MP IP HDMI Dome Camera O5DH--------------------------------------2 2. Interfaces of 5MP IP HDMI Dome Camera O5DH-----------------------------------------3 3. IP Tool for 5MP IP HDMI Dome Camera O5DH--------------------------------------------4 3.1 IP Tool Installation 3.2 IPC Default Information 4. 5MP IP HDMI Dome Camera O5DH Operation Guiding-----------------------------5-14 4.1 Web Login----------------------------------------------------------------------------------------5... -
Page 2: Introduction Of 5Mp Ip Hdmi Dome Camera O5Dh
And when faces are continuously detected about 3s, a deterrence picture like “RECORDING IN PROGRESS” will pop-up. Users can upload their own picture to pop- up when faces detected. SPECO IP HDMI dome camera supports 1TB Max TF card for remote recording, it can ensure longer time recording. -
Page 3: Interfaces Of 5Mp Ip Hdmi Dome Camera O5Dh
SPECO 5MP IP HDMI DOME O5DH Brief Manual 2. Interfaces of 5MP IP HDMI Dome Camera O5DH... -
Page 4: Ip Tool For 5Mp Ip Hdmi Dome Camera O5Dh
SPECO 5MP IP HDMI DOME O5DH Brief Manual 3. IP Tool for 5MP IP HDMI Dome O5DH 3.1 IP Tool Installation Customers can use our IP Config Tool to search/modify/factory reset/FW upgrading, etc 3.2 IPC Default Information Default address: 192.168.0.66 (DHCP default enabled) -
Page 5: Mp Ip Hdmi Dome Camera O5Dh Operation Guiding
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4. 5MP IP HDMI Camera O5DH Operation Guiding 4.1 Web Login Please type in correct IP address of your camera on browser, and: 1. Type in default PW “admin”; 2. Enter into PW change page and change your PW (PW is forced to change to ensure safety). -
Page 6: Preview Page
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.2 Preview Page (Main Stream) 4.3 Backup Record Files: Alarm/Timed/Manual/Face Detection Download Format: IVD/MP4/JPG... -
Page 7: Settings
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4 Settings Including: Config Media/Network/Alarm Config/Record/System/Intelligence/PVM Function 4.4.1 Config Media Please note: 1. If you use camera in corridor environment, you can adjust “camera angle”;... -
Page 8: Network
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4.2 Network Including: TCP/IP, Email, FTP, UPNP, RTSP. Please note: 1. HTTP Port: 80 2. Onvif Port: 80 3. RTSP Port: 554, and instruction is below: rtsp://192.168.0.66:554/H264?channel=1&subtype=0&unicast=true&proto=Onvif/video Note: subtype=0 (main stream) ; subtype=1 (sub stream) -
Page 9: Alarm Config
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4.3 Alarm Config Including: Motion Detection/Video Blind/Alarm Please note: 1. To set motion detection region/sensitivity/threshold, please enter “Regional Edit”. -
Page 10: Record
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4.4 Record Including: Schedule/SD Storage/Snapshot/Destination/NAS//System Log Please note: 1. Ensure your camera is powered off before you insert TF card for remote recording; 2. After power up, please format your TF card;... -
Page 11: System
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4.5 System Including: Maintenance/Device Info/Set Time/User Admin Please note: 1. You can do factory default for your camera on this page, after default, please use our IP tool to search and find out new IP address and login;... -
Page 12: Intelligence
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4.6 Intelligence Our AI function is face detection. This category includes Face Comparison & Face Parameters. Please note: 1. We have face detection alarm out interface, so when face alarm output is needed in application, you can enable “Alarm output”;... -
Page 13: Pvm Function
SPECO 5MP IP HDMI DOME O5DH Brief Manual 4.4.7 PVM Function (Banner) Including: Screen/Brand Image/Deterrence Message. Screen: You can set screen direction with Normal/Corridor mode 90/Corridor mode 270/Invert. Brand Image: You can upload a picture and show on the IP video (PIP) Please note: 1.You can define the logo’s position and size on the monitor;... - Page 14 SPECO 5MP IP HDMI DOME O5DH Brief Manual Deterrence Message: You can upload a deterrence message (picture type), so when faces detected, the message will pop-up. Please note: 1. The deterrence picture must be PNG format and not more than 1MB.
