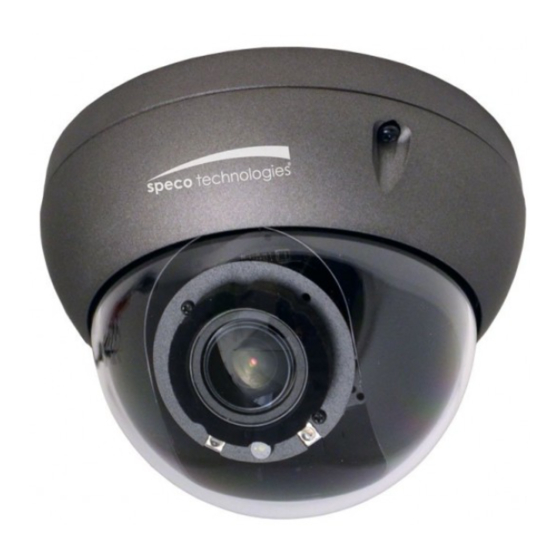

5 megapixel h.265 vandal resistant dome ip camera with motorized lens & super ir

Advertisement

Quick Links

O
O5D4M
5 Megapixel
xel H.265 Vandal Resistant
Vandal Resistant
Dome IP Camera
with Motorized Lens & Super IR
& Super IR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O5D4M and is the answer not in the manual?

Questions and answers

Summary of Contents for Speco O5D4M

  • Page 1 O5D4M 5 Megapixel xel H.265 Vandal Resistant Vandal Resistant Dome IP Camera with Motorized Lens & Super IR & Super IR...
  • Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only power adapters compatible with the unit. Be careful to prevent moisture or water penetration into the unit.
  • Page 3 ’ ’ Revision History Date Revision Details 12/15/2015 Initial version Rev.1.0 (Dec. 2015)
  • Page 4: Table Of Contents

    Getting Started ............................. 14 4.1. PC Requirement ..........................14 4.2. Quick Installation Guide ........................15 4.2.1. Connect PC and O5D4M to network..................15 4.2.2. Set IP parameters on O5D4M ....................15 4.2.3. Remote video connection to O5D4M..................16 4.2.4.
  • Page 5: Introduction

    In extreme darkness, adaptive, super IR LEDs can be used to illuminate the scene without IR saturation of the scene. Designed to be a stand-alone streaming audio & video transmission device, ONSIP O5D4M can be applied to various application area such as video security, remote video monitoring, distance education, video conference or internet broadcasting system.
  • Page 6: Specifications

    - IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP - RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnP Network Protocol - NTP, DNS, DynDNS Speco DDNS (free of charge) Dynamic IP - User ID & Password protection, IP address filtering Security...
  • Page 7 ’ ’ External Terminals 10/100BaseT LAN (auto MDIX) Analog output 1 channel D1 CVBS output Alarm input / output Alarm I/O (1 Sensor input & 1 Relay output) Factory Reset Supported Audio MIC/Line in, Line out Power DC 12V input Alternate Power Standard PoE IEEE802.3af...
  • Page 8: Product Description

    The product package contains the following the following: Contents Description Remarks Remarks O5D4M O5D4M O5D4M main unit + chameleon cover Screws ( Screws (2 type) Accessories L-type wrench type wrench, CVBS Cable Software & User’s Guide Software & User’s Guide...
  • Page 9: Physical Description

    ’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O5D4M 2.3.2. Dimensions Unit : mm Figure 2-2. Dimensions Rev.1.0 (Dec. 2015)
  • Page 10: External Connector

    ’ ’ 2.3.3. External Connector Sensor Input: white(+), Red(-) Relay Output: Black(+), Yellow(-) Line Output Network (LAN) Power Mic/Line Input Figure 2-3. Connector for external connection 2.3.4. Factory Default Switch Factory default switch is provided for returning the IP camera to factory default state. Unscrew the cover to access the switch.
  • Page 11: Functional Description

    Power: Power input for supplying Power input for supplying 12V DC power. Caution: If O5D4M is powered by PoE, do not plug in DC Jack with active DC power is powered by PoE, do not plug in DC Jack with active DC power is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.
  • Page 12 ’ ’ Sensor Input Connect external alarm sensor. Examples of sensing devices are infrared sensor, motion sensor, heat/smoke sensor, magnetic sensor, etc. Connect the two wires of the sensors to “Sensor Input”. The sensor type (NC/NO) can be set in admin page. Multiple sensor devices can be connected in parallel. NO/NC Type Open Collector Type Photo Coupler...
  • Page 13: On Site Installation

    ’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product.
  • Page 14: Getting Started

    Brief information for first time operation of O5D4M is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from O5D4M can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below:...
  • Page 15: Quick Installation Guide

    2. In the case of using PoE, connect the PC and In the case of using PoE, connect the PC and O5D4M to the network using one of the following ways. If to the network using one of the following ways. If...
  • Page 16: Remote Video Connection To O5D4M

    1. Connection through Web Viewer Web Viewer offers simplest way of video connection to Web Viewer offers simplest way of video connection to O5D4M. For video connection, enter the IP . For video connection, enter the IP address of O5D4M in the URL window of Internet Explorer as:...
  • Page 17 ’ ’ [e.g.] Port 8080 Connection to Admin Page Connection to Admin Page Basic Control Figure 4-3. Web Viewer Default ID and password of Admin Page are Default ID and password of Admin Page are “admin”, “1234”. For more detailed information, please refer to the For more detailed information, please refer to the “Configuration Guide”.
  • Page 18: Additional Settings Through Connection To The Admin Page

    ’ ’ 4.2.4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through “http://IP_Address:Port_Number/admin.htm”...
  • Page 19: Troubleshooting

    ’ ’ 5. Troubleshooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) In case of DC adapter If PoE is not applied, the power and network connection should be made through separate cables.
  • Page 20: Cannot Connect To The Video

    ’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~” message is returned ( in the figure below), the network connection is in normal ①...
  • Page 21: Technical Assistance

    ’ ’ 5.3. Technical Assistance If you need any technical assistance, please contact If you need any technical assistance, please contact technical support. For immediate service please . For immediate service please provide the following information. Model name 1 . 1 . 1 . 1 . MAC address and Registration number MAC address and Registration number 2 .
  • Page 22: Appendix A - Important Notice In Exchanging Sd Card (Micro Sd)

    ’ ’ Appendix A – Important Notice in Exchanging SD Card (Micro SD) SD Card is a non-volatile memory device for storing video and audio data on the product. Note that continuous recording to the SD Card will cause the memory cell to wear out, eventually resulting in failure. When you plug out the SD Card for replacement or other purpose, follow the steps below in order to prevent data loss or crash of the SD Card.
