Summary of Contents for Speco O5T2

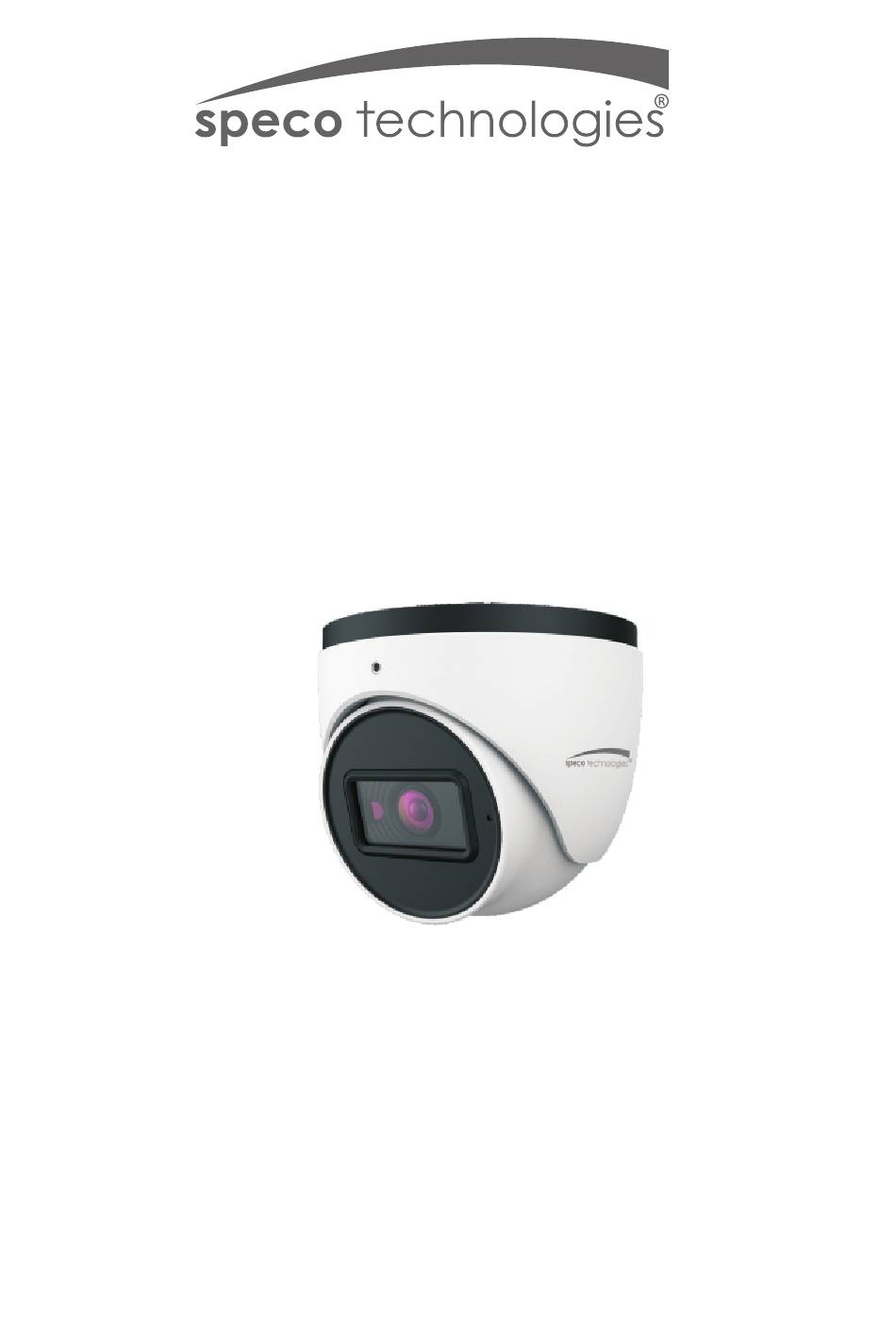

- Page 1 Quick Start Guide O5T2...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Camera Quick start guide Tapping screws × 3 Drill template ×3 Plastic plug Screwdriver Junction box Overview Overview Ethernet connector Audio input connector Power connector Mounting base Fixed screw Microphone Micro SD card slot Reset...
-
Page 5: Connecting Network Cable
DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and the junction box. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover ②... - Page 7 ③ Loosen the fixed screw to disassemble the camera. Then remove the cover from the dome to insert the SD card. After that, install the cover back to the dome and fix it firmly with the screws. (Note that the cover should not be installed unevenly .) Cover Fixed Screw Mounting Base...
- Page 8 ⑥ Adjust the camera to obtain an optimum angle. Before adjustment, preview the image of the camera on a monitor. After that, tighten the fixed screw to finish the installation. Fixed screw Web Operation and Login IP Scanner can search for the device on the local network.
- Page 9 The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. Or download from https://www.specotech.com/ip-scanner/ O5T2 5C:F2:07:24:68:9A ③ In the device list, you can view the IP address, model number, and MAC address of each device.
