SWITCHES
NOTE :
• Using the AUX-electrical-control-switch
requires the 14-pin coupler (option).

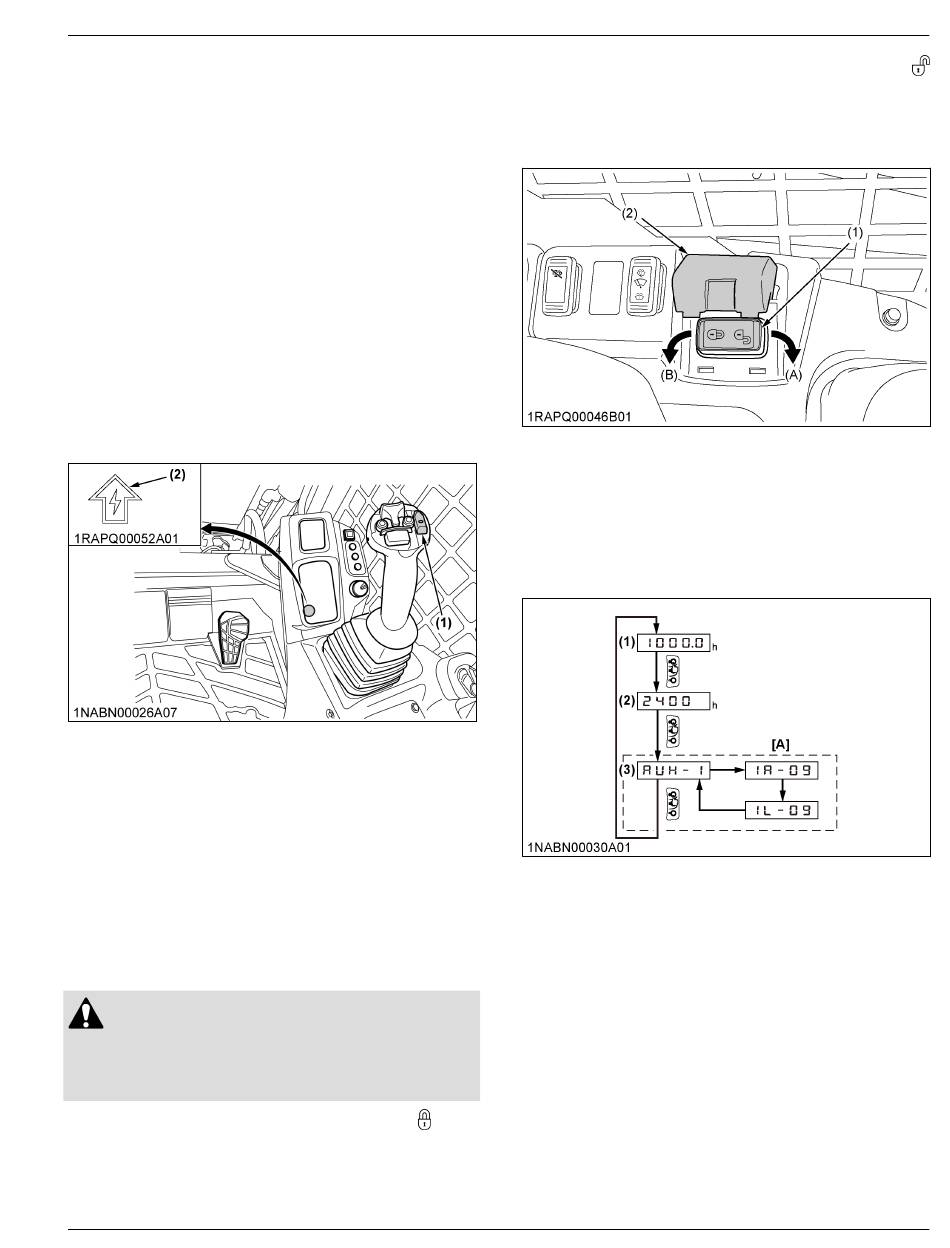

15. AUX electrical mode change
switch (option)
1. By pressing the
switch, the AUX-electrical-mode-change-function
will turn on.
The AUX-electrical-mode-change-indicator and a
light on the AUX-electrical-mode-change-switch will
light up.
2. By pressing the AUX-electrical-mode-switch again,
the AUX-electrical-mode-change-function will turn
off.
The AUX-electrical-mode-change-indicator and the
light on the AUX-electrical-mode-change-switch will
go off.
(1) AUX electrical mode change
switch (Multi Function model
only)
NOTE :
• Using the AUX-electrical-mode-change-switch
require the 14-pin coupler (option).
16. Hydraulic quick switch
[Hydraulic quick-hitch model only]
The hydraulic-quick-switch is used to attach and detach
an attachment by activating the hydraulic quick-hitch.
WARNING
To avoid personal injury or death:
• Make sure to close the cover when not
activating the hydraulic quick-hitch.
1. By moving the hydraulic-quick-switch to the
mark, the hydraulic quick-hitch get locked.
After cylinder is moved to locked position, always
check to be sure both pins are engaged to the
attachment.
SVL97-2
AUX-electrical-mode-change-
(2) AUX electrical mode change
indicator
(lock)
INSTRUMENT PANEL AND SWITCH
2. By moving the hydraulic-quick-switch to the
(unlock) marked position, the hydraulic quick-hitch
get unlocked.
After the hydraulic quick-hitch is unlocked, detach
the bucket, for example.
(1) Hydraulic quick-hitch switch
(2) Cover

17. Display selector switch

This display selector switch is used to select the display
indication.
Change the 2 or 3-mode display according to your jobs.
(1) Hour meter
(2) Tachometer
(3) Action mode selecting or
maximum flow volume set-
ting
(A) Unlock position
(B) Lock position
[A] High-flow model and the
AUX function is activated.
