June 2021© Kubota B2320 Series ROPS Cab Operator Manual
Kubota B2320 Series Cab

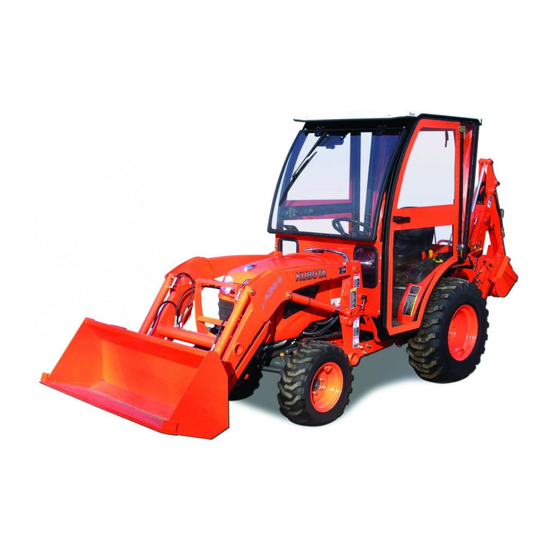

** Shown with optional equipment
Kubota B2320 Series Cab
This ROPS cab is designed and built to fit the Kubota B2320, B2620, andB2920.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
One year standard product warranty provided by Tektite.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2320 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kubota B2320 Series

Summary of Contents for Kubota B2320 Series

  • Page 1 June 2021© Kubota B2320 Series ROPS Cab Operator Manual Kubota B2320 Series Cab ** Shown with optional equipment Kubota B2320 Series Cab This ROPS cab is designed and built to fit the Kubota B2320, B2620, andB2920. Designed and Built by: Tektite Manufacturing Inc: 427 Buffalo Street P.O.
  • Page 2 June 2021© Kubota B2320 Series ROPS Cab Operator Manual Tektite Manufacturing Incorporated thanks you for purchasing a Kubota B2320 series ROPS cab! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
  • Page 3 June 2021© Kubota B2320 Series ROPS Cab Operator Manual Tektite Limited Warranty Tektite Manufacturing Inc. (“Tektite”) warrants to the original purchaser (the “Claimant”), that Tektite products will be free from defective materials or workmanship, under normal use and service, for a period of (1) full year from the original invoice date.

  • Page 4: Safety Precautions

    June 2021© Kubota B2320 Series ROPS Cab Operator Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS.

  • Page 5: Operating Safety

    June 2021© Kubota B2320 Series ROPS Cab Operator Manual General Safety 1. Never let an unqualified or untrained driver operate the tractor. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use.

  • Page 6: Maintenance Safety

    June 2021© Kubota B2320 Series ROPS Cab Operator Manual Safe Operation on Rough Terrain 1. Drive the tractor slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns.
  • Page 7 June 2021© Kubota B2320 Series ROPS Cab Operator Manual 9. Use your turn signals, checking for traffic well in advance of turning. If the tractor is not equipped with turn signals and law requires them, install them prior to operating on or near public roads.
  • Page 8 June 2021© Kubota B2320 Series ROPS Cab Operator Manual Operating Instructions Important The following section locates, identifies and briefly describes the functions of all cab controls. All operators should familiarize themselves with control location and function prior to operating the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or death to operators and bystanders.
  • Page 9 June 2021© Kubota B2320 Series ROPS Cab Operator Manual High position: On Note: indicator light activates when wiper is on. 3. Front Work Light Rocker Switch (optional) Low position: Off High position: On Note: indicator light activates when work lights are on.
  • Page 10 June 2021© Kubota B2320 Series ROPS Cab Operator Manual 4. Fan Rotary Switch (optional) Indicator mark above switch indicates whether fan is operational or not. 5. Temperature Control Rotary Switch (optional) Indicator mark at lower left corner indicates current temperature setting. Rotate to increase heat output or to decrease heat output of heating system.
  • Page 11 Index Service Part # File Name Description A00-0007 FAN-SWITCH 4-Position Fan Switch A00-0054 TEKT-0018 Fan Speed Control Knob A00-0055 TEKT-0019 Fir Tree Fastener A00-0065 TEKT-ASM-005 On-Off Switch w/Lens A00-0252 TEKT-0117 Water Valve Directly on Switch A00-0253 TEKT-0119 Right Switchplate Decal, 2014 Update A00-0282 SCREW-3-16X3-4 Screw, Self-Tap, 3/16"...
  • Page 12 Index Service Part # File Name Description A00-0055 TEKT-0019 Fir Tree Fastener A00-0063 LEFT-CAB-SWITCHPLATE Left Switchplate A00-0064 LEFT-CAB-SWITCHPLATE-DECAL Left Switchplate Decal A00-0065 TEKT-ASM-005 On-Off Switch w/Lens A00-0066 TEKT-ASM-006 On-Off-On Rocker No Lens A00-0067 TEKT-ASM-007 Mom-Off-Mom Rocker Switch Tektite Manufacturing Inc. SCALE 1.000 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada...
  • Page 13 Index Service Part # File Name Description A00-0076 TEKT-0026 1/4" Panel Nut A00-0089 TEKT-0059 Heater Core A00-0090 TEKT-0065 Upper Blower Housing A00-0091 TEKT-0066 Blower Housing Lower A00-0100 FLANGE_BOLT_1-4X1-2 Flange Bolt, 1/4" x 1/2", YD A00-0157 TEKT-ASM-015 Bottom Heater Shroud Weldment A00-0158 TEKT-ASM-014 Top Heater Shroud Weldment...
  • Page 14 Index Service Part # File Name Description A00-0006 TEKT-0074 Cabin Air Filter A00-0016 TEKT-0075 Domelight LED A00-0017 305-1002 Panto Mount Plate A00-0025 BALL-LOUVER 2 1/2" Ball Louver A00-0026 OSCILLATING-FAN Oscillating Fan A00-0038 TEKT-0076 3" Plug A00-0055 TEKT-0019 Fir Tree Fastener A00-0070 REID-KBP-262-KBP-265 Knob, Knurled, 1/4"...

  • Page 15: Roof Assembly

    Index Service Part # File Name Description A00-0008 TEKT-0077 Front Turn Signal Light LED, Amber A00-0009 TEKT-0079 Oval LED Light Grommet A00-0010 TEKT-0078 Round Grommet, LED Light A00-0011 TEKT-0080 Round Turn Light A00-0078 RED-DOT-CONDENSOR Red Dot Condensor 77R1602 K04-0001 KUF2880-ROOF Roof Tektite Manufacturing Inc.
  • Page 16 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0046 TEKT-ASM-002R Side Window Hinge Right A00-0056 TEKT-0020 Side Window Latch, L60775 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD...
  • Page 17 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0044 TEKT-ASM-002 Side Window Hinge Weldment A00-0057 TEKT-0020MIR Side Window Latch, L60776 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD...
  • Page 18 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0002 LEFT-LATCH Suicide Door Left Latch A00-0013 TEKT-0009 5MM Bushing A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4"...
  • Page 19 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0003 RIGHT-LATCH Suicide Door Right Latch A00-0013 TEKT-0009 5MM Bushing A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4"...
  • Page 20 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 THICK-BUSHING 8MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR...

  • Page 21: Windshield Assembly

    Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 THICK-BUSHING 8MM Bushing A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD K04-0004 KUB2320-028 Windshield Glass K04-0010 KUB2320-052 Windshield Seal Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC:...
  • Page 22 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 THICK-BUSHING 8MM Bushing A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD K04-0012 KUB2320-029 Lower Front Window K04-0013 KUB2320-106_ Lower Front Window Seal Tektite Manufacturing Inc.
  • Page 23 Index Service Part # File Name Description KUB2320-ASM-12 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD A00-0084 TEKT-0070 Gas Shock A00-0085 TEKT-0069 Gas Shock Stud K04-0014...
  • Page 24 Index Service Part # File Name Description KUB2320-ASM-13 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0023 FLANGE_BOLT_1-4X3-4 Flange Bolt, 1/4" x 3/4", YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD A00-0061 TEKT-0021 Striker Mounting Plate A00-0084 TEKT-0070 Gas Shock A00-0085 TEKT-0069 Gas Shock Stud A00-0101 STRIKER-PIN Striker Pin...
