Tascam iXZ - Mic & Guitar Interface Manual

Before connecting and using the unit, please take time to read this manual thoroughly to ensure you understand how to properly set up and connect the unit, as well as the operation of its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference.

IMPORTANT SAFETY INFORMATION

• Do not use this apparatus near water.
• Clean only with dry cloth.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Avoid installing this unit on top of any heat-generating electrical device such as a power amplifier.
• If the unit is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using.

Summary of this device

• This device is a microphone/guitar interface for recording sound using software compatible with a microphone input by connecting an iOS or Android device*.
  * 4 pole terminal (CTIA) required.
• This device is equipped with XLR with an internal phantom power supply and a standard combo jack.
• This device is compact and portable, and can operate with only two alkaline or nickel hydride "AA" batteries.

Items included with this product

This product includes the following items.

Take care when opening the package to avoid damaging the items. Keep the packing materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

• iXZ Package x1
• Owner's Manual (this document) including warranty x1
• AA alkaline batteries x2

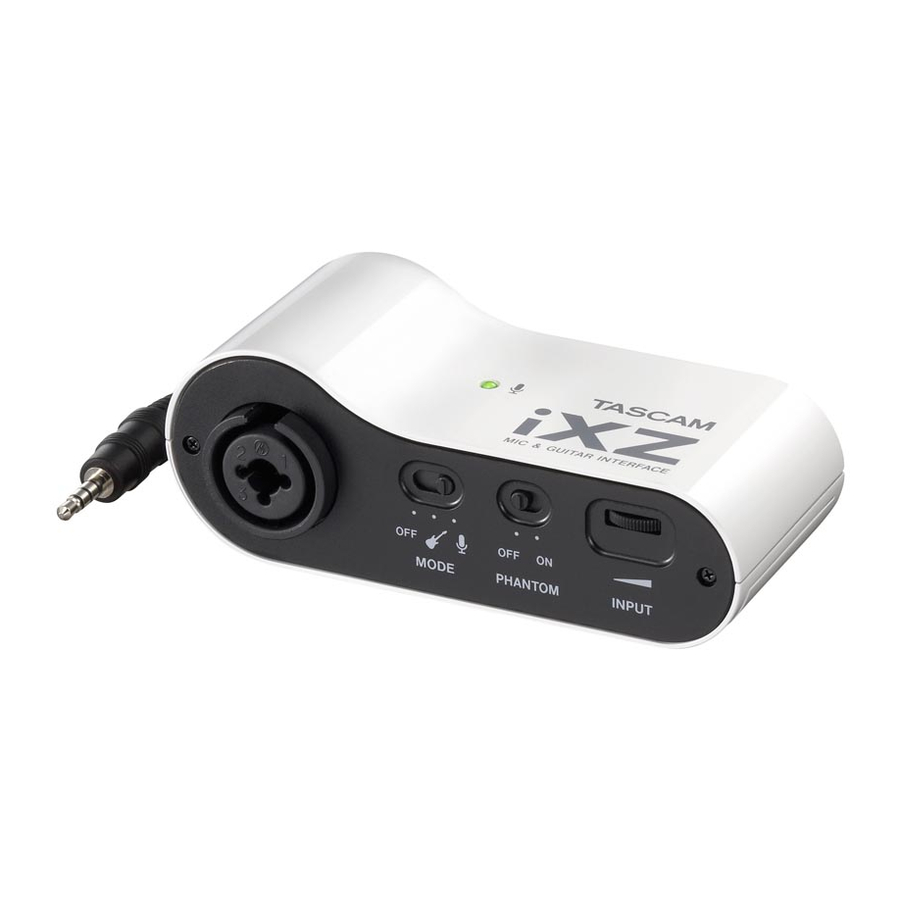

Part Names

1. 4P mini-plug cable
   A cable with 3.5mm 4P jack plug (about 160mm in length).
   For connecting to the headphone jack of an iOS or Android device*.
   Monophonic sound from this device is output to an iOS or Android device, and headphone sound output from the iOS or Android device is input to this device.
   * 4 pole terminal (CTIA) required.
2. Microphone Indicator
   When converting the MODE (input) into microphone, [] this Indicator starts blinking.
   If the Indicator becomes dim, replace the batteries with new ones.
3. MODE Switch
   Change according to the input.
   When connecting the XLR plug of a microphone, [] select "Microphone".
   When connecting the standard plug of a guitar, [] select "Guitar".
   When not in use, leave the switch off.
4. Phantom Switch
   Switch on when a condenser microphone is connected.
   Provides a power supply to operate a condenser microphone.
   When switched on, a red mark appears on the back of the switch.
   When a condenser microphone is not used, leave the switch off.
5. INPUT Volume
   This is for adjusting the input level of sounds from the connected microphone, and will output to an iOS or Android device.
6. Microphone / Guitar Input Terminal
   This is combo jack for XLR and standard mono. The mono standard plug of a guitar or the XLR plug of a microphone can be connected.
   Note
   It is recommended to use a microphone working with under 5.0mA phantom current. When you connect line equipment to the XLR terminal, use it with the phantom power off; otherwise, the connected equipment may be damaged.
   (Please note that microphones with 6.3 mm-plug cannot be used with this terminal.)
7. Headphone terminal
   You can monitor the output of headphone sounds from an iOS or Android device by connecting to the headphone jack.

Connecting

Connect a microphone or guitar to the microphone/guitar input terminal on the front, and connect the 4P mini plug cable on the rear to the headphone jack of an iOS or Android device*. Additionally, sound output can be monitored by connecting a pair of headphones to the headphone terminal on the rear. (See the diagram below)

* 4 pole terminal (CTIA) required.

Replacing the batteries

Two alkaline or nickel hydride "AA" batteries can be used in this device.

Slide and remove the battery case cover on the upper surface of this device and insert two "AA" batteries, aligning their position to the and marks inside the case. Then reattach the battery case cover.

(See the diagram below)

Note
This device will operate without batteries loaded when connected using a 6.3mm plug. (You cannot use the INPUT Volume.)

Specifications

Input-Output Rating

Microphone/Guitar Input Terminal

• Microphone input
  Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  Input Impedance: 2.4kΩ
  Input Level: -42dBu (INPUT Volume is set to the maximum)
  +2dBu (INPUT Volume is set to the minimum)
  Maximum Input Level: +2dBu
• Guitar Input
  Connector: 6.3mm (1/4") Mono standard jack
  Input Impedance: 470kΩ
  Maximum Input Level: -10.0dBV

Headphone terminal
Connector: 3.5mm (1/8") Stereo mini jack

iOS or Android device connection cable
Plug: 3.5mm(1/8") 4P mini plug

Standard rating

Power supply:
Two alkaline or nickel hydride "AA" batteries used (for microphone input)

Power consumption:
Approximately 0.32W (with phantom current 5.0mA)

Battery duration (for continuous use):
When using alkaline batteries (EVOLTA): about 15 hours (with phantom current 5.0mA)

Dimensions:
106 x 40 x 45mm (width x height x depth)

Weight:
93g (excluding batteries)

Operation temperature:
from 5 to 40 SDgrC

* Some illustrations used in the instruction manual may differ in part from the device.

* Design and specifications may change without notice due to improvements made to the device.

Cleaning the unit

Use a dry soft cloth to wipe the unit clean. Do not clean the unit with a chemically treated cloth or substances such as benzene, thinner and alcohol because they might cause damage to the surface of the unit.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site: http://teac-global.com/

In the TASCAM Downloads section, select the desired language to open the Downloads website page for that language.

Product registration

Customers in the USA, please visit the following TASCAM website to register your TASCAM product online (https://tascam.com/us/).

About TASCAM customer support service

TASCAM products are supported and warrantied only in their country/ region of purchase.

To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site (http://teac-global.com/), search for the local company or representative for the region where you purchased the product and contact that organization.

When making inquiries, the address (URL) of the shop or web shop where it was purchased and the purchase date are required.

Moreover, the warranty card and proof of purchase might also be necessary.
