Tascam US-1x2 - USB Audio Interface Manual

IMPORTANT SAFETY PRECAUTIONS

For U.S.A.

INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment.

For Canada

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA.

This product complies with the European Directives request and the other Commission Regulations.

Declaration of Conformity

Model Number: US-1×2
Trade Name: TASCAM
Responsible party: TEAC AMERICA, INC.
Address: 1834 Gage Road, Montebello, California, U.S.A.
Telephone number: 1-323-726-0303

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT SAFETY PRECAUTION

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
    Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.
• If you are experiencing problems with this product, contact TEAC for a service referral. Do not use the product until it has been repaired.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
•
  for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.
• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFER- RAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCE- DURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE

For European Customers

Disposal of electrical and electronic equipment

1. All electrical and electronic equipment should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. By disposing of the electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
3. Improper disposal of waste equipment can have serious effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment.
4. The crossed out wheeled dust bin symbol indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
5. The return and collection systems are available to the end users. For more detailed information about disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Introduction

Thank you for your purchase of the TASCAM US-1x2 USB Audio Interface.

Before connecting and using this unit, please take time to read this manual thoroughly to ensure you understand how to properly set it up and connect it, as well as how to use its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference.

Should the contents of the memory of a connected device (including hard disks and optical discs) in the same system as this unit be lost, our company will bear no responsibility for repair, including for compensation.

Included items

This product includes the following items.
Keep the packing materials for transportation in the future.
Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

• Main unit x1
• USB cable x1
• Set of DAW software installation guides x1
• Owner's Manual (this document) including warranty x1

Note about the Reference Manual

This Owner's Manual explains the main functions of this unit. Please see the Reference Manual for information about all the unit's functions.
You can also download this Owner's Manual and the Reference Manual from the TEAC Global Site (http://teac-global.com/).

Precautions for placement and use

• The operating temperature range of this unit is 5–35°C.
• Do not install this unit in the following types of locations. Doing so could make the sound quality worse or cause malfunction.
  • Locations with frequent vibrations
  • Near windows or other places exposed to direct sunlight
  • Near heating equipment or in other locations that become very hot
  • Extremely cold places
  • Very humid or poorly ventilated locations Very dusty locations
• To enable good heat dissipation, do not place anything on top of the unit.
• Do not place this unit on top of a power amplifier or other device that generates heat.

Using the TEAC Global Site

You can download the Owner's Manual necessary for this unit from the TEAC Global Site (http://teac-global.com/).

1. Open the TEAC Global Site (http://teac-global.com/).
2. In the TASCAM Downloads section, click the desired language to open the Downloads website page for that language.

NOTE:
If the desired language does not appear, click Other Languages.

3. Click the product name in the "Search by Model Name" section to open the Downloads page for that product.
4. Select and download the Owner's Manual that are needed.

Beware of condensation

Condensation could occur if the unit is moved from a cold place to a warm place, it is used immediately after a cold room has been heated or it is otherwise exposed to a sudden temperature change.
To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it.

Cleaning the unit

To clean the unit, wipe it gently with a soft dry cloth.
Do not wipe with chemical cleaning cloths, benzene, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration.

User registration

Customers in the USA, please visit the TASCAM website (http://tascam.com/) to register as a user online.

Names and functions of parts

Front panel/Rear panel

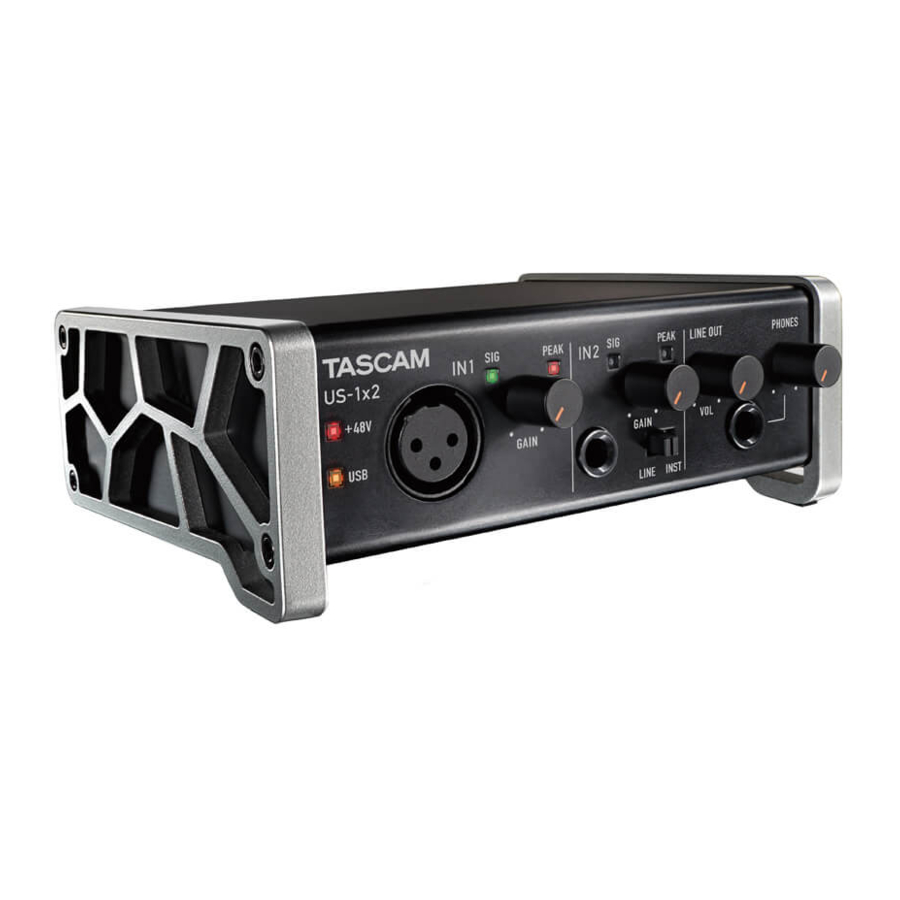

Front Panel

Rear Panel

1. PHANTOM indicator
   The indicator lights when the phantom power switch(o) of the rear panel is set to ON.
2. SIG indicators
   The SIG indicators light green when signals (of at least −32 dBFS) are input through the IN1/IN2/LINE IN L-R jacks (8/9/u).
3. PEAK indicators
   The PEAK indicators light red when signals that are about to distort (−1 dBFS or higher) are input through the IN1/IN2/LINE IN L-R jacks (8/9/u).
4. GAIN knob
   Use to adjust the input levels of the IN1/IN2 jacks (8/9).
5. LINE OUT knob
   Use to adjust the output level of the LINE OUT L-R jacks (i).
6. PHONES knob
   Use to adjust the output level of the PHONES jack (q).

Before connecting headphones, minimize the volume with the PHONES knob. Failure to do so might cause sudden loud noises, which could harm your hearing or result in other trouble.

7. USB indicator
   This lights when the USB connection is working.
8. IN1 jacks
   This mic level XLR jacks are balanced input jacks.
9. IN2 jacks
   This input jacks are standard TRS jacks.
   Use the LINE/INST switches (0) on the front of the unit to enable balanced line (LINE) input or unbalanced (INST) input for the standard TRS jacks.
10. LINE/INST switches
    Set according to the IN2 jack (9) input sources.
    Set to LINE when connecting electronic instruments, audio devices and similar equipment. Set to INST when connecting an electric guitar, electric bass or other equipment with high output impedance.
11. PHONES jack
    Use this standard stereo phone jack to connect stereo headphones. Each of these jacks outputs the same signal of the rear panel as the LINE OUT L–R jacks(i). Use an adapter to connect headphones with a mini plug.
12. DC IN 5V connector (Micro USB type)
    When connected to an iOS device or other equipment that cannot power this unit, you must use a USB power adapter, mobile battery or other power supply. See "When using an iOS device" for details.
13. Kensington Security Slot
14. USB port (USB-B type)
    Use the included USB cable to connect the unit to a computer or an iOS device. (Supports USB 2.0)
15. DIRECT MONITOR switch
    Set this to ON when you want to monitor the input source directly. When set to ON, you will be able to set the input source volume (Low/Mid / High) using the Settings Panel application described below.
16. INPUT SELECT switch
    Set according to the input sources.
    Set to FRONT when connecting to IN1/IN2 jacks (8/9) of the front panel. Set to REAR when connecting to LINE IN L-R jacks (u) of the rear panel.
17. LINE IN L-R jacks
    These RCA pin jacks are analog line inputs.
18. LINE OUT L-R jacks
    These RCA pin jacks are analog line inputs.
19. Phantom power switch
    Use this switch to provide +48V phantom power to the IN1 jacks(8).

Installing the dedicated software

To use this unit, a dedicated software must be installed on a computer. Download the latest dedicated software for the operating system you are using from the TEAC Global Site (http://teac-global.com/).

• On a Windows computer, this will install the Windows driver and Settings Panel application.
• Installing the dedicated software on a Mac will install only the Mac Settings Panel application. The standard OS driver will be used.
• With an iOS device, the standard OS driver will be used, so there is no need to install any.

Before starting to install software, quit other applications.

Installing the Windows dedicated software

Follow the procedures below to install the Windows dedicated software.

• Complete installation of the Windows dedicated software on the computer before connecting the unit to it with the USB cable.
• If you connected the unit to the computer using the USB cable before installing the Windows dedicated software and the "Found New Hardware Wizard" launched, close the Wizard and disconnect the USB cable.

Windows dedicated software installation procedures

1. Download the latest Windows dedicated software for the operating system you are using from the TEAC Global Site (http://teac-global.com/) and save it on the computer to be used with the unit.
2. Uncompress the saved software (zip file) on the computer desktop or another location.
3. Double-click the "TASCAM_US-1x2_Installer_x.xx.exe" file in the folder that appears after uncompression to automatically launch the installation software.
4. When a "Security Warning" or "User Account Control" screens appears, click the "Yes" button.
5. When the Setup Wizard screen appears, click the "Next" button.(Fig. A) Read the contents of the License Agreement, and select "I accept the agreement" if you agree to the terms.

   (Fig. A)


   (Fig. B)
6. Next, click the "Install" button.(Fig. C)
   Start installation.(Fig. D)

   (Fig. C)


   (Fig. D)

7. The following screen appears when installation has completed. Click the "Finish" button.

   This quits the installer and launches the Windows Settings Panel.

NOTE:
The first time you connect the unit by USB to the computer after installing the software, installation of the device driver will be executed. Some time might be necessary before the unit is recognized because Windows Update will be automatically searched at this time. If the unit is still not recognized after a while, open the software installation screen from the notification area at the bottom right of the computer display, and click "Skip obtaining driver software from Windows Update" to stop the search.

Installing the Mac dedicated software

NOTE:

• Install the Mac dedicated software on the computer before connecting the unit to it with the USB cable.
• Depending on the Gatekeeper setting, a warning message might appear during installation. For information about Gatekeeper, see "Working with Gatekeeper" in "Installation" of the Reference Manual.

Mac dedicated software installation procedures

1. Download the latest Mac dedicated software for the operating system you are using from the TEAC Global Site (http://teac-global.com/) and save it on the computer to be used with the unit.
2. Double-click "TASCAM_US-1x2_Installer_x.xx.dmg", which is the saved disk image file for the Mac dedicated software, and double-click "US1x2_Installer.pkg" inside the folder that opens.(Fig. A) When the installer starts, click the "Continue" button. (Fig. B)


NOTE:
Depending on the computer's settings, the downloaded zip file might not have been uncompressed automatically. In this case, uncompress the zip file first and then double-click the disk image file.

3. Next, select the desired language and click the "Continue" button. (Fig. C) Click the "Read License" button and check the contents of the Software License Agreement. If you agree to the contents of the license, click "Agree". (Fig. D)



4. Next, click the "Install" button to start installation. (Fig. E)
   The following screen appears when installation has completed. Click the "Close" button. (Fig. F)


Connecting the power

When using a computer (Windows/Mac)

Normally, when this unit is connected to a computer, it will operate using USB bus power, so connecting a separate power supply device is not necessary.

When using an iOS device

When this unit is connected to an iOS device, connecting an external battery, USB power adapter or other power supply device is necessary in order to power the unit.
Connect an AC adapter (TASAM PS-P520E), external battery pack (TASCAM BP-6AA) or the genuine Apple USB power adapter included with the iPad/ iPhone to a USB cable (sold separately), and connect it to the DC IN 5V port (w).

• No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5 V and a current of at least 700 mA) separately.
• Operation with other external battery packs and USB power adapters is possible, but we strongly recommend using a TASCAM PS-P520E AC adapter, TASCAM BP-6AA external battery pack or the genuine Apple USB power adapter included with the iPad/iPhone.
  When using another external battery pack or USB power adapter, be sure that the power supply device meets the following specifications.
• Supplied voltage: 5 V
• Supplied current: 700 mA or more
  Using a power supply device when the specifications are other than the above could cause malfunction, overheating, fire or other problems. If anything abnormal occurs, stop use and contact the retailer where you purchased the unit or a TEAC service center to request repair.

Making various settings

Opening the Settings Panel 8 Windows

From "All Apps" (All Programs), select "US-1x2 Settings Panel" under "TASCAM".
The Windows Settings Panel has three pages. Click a tab at the top of the Settings Panel to open that page.

Home: This page shows a variety of information and allows the selection of presets suitable for specific operations.
Settings: Make detailed settings for the US-1x2 on this page.
Custom: Make software mixer settings.

Mac

Select "US-1x2_SettingsPanel" from the Applications folder and launch it to open the Mac Settings Panel on the computer display.

Making settings on the Home page (Windows only)

The Operating Mode setting can be set on the Home page of the Windows Settings Panel.

Windows Settings Panel Home page

"DAW"
Use this setting when using DAW software, as well as when you do not need "BROADCAST/KARAOKE" mode (for live broadcasting or karaoke applications).

"BROADCAST/KARAOKE"
Use this setting for live broadcasting, karaoke and similar applications.
This preset enables the loopback function. It mixes the sound output from the computer with the sounds of mics input through the IN1/IN2/LINE IN L-R jacks (8/9/u) on the unit and sends the mix back to the computer.

"TALKING"
Use this setting for voice calling and similar applications.
This preset disables the loopback function.
The sound output from the computer (including received voices and music playing on the computer) is not sent back to the computer.

"CUSTOM"
Use the settings made on the Custom page.

Making settings on the Settings page (Windows) / Settings Panel (Mac)

Settings can be made on the Settings page of the Windows Settings Panel or on the Mac Settings Panel.

Windows Settings Panel Settings page

Mac Settings Panel

1. Direct Monitor Settings IN 1-2
   Set the monitoring signal for the IN1/IN2/LINE IN L-R jacks (8/9/u) to Mono or Stereo.
2. Input Volume
   Use this to adjust the monitoring balance between the input signals from this unit's input jacks and the output signals from the computer.
3. Audio Input ON
   Turn input on/off for each input separately.
4. Buffer Size item (Windows only)
   Set the size of the buffer used when audio input and output signals are transferred to and from the computer.

For details about other settings, see "Windows Settings Panel overview" or "Mac Settings Panel overview" in "Using the Settings Panel" of the Reference Manual.

Connecting other equipment

Example (front)

Example (back)

*NOTE:
When using an iOS device, you must also connect an external battery pack or USB power supply to assure power.

• Before making connections, turn this unit and all equipment to be connected off (standby).
• The phantom power affects both input channels simultaneously. Do not turn phantom power on when connecting a mic that does not require phantom power.
• Set the phantom power switch to +48V only when using a condenser microphone that requires phantom power.
• Turning phantom power +48V when a dynamic mic or other mic that does not require it is connected could damage this unit and connected equipment.
• Do not connect or disconnect mics while phantom power is on. Doing so could cause a loud noise and might damage this unit and connected equipment.
• Set the LINE OUT and PHONES knobs to their minimum values before turning phantom power on/off. Depending on the connected mics, sudden loud noises from monitoring equipment could occur, and this could damage the equipment or harm hearing.
• When using condenser mics that require phantom power and dynamic mics together, be sure to use balanced dynamic mics. Unbalanced dynamic mics cannot be used when phantom power is enabled.
• Supplying phantom power to some ribbon mics will break them. If you are unsure, do not supply phantom power to a ribbon mic.

Connecting with iOS devices

To connect an iOS device, you will need a Lightning to USB Camera Adapter(*1) and an external power supply device(*2).

1. *You must obtain a genuine Apple Lightning to USB Camera Adapter separately.
2. *Use a power supply device as described in "Connecting the power" in this manual.

Adjusting the input sound

Analog audio signals input into this device from mics, guitars, keyboards and other audio equipment can be converted into digital signals and transmitted to the computer via USB.

You can use the features of this unit to adjust the digital signals that are sent to the computer.

In addition, by connecting speakers (through an amplifier if not powered) or headphones to this unit, you can monitor audio signals that are input to this unit and output from the computer.

Use the various controls on the front of the unit as necessary while listening to the input sound.

Example

Use the GAIN knobs (3) to adjust the analog input levels of the IN1/IN2 jacks (1) so that the PEAK indicators (2) above and to the right of the GAIN knobs do not light.
To listen to the monitoring signal using headphones, connect the headphones to the PHONES jack (4) and adjust the PHONES knob (5).

NOTE:

• If you cannot hear the input sound through the headphones or the LINE OUT L-R jacks, check the settings of the 4 LINE OUT L-R item on the Settings Panel screen
• Confirm that the DIRECT MONITOR switch is set to ON.

Troubleshooting

Please read this chapter if you are unable to use the unit properly even after setting it up following the procedures in this manual.
If you are still unable to resolve your problems please contact the store where you bought the unit or TEAC customer support with the following information about the operating environment and details about the trouble.

Operating environment

• Computer manufacturer:
• Model:
• CPU:
• Memory (RAM):
• Operating system:
• Applications used:
• Antivirus software:
• Wireless LAN use:

See the contact information on the front of this document.

I cannot install the dedicated software

1. Check the operating system
   The operating system being used might not be compatible with the software that you are trying to install.
   Check the compatible operating system of the software you are trying to install again.
2. Stop software running in the background
   Antivirus software and other software that runs in the background can prevent installation.
   Quit software that runs in the background and try installation again.

The unit is connected, but the computer does not recognize it.

1. Install the dedicated software

• Install the dedicated software.
  Please refer to "Installing the dedicated software" this manual.

2. Change the USB port

• This unit cannot be used with USB 1.1. Use a USB 2.0 or USB 3.0 port.
• Do not use a USB hub with this unit. Always connect the unit directly to a USB port on the computer.
• If the above methods do not resolve the problem, connect the unit to a different USB port on the computer.

I cannot hear any sound even when audio is played back on the computer.
Check the status of the unit's connection with the computer.
Moreover, if you make the following settings, sound will be output through this unit, but no sound will be output by the computer's speakers or headphone jack.

Windows

See the "Windows Media Player" section of "Application guide" in the Reference Manual, and make settings as necessary for the OS.

Mac

1. Quit all applications and open "System Preferences..." from the Apple menu.
2. Open "Sound".
3. On the Output tab, select "US-1x2".
   After completing the setting, restart the computer and check the sound of playback.
   Depending on the application that you are using, you might need to make additional device settings.
   In particular, DAW software operates using audio engines with settings that are different from the OS settings, so confirm the DAW driver settings first after installing the software for this unit.
   Please see the manuals for the applications that you are using for detailed setting procedures.

Sound breaks up or there is noise.
The processing load on the computer causes sound to break up and noise to occur.
Here are some methods to reduce the load on the computer.

1. A wireless LAN and software running in the background, including antivirus software, regularly put processing loads on the computer, which can cause sound to break up and other noise.
   Stop wireless LAN transmission, antivirus software and other software running in the background when using this unit.
2. Set the buffer size (latency) in the audio application that you are using or in this unit's Settings Panel to a larger value. (Windows only)

NOTE:
Consult the maker of the audio application that you are using for methods to reduce its load on your computer.

3. Change the settings of your computer so that they are optimal for audio processing.

Using Windows

• Performance Options

1. Open the Control Panel using the procedures for the OS (Windows 10/Windows 8.1/Windows 7).

• In Windows 10, click "Control Panel" from the Windows Start button to open the Control Panel.
  Then, click the "System" icon.
• In Windows 8.1, right-click the ordinary Start screen (Metro user interface screen) and then click "All apps".
  Then, right-click "Computer" and select "Properties".
• In Windows 7, right-click "Computer" from the Windows Start button, and select "Properties".

2. Click "Advanced system settings".
3. Click "Settings" in the "Performance" section of the "Advanced" tab of the "System Properties" window.
4. In the "Visual Effects" tab of the "Performance Options" window, select "Adjust for best performance".

• Power Options

1. Open the Control Panel using the procedures for the OS (Windows 10/Windows 8.1/Windows 7).
2. Click "Hardware and Sound"
3. Click "Power Options"
4. Click "Show Additional Plans"
5. Click on "High Performance" in the Power Options

NOTE:
If an item is not shown, select the "Show Additional Plans" downward triangular button.

Using Mac

1. Open "System Preferences..." from the Apple menu, and select "Energy Saver".
2. Set "Computer sleep" to "Never".
3. Set "Display sleep" to "Never".

NOTE:
Depending on the Mac OS version and Macintosh computer model, this setting might not be available.

Support for Bundled DAW Software

TASCAM does not provide end-user support for the bundled DAW Software. Please check the Help menu of the installed software to find where this support is available.

Specifications

Ratings
Sampling frequencies: 44.1, 48, 88.2, 96 kHz
Quantization bit depth: 16/24-bit

Analog inputs

IN 1 input
Mic input (Balanced)
Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input impedance: 2.4kΩ
Rated input level: −65dBu (0.0004Vrms) (gain knob at MAX)
Rated input level: −8dBu (0.3090Vrms) (gain knob at MIN)
Maximum input level: +8dBu (1.9467Vrms)
Gain range: 57dB

IN 2 input
LINE/INST input (Balanced/Unbalanced)
Connector: 6.3 mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Gain range: 45dB

LINE input (Balanced)
(LINE INST switch set to LINE)
Input impedance: 10kΩ
Rated input level: −41dBu(0.0069Vrms) (gain knob at MAX)
Rated input level: +4dBu(1.228Vrms) (gain knob at MIN)
Maximum input level: +20dBu(7.75Vrms)

INST input (Unbalanced)
(LINE INST switch set to INST)
Input impedance: 1MΩ or more
Rated input level: −58dBV(0.0013Vrms) (gain knob at MAX)
Rated input level: −13dBV(0.2239Vrms) (gain knob at MIN)
Maximum input level: +3dBV(1.4125Vrms)

LINE L/R inputs (Unbalanced)
Connectors: RCA pin jacks
Input impedance: 10kΩ
Maximum input level: +6dBV(1.9953Vrms)

Analog outputs
LINE OUT L-R outputs (Unbalanced)
Connectors: RCA pin jacks
Output impedance: 100Ω
Maximum output level: +6dBV(1.995Vrms)

Headphones output (PHONES)
Connector: 6.3mm (1/4") standard stereo jack
Maximum output: 18 mW + 18 mW or higher (THD+N 0.1% or less, into 32 Ω load)

Control input/output ratings
USB
Connector: 4-pin USB B-type
Transfer rate: USB 2.0 High Speed (480 Mbps)
DC IN 5V
Connector: USB Micro B type

Audio performance
Mic preamp EIN (equivalent input noise)
−127 dBu or less
(150Ω termination with gain knob at MAX)

Frequency response
IN 1-IN 2 to LINE OUT L-R, PHONES
44.1 kHz, 48 kHz
20 Hz: +0 dB/−0.5 dB (JEITA)
20 kHz: +0 dB/−0.5 dB (JEITA)
20 kHz: +0 dB/−1.0 dB (PHONES output, JEITA)

88.2 kHz, 96 kHz
20 Hz: +0 dB/−0.5 dB (JEITA)
40 kHz: +0 dB/−1.0 dB (JEITA)
40 kHz: +0 dB/−3.0 dB (PHONES output, JEITA)

S/N ratio
100 dB or more (22 kHz LPF + A-Weight)
(when LINE input to LINE OUT and gain knob at MIN in standalone mode*) (JEITA)

Distortion
0.006% or less
(when LINE input to LINE OUT in standalone mode* for 1 kHz sine wave at rated input and maximum output levels) (JEITA)

Crosstalk
95 dB or more
(when LINE input to LINE OUT in standalone mode* for 1 kHz sine wave) (JEITA)

* When this unit is turned on and is not connected to a computer by USB

Computer system requirements

Check the TEAC Global Site (http://teac-global.com/) for the latest information about supported operating systems.

Windows

Supported operating systems
Windows 10 32-bit / Windows 10 64-bit
Windows 8.1 32-bit / Windows 8.1 64-bit
Windows 7 32-bit SP1 or later / Windows 7 64-bit SP1 or later
( Windows 8, Windows Vista and Windows XP are not supported)

Computer hardware requirements
Windows computer with a USB 2.0 port
CPU/processor speed
2 GHz or faster dual core processor (x86)

Memory
2 GB or more

Operation of this unit was confirmed using standard computers that meet the above requirements.
This does not guarantee operation with all computers that meet the above requirements.
Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions

Mac

Supported operating systems
macOS Sierra (10.12 or later)
OS X El Capitan (10.11 or later)
OS X Yosemite (10.10 or later)

Computer hardware requirements
Mac with a USB 2.0 port
CPU/processor speed
2 GHz or faster dual core processor

Memory
2 GB or more

Apple iOS devices

Apple iOS device running iOS 7 or later

Supported audio drivers
Windows: ASIO2.0, WDM
Mac: Core Audio
iOS device: Core Audio for iPhone

General

Power
Used with a computer
USB bus power

Used with an iOS device
USB power adapter: ( that can supply 5 V and a current of at least 700 mA)*
External battery pack: ( that can supply 5 V and a current of at least 700 mA)**

* We strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5 V and a current of at least 700 mA) separately.
** We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5 V and a current of at least 700 mA.

Power consumption
2.5W

External dimensions (width × height × depth)
146 × 55 × 120 mm

Weight
623g

Operating temperature range
5–35°C

• Illustrations in this manual might differ in part from the actual product.
• Specifications and external appearance might be changed without notification to improve the product.
