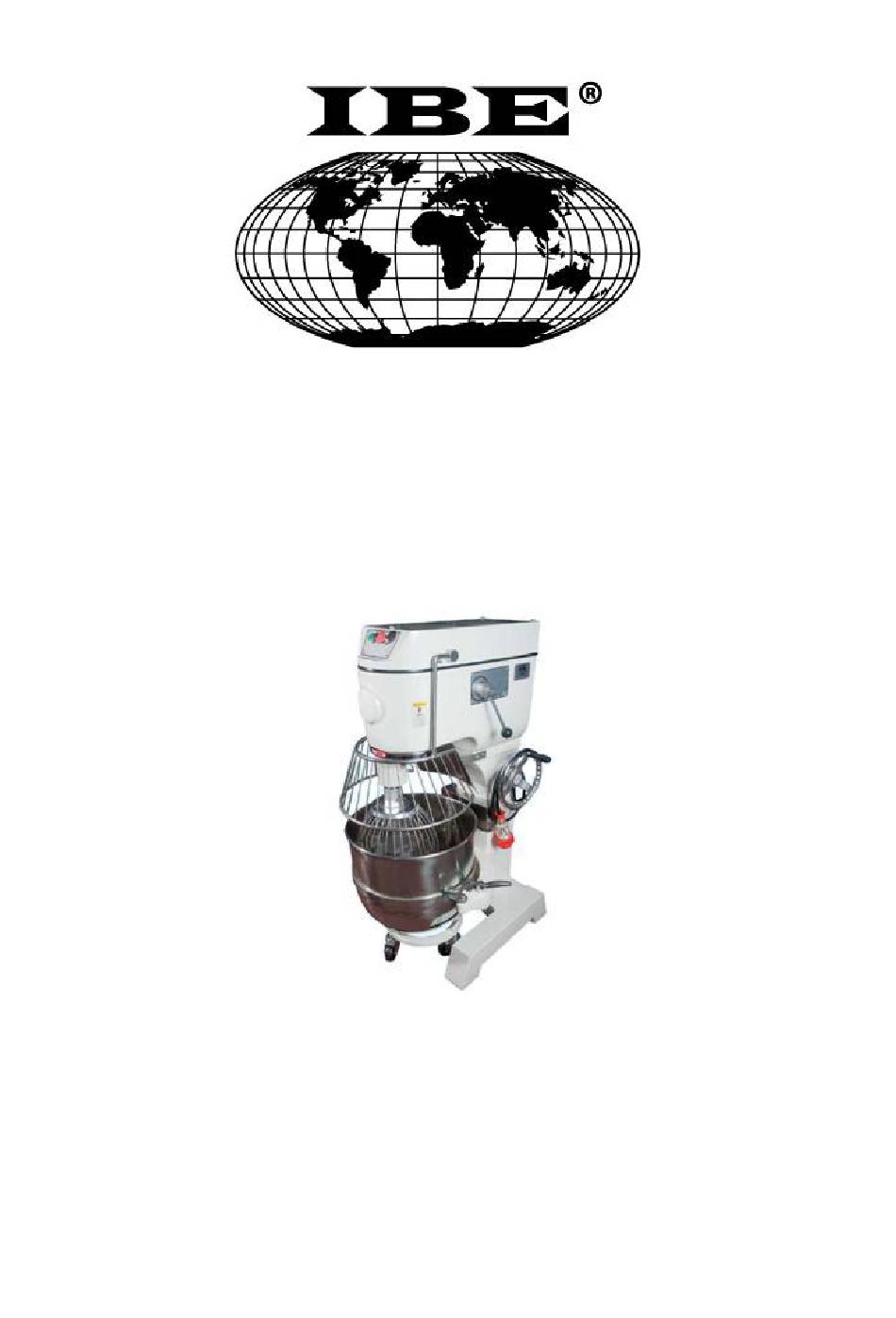

- Page 1 Instruction Manual for Planetary Mixer TM60B INSTRUCTION MANUAL PLANETARY MIXER www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Planetary Mixer TM60B MODEL: TM60B Contents 1. General Information: 1- Documentation supplied: 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine... -
Page 3: General Information
Instruction Manual for Planetary Mixer TM60B 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street, Clontarf QLD 4019 Australia Phone:... -
Page 4: 4- Intellectual Property Rights
Instruction Manual for Planetary Mixer TM60B 1.4 Intellectual Property Rights This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for... -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Planetary Mixer TM60B 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However, all verbal claims must be confirmed in writing. I.B.E. -
Page 6: 6- Machine Specifications
Instruction Manual for Planetary Mixer TM60B 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) Machine Specifications: Bowl Second Third Dimensions Weight Motor First Speed Model Capacity Speed Speed R.P.M R.P.M R.P.M (Net) TM60B 67 83 133... -
Page 7: 7- Machine Identification Details
Instruction Manual for Planetary Mixer TM60B 1.7 Machine Identification Details Type: Planetary Mixer Model: TM60B Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. - Page 8 Instruction Manual for Planetary Mixer TM60B 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl (Fig 1.3) • Gear Selector (Fig 1.4) • Attachments; Beater, Whisk, Hook (Fig 1.5) • Bowl Dolly (Fig 1.6) Fig1.2...
- Page 9 Instruction Manual for Planetary Mixer TM60B 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects in the bowl during the mixing cycle.
- Page 10 Instruction Manual for Planetary Mixer TM60B Limit switched safety guard. The safety guard of this machine has been fitted with a limit switch which will stop the machines operation when the guard is opened. (Fig 1.7) Fig1.7 Safety guard in closed position Limit switched bowl Lift.
-
Page 11: Transport And Installation
Instruction Manual for Planetary Mixer TM60B 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine •... -
Page 12: 3- Testing & Safeguards
Instruction Manual for Planetary Mixer TM60B 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport. -
Page 13: Machine Operation
Instruction Manual for Planetary Mixer TM60B 3. Machine Operation: 3.1 Intended Operation This machine has been designed and manufactured for the safe mixing of cake batters, muffin batters and whipping creams and icings. The use of one of the appropriate attachments and machine speed accordingly to achieve the desired results of a more uniform texture in the final product. -
Page 14: 2- Control Panel Components
Instruction Manual for Planetary Mixer TM60B 3.2 Control Panel components Fig 3.1 TM60B Gear selector Fig 3.1 TM60B Control Panel Location Description Operation Performed Controls the speed of the machine as set by the operator, when Gear Speed changing speeds, the machine should be stopped... - Page 15 Instruction Manual for Planetary Mixer TM60B 3.3 Operation • Place the ingredients in the bowl with the appropriate attachment. • Place the bowl in the cradle being sure to locate the bowl lug into the position on the cradle and lock the bowl with the lock wings.
-
Page 16: Cleaning & Maintenance
Instruction Manual for Planetary Mixer TM60B 4. Cleaning &Maintanance: 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. • Keeping the machine clean helps to maintain the efficient hassle-free operation of the machine. - Page 17 Instruction Manual for Planetary Mixer TM60B 4.3 Spare Parts List Description Description Top Cover Motor Screw Bearing Transmission Wheel 3 Level Gear Inner cover Shaft Gear Bearing Bearing Stop Nut Bearing Rod- Shifter Guide Oil Seal Movable Pod Main Shaft...
- Page 18 Instruction Manual for Planetary Mixer TM60B 4.4 Exploded Parts Drawings www.allaboutbakery.com.au...
- Page 19 Instruction Manual for Planetary Mixer TM60B www.allaboutbakery.com.au...
- Page 20 Instruction Manual for Planetary Mixer TM60B www.allaboutbakery.com.au...
- Page 21 Instruction Manual for Planetary Mixer TM60B www.allaboutbakery.com.au...
- Page 22 Instruction Manual for Planetary Mixer TM60B 4.5 Electrical Wiring Diagram www.allaboutbakery.com.au...
