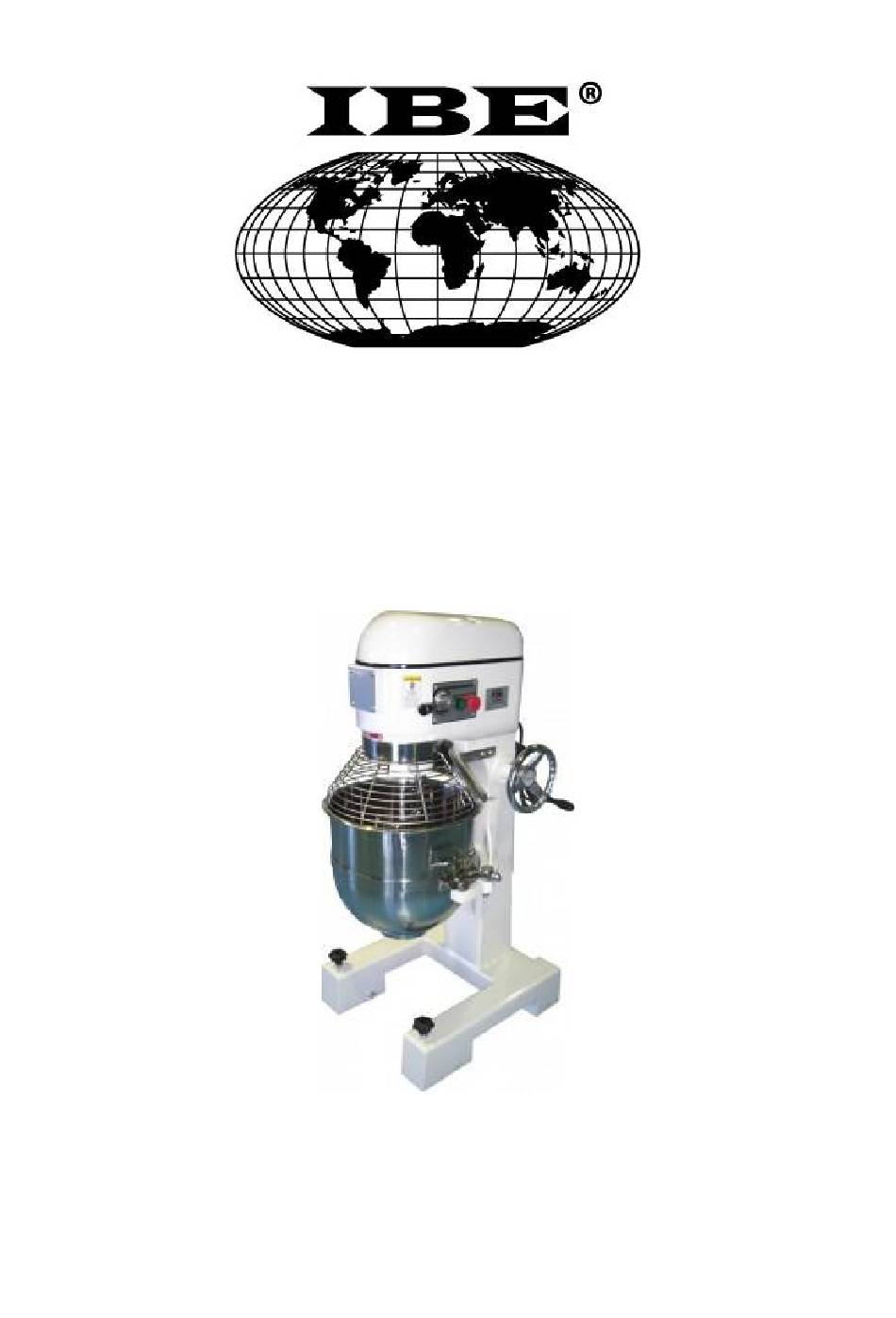

- Page 1 Instruction Manual for 40lt Planetary Mixer TF40B INSTRUCTION MANUAL www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for 40lt Planetary Mixer TF40B 40lt Planetary Mixer MODEL: TF40B/TF40-HP Contents 1. General Information: 1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine 9- Safeguards 2. -
Page 3: General Information
Instruction Manual for 40lt Planetary Mixer TF40B 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street Clontarf Queensland Australia 4019 Phone: 1300 099 011 or + 61 7 3889 5700 E-Mail:... -
Page 4: 3- Use Of This Manual
Instruction Manual for 40lt Planetary Mixer TF40B 1.3 Use of this Manual Please read carefully the information supplied in this manual before installing, operating or carrying out maintenance on this machine. This manual must be kept in good condition and stored where it can be easily found when required. -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for 40lt Planetary Mixer TF40B 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter or email. However, all verbal claims must be confirmed in writing. I.B.E. Pty Ltd reserves the right to require return of all claimed defective parts, cost of return freight is not included. -
Page 6: 6- Machine Specifications
Instruction Manual for 40lt Planetary Mixer TF40B 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) Machine Specifications Bowl Second Third Dimensions Weight Motor First Speed Model Capacity Speed Speed H.P. R.P.M R.P.M R.P.M (Net) TF40B 1 ½ 68 54 128 Power Supply Details: Single Phase, 10amp 3-pin plug top (supplied) -
Page 7: 7- Machine Identification Details
Instruction Manual for 40lt Planetary Mixer TF40B 1.7 Machine Identification Details Type: Planetary Mixer Model: TF40B Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. - Page 8 Instruction Manual for 40lt Planetary Mixer TF40B 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl (Fig 1.3) • Gear Selector (Fig 1.4) • Attachments - Beater, Whisk and Hook (Fig 1.5) Fig1.2 Fig1.3 Fig1 Fig 1.5 www.allaboutbakery.com.au...
- Page 9 Instruction Manual for 40lt Planetary Mixer TF40B 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects in the bowl during the mixing cycle. •...
- Page 10 Instruction Manual for 40lt Planetary Mixer TF40B Note: If the emergency stop button is depressed, do not try to pull it out as this may result in damage to the button, to reset the button turn it clockwise and it will reset out on its own. Limit switched Safety cover.
-
Page 11: Transport And Installation
Instruction Manual for 40lt Planetary Mixer TF40B Limited Switched Bowl Lift Fig 1.8 Bowl lift cradle in the raised position. 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: •... - Page 12 Instruction Manual for 40lt Planetary Mixer TF40B Fig 2.1 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport.
-
Page 13: 3- Testing & Safeguards
Instruction Manual for 40lt Planetary Mixer TF40B 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: • Correct operation of the emergency stop button (Fig 1.6, page.9); While the machine is operating, press the emergency button, the machine should stop immediately. -
Page 14: 2- Control Components
Instruction Manual for 40lt Planetary Mixer TF40B 3.2 Control Panel Components Emergency Start Button Stop Button Gear Speed Selector Fig 3.1 TF40B Control Panel Location Description Operation Performed Gear Speed Controls the speed of the machine as set by the operator. Selector When changing the speed - the machine should be stopped. -
Page 15: Cleaning & Maintenance
Instruction Manual for 40lt Planetary Mixer TF40B • Slide the attachment up on the shaft and turn it until the drive pin in the shaft reaches the L-Shaped slot in the attachment shank. • Raise the bowl using the hand wheel, ensuring that the bowl is fully raised. •... - Page 16 Instruction Manual for 40lt Planetary Mixer TF40B Note: Do not use water jets or hoses to clean this machine as excess water can damage the machine, and the safe operation of the electrical components. 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation.
- Page 17 Instruction Manual for 40lt Planetary Mixer TF40B 4.3 Spare Parts List PART NAME PART NAME Upper Lid Change Speed Lever Time Belt Belt Shaft 13T Case-Transmission Ball Bearing 6204ZZ Switch Gear High Middle – lowspeed Change Speed Handle 28-1 Gear High Speed 46T Handle Planetary Shaft Bowl Handle...
- Page 18 Instruction Manual for 40lt Planetary Mixer TF40B Gear Shift Fork Mixer Whipper 4.4 Exploded Parts Drawing www.allaboutbakery.com.au...
- Page 19 Instruction Manual for 40lt Planetary Mixer TF40B 4.5 Electrical Wiring Diagram Safety Guard Micro Switch Stop Start Contactor www.allaboutbakery.com.au...
