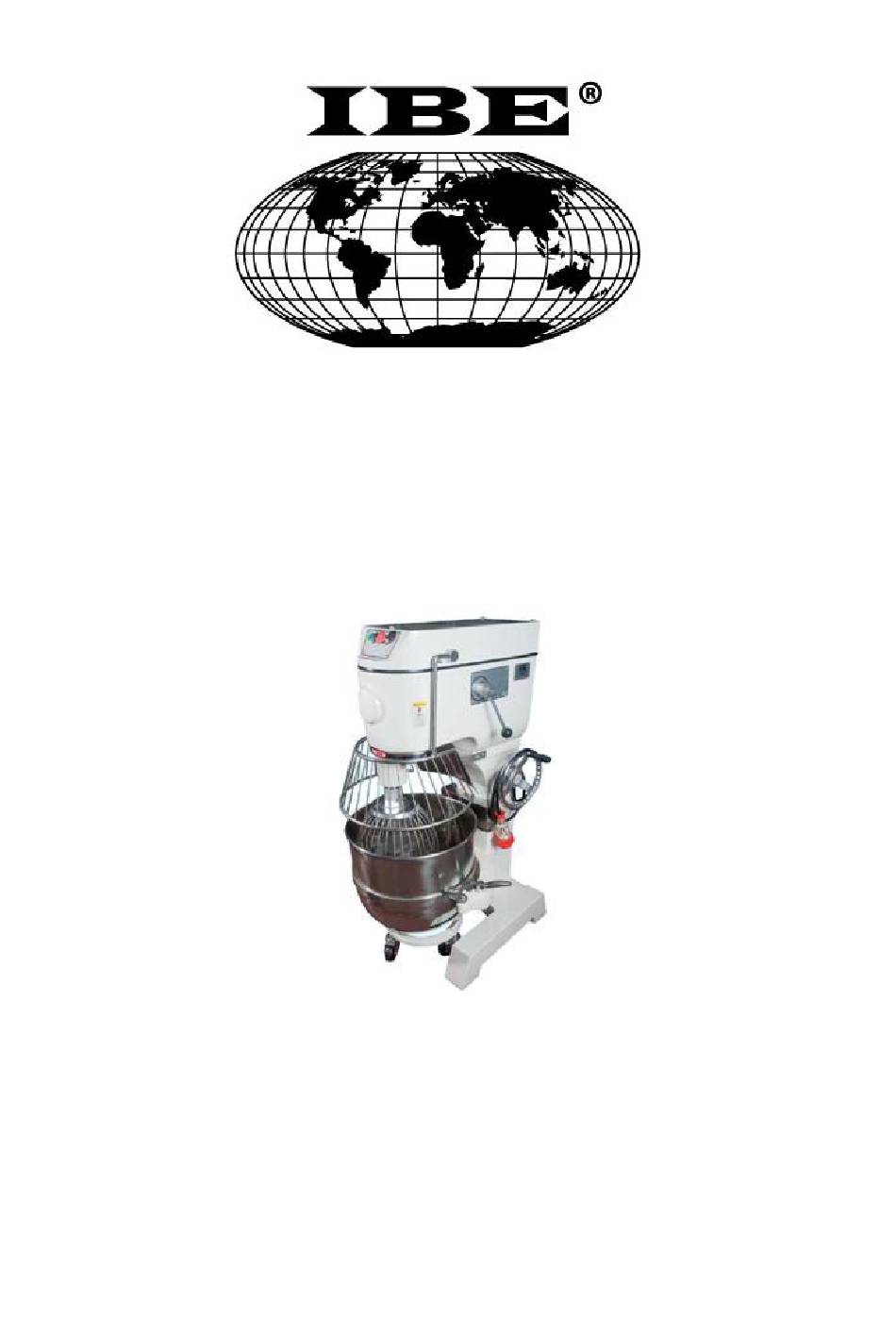

- Page 1 Instruction Manual for Planetary Mixer TM90B INSTRUCTION MANUAL PLANETARY MIXER www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Planetary Mixer TM90B MODEL: TM90B Contents 1. General Information: 1- Documentation supplied: 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine... -
Page 3: General Information
Instruction Manual for Planetary Mixer TM90B 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street, Clontarf Queensland 4019 Australia Phone:... -
Page 4: 4- Intellectual Property Rights
Instruction Manual for Planetary Mixer TM90B 1.4 Intellectual Property Rights This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for... -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Planetary Mixer TM90B 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However, all verbal claims must be confirmed in writing. I.B.E. -
Page 6: 6- Machine Specifications
Instruction Manual for Planetary Mixer TM90B 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) Machine Specifications: Bowl Second Third Dimensions Weight Motor First Speed Model Capacity Speed Speed R.P.M R.P.M R.P.M (Net) TM90B 68 99 130... -
Page 7: 7- Machine Identification Details
Instruction Manual for Planetary Mixer TM90B 1.7 Machine Identification Details Type: Planetary Mixer Model: TM90B Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. - Page 8 Instruction Manual for Planetary Mixer TM90B 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl (Fig 1.3) • Gear Selector (Fig 1.4) • Attachments; Beater, Whisk, Hook (Fig 1.5) • Bowl Dolly (Fig 1.6) Fig1.2...
- Page 9 Instruction Manual for Planetary Mixer TM90B Fig 1.6 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects in the bowl during the mixing cycle.
- Page 10 Instruction Manual for Planetary Mixer TM90B Note: If the emergency stop button is depressed do not try to pull it out this may result in damage to the button , to reset the button turn it clockwise and it will reset out on its own.
-
Page 11: Transport And Installation
Instruction Manual for Planetary Mixer TM90B Fig 1.8 Bowl lift cradle in the raised position. 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: •... - Page 12 Instruction Manual for Planetary Mixer TM90B Fig 2.1 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport.
-
Page 13: 3- Testing & Safeguards
Instruction Manual for Planetary Mixer TM90B 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: • Correct operation of the emergency stop button (Fig 1.6, page.9); While the machine is operating, press the emergency button, the machine should stop immediately. -
Page 14: 2- Control Panel Components
Instruction Manual for Planetary Mixer TM90B 3.2 Control Panel components Fig 3.1 TM90B Gear selector www.allaboutbakery.com.au... - Page 15 Instruction Manual for Planetary Mixer TM90B Fig 3.1 TM90B Control Panel Location Description Operation Performed Controls the speed of the machine as set by the operator, when Gear Speed changing speeds, the machine should be stopped Selector Start Button Starts the machine when the bowl is in the raised position and...
-
Page 16: Cleaning & Maintenance
Instruction Manual for Planetary Mixer TM90B • Select appropriate gear speed and press the green start button (Fig 3.1, b). • The machine will now operate until the emergency stop button is pressed, the safety guard is opened or the bowl is lowered. - Page 17 Instruction Manual for Planetary Mixer TM90B 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation. If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
- Page 18 Instruction Manual for Planetary Mixer TM90B Screw Ball Bearing Gear Rod Screw Gear Shaft Stop Nut Driven Gear Whisk Driven Gear Hook Bearing Paddle Pulley Bowl 4.4 Exploded Parts Drawings www.allaboutbakery.com.au...
- Page 19 Instruction Manual for Planetary Mixer TM90B www.allaboutbakery.com.au...
- Page 20 Instruction Manual for Planetary Mixer TM90B www.allaboutbakery.com.au...
- Page 21 Instruction Manual for Planetary Mixer TM90B www.allaboutbakery.com.au...
- Page 22 Instruction Manual for Planetary Mixer TM90B 4.5 Electrical Wiring Diagram www.allaboutbakery.com.au...
