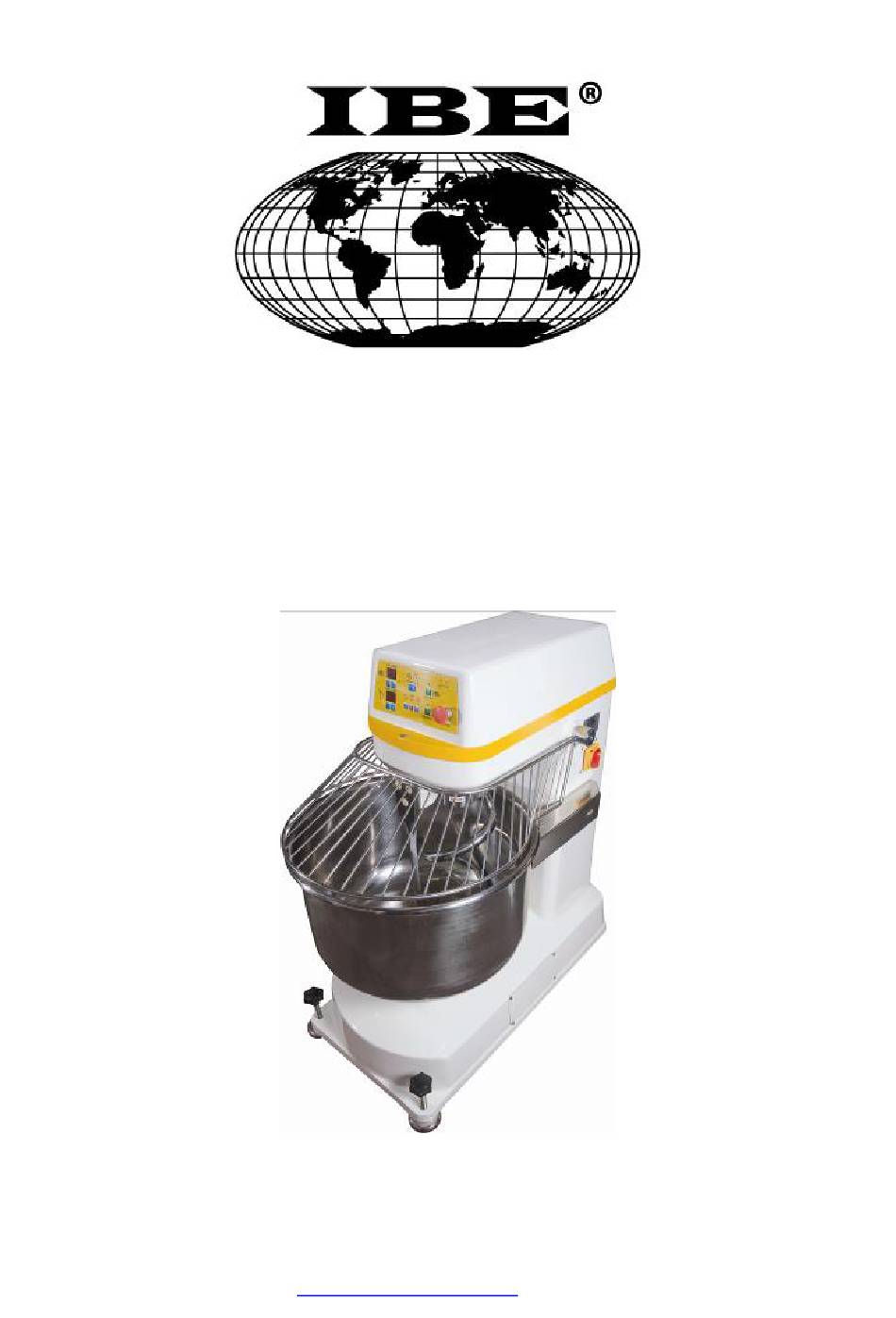

- Page 1 Instruction Manual for Spiral Mixer KL202E INSTRUCTION MANUAL www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Spiral Mixer KL202E SPIRAL MIXER MODEL: KL202E Contents 1. General Information: 1- Documentation supplied: 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details... -
Page 3: General Information
Instruction Manual for Spiral Mixer KL202E 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street Clontarf QLD 4019 Australia Phone:... -
Page 4: 3- Use Of This Manual
Instruction Manual for Spiral Mixer KL202E 1.3 Use of this Manual Please read carefully the information supplied in this manual before installing, operating or carrying out maintenance on this machine. This manual must be kept in good condition and stored where it can be easily found when required. -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Spiral Mixer KL202E 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However all verbal claims must be confirmed in writing. I.B.E. -
Page 6: 6- Machine Specifications
Instruction Manual for Spiral Mixer KL202E • Mixer attachments - Bowl, whisk, beater and/or hook. • Normal wear parts, such as, Conveyor belts, ‘v’ belts, ‘o’ rings and scraper and slicer blades. The Warranty on these parts is, they will be in satisfactory operating condition at time of delivery and initial start-up. -
Page 7: 7- Machine Identification Details
Instruction Manual for Spiral Mixer KL202E 1.7 Machine Identification Details Type: 2 Bag Spiral Mixer Model: KL202E Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 www.allaboutbakery.com.au... -
Page 8: 8- Main Components Of The Machine
Instruction Manual for Spiral Mixer KL202E Note: When requesting spare parts please state the serial number found on the serial number identification plate. 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl & Dough Hook (Fig 1.3) •... - Page 9 Instruction Manual for Spiral Mixer KL202E Fig 1.4 Fig 1.5 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Nothing should interfere with free movement of the bowl or dough hook during the mixing cycle of this machine.
- Page 10 Instruction Manual for Spiral Mixer KL202E Emergency Stop button Fig 1.6 Note: If the emergency stop button is depressed do not try to pull it out this may result in damage to the button , to reset the button turn it clockwise and it will reset out on its own.
-
Page 11: Transport And Installation
Instruction Manual for Spiral Mixer KL202E Fig 1.8 Note: Do not place hand/s or other implements between cover and bowl when machine is plugged in, non conformance may result in personal injury. 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. - Page 12 Instruction Manual for Spiral Mixer KL202E Fig 2.1 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport.
-
Page 13: 3- Testing & Safeguards
Instruction Manual for Spiral Mixer KL202E • Train all operators in the safe operation of this machine. Fig 2.2 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: • Correct operation of the emergency stop button (Fig 1.6, page.9);... -
Page 14: 2- Control Panel Components
Instruction Manual for Spiral Mixer KL202E controlled via the timers located on the control panel(Fig3.1 b & c). The bowl has two directions controlled with the bowl direction buttons (Fig3.1g). This machine has been designed and built to operate indoors. -
Page 15: 3- Manual Operation
Instruction Manual for Spiral Mixer KL202E Automatic/Manual When left led is lit; automatic control is in operation. Control Button When right led is lit; manual control is in operation. Bowl direction Buttons 1) Clockwise bowl rotation 2) Neutral- no bowl rotation... -
Page 16: 4- Automatic Operation
Instruction Manual for Spiral Mixer KL202E 3.4 Automatic Operation Set Automatic/Manual switch (c)so that the left LED is lit the timers will now control the mixing time/s as set by the operator and change the machine speed from low to high if required. -
Page 17: Cleaning & Maintenance
Instruction Manual for Spiral Mixer KL202E direction (d) from set direction to required direction pressing the neutral button first. However when the machine is in high speed the bowl must always be rotating in an anti-clockwise direction. 4. Cleaning &Maintanance: 4.1 Cleaning... - Page 18 Instruction Manual for Spiral Mixer KL202E 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation. If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
- Page 19 Instruction Manual for Spiral Mixer KL202E Wheel Wheel Axel Sleeve Wheel Axle Chain Pulley Double V-Belt Pulley Pulley Axel Double Row Gear Bearing Seat Bowl Motor mounting Plate Distance Regulating Plate Access Cover Machine Body 4.4 Exploded Parts Drawing www.allaboutbakery.com.au...
- Page 20 Instruction Manual for Spiral Mixer KL202E www.allaboutbakery.com.au...
- Page 21 Instruction Manual for Spiral Mixer KL202E 4.5 Electrical Wiring Diagrams www.allaboutbakery.com.au...
