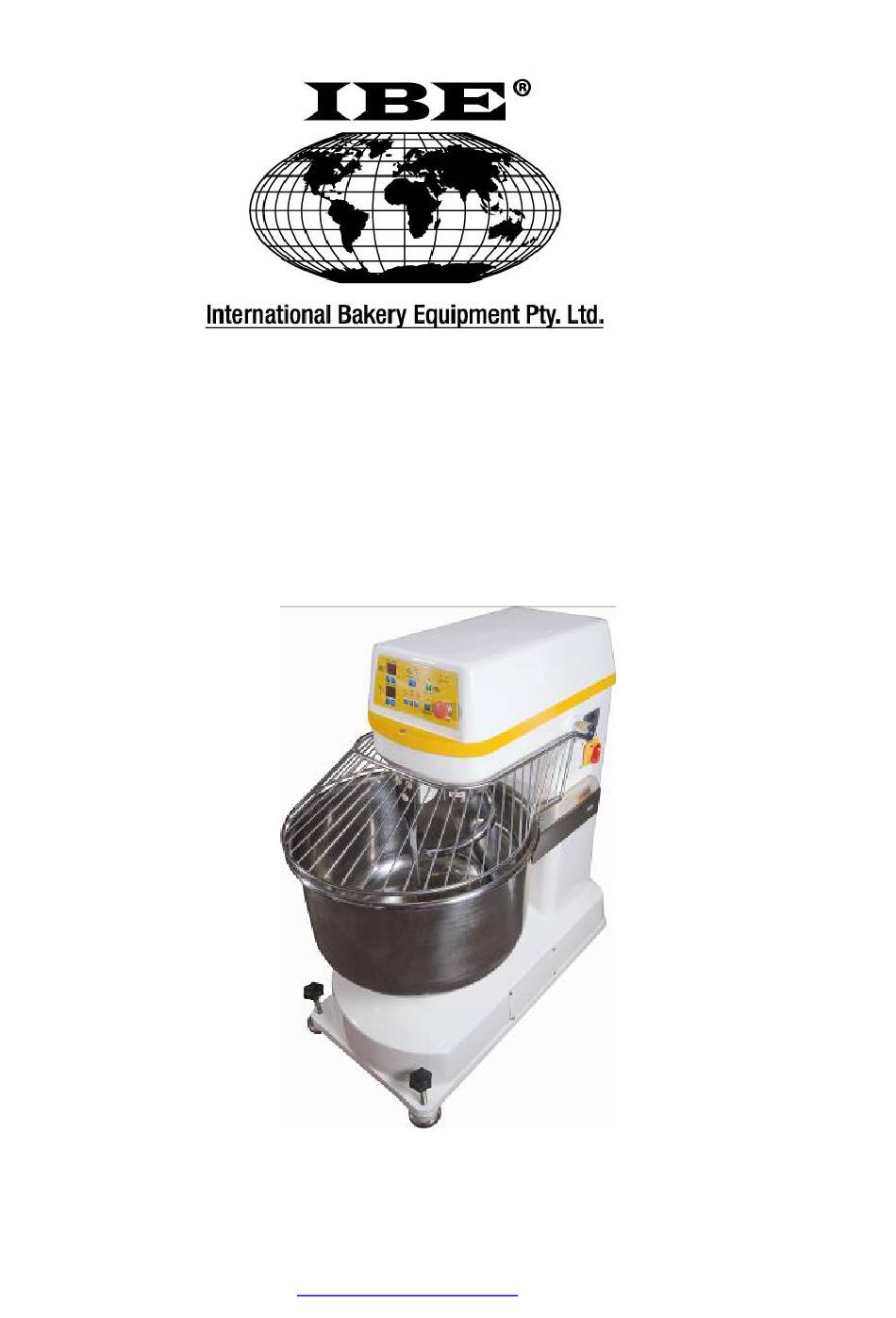

- Page 1 Instruction Manual for Spiral Mixer KL200E INSTRUCTION MANUAL SPIRAL MIXER www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Spiral Mixer KL200E MODEL: KL200E Contents 1. General Information: 1- Documentation supplied: 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine... -
Page 3: General Information
Instruction Manual for Spiral Mixer KL200E 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street Clontarf QLD 4019 Australia Phone:... -
Page 4: 4- Intellectual Property Rights
Instruction Manual for Spiral Mixer KL200E 1.4 Intellectual Property Rights This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for... -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Spiral Mixer KL200E 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However all verbal claims must be confirmed in writing. I.B.E. -
Page 6: 6- Machine Specifications
Instruction Manual for Spiral Mixer KL200E 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) 131.5 Machine Specifications Flour Dough Spiral Bowl Dimensions Weight Model Capacity Capacity Motor Motor H.P. H.P. (Net) KL200E 63 97 110 Power Supply Details:... -
Page 7: 7- Machine Identification Details
Instruction Manual for Spiral Mixer KL200E 1.7 Machine Identification Details Type: 1 Bag Spiral Mixer Model: KL200E Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. - Page 8 Instruction Manual for Spiral Mixer KL200E 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl & Dough Hook (Fig 1.3) • Control Panel (Fig 1.4) • Electrical Panel (Fig 1.5) Fig1.2 Fig1.3 Fig 1.4 Fig 1.5...
- Page 9 Instruction Manual for Spiral Mixer KL200E 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Nothing should interfere with free movement of the bowl or dough hook during the mixing cycle of this machine.
- Page 10 Instruction Manual for Spiral Mixer KL200E Limit switched safety guard. The safety guard of this machine has been fitted with a limit switch which will stop the machines operation when the guard is lifted. (Fig 1.7) Fig1.7 Safety guard in raised position Fully enclosed bowl guide wheels.
-
Page 11: Transport And Installation
Instruction Manual for Spiral Mixer KL200E 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine •... - Page 12 Instruction Manual for Spiral Mixer KL200E 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport.
-
Page 13: 3- Testing & Safeguards
Instruction Manual for Spiral Mixer KL200E 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: • Correct operation of the emergency stop button (Fig 1.6, page.9); While the machine is operating, press the emergency stop button, the machine should stop immediately. -
Page 14: 2- Control Panel Components
Instruction Manual for Spiral Mixer KL200E 3.2 Control Panel components Fig 3.1 KL200 Control Panel Location Description Operation Performed Timer/ Controls time of operation in low speed as set by the Low Speed operator by using the two buttons under the timer display. -
Page 15: 3- Manual Operation
Instruction Manual for Spiral Mixer KL200E 3.3 Manual Operation Set Automatic/Manual button (c) so that the right LED is lit; the timers are now out of function. The speed, bowl direction and mixing time are now controlled by the operator. -
Page 16: 4- Automatic Operation
Instruction Manual for Spiral Mixer KL200E 3.4 Automatic Operation Set Automatic/Manual switch (c)so that the left LED is lit the timers will now control the mixing time/s as set by the operator and change the machine speed from low to high if required. -
Page 17: Cleaning & Maintenance
Instruction Manual for Spiral Mixer KL200E 4. Cleaning &Maintanance: 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. • Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine. - Page 18 Instruction Manual for Spiral Mixer KL200E 4.3 Spare Parts List Description Description Bowl Safety Guard Hinge Control Panel Safety Guard Axel Bowl Base Safety Guard Bracket Bowl shaft Top Cover Hinge Rod Spiral Shaft Rear Access Panel Bearing Seat Spiral Tool Pulley...
- Page 19 Instruction Manual for Spiral Mixer KL200E 4.4 Exploded Parts Drawing www.allaboutbakery.com.au...
- Page 20 Instruction Manual for Spiral Mixer KL200E 4.5 Electrical Wiring Diagrams www.allaboutbakery.com.au...
