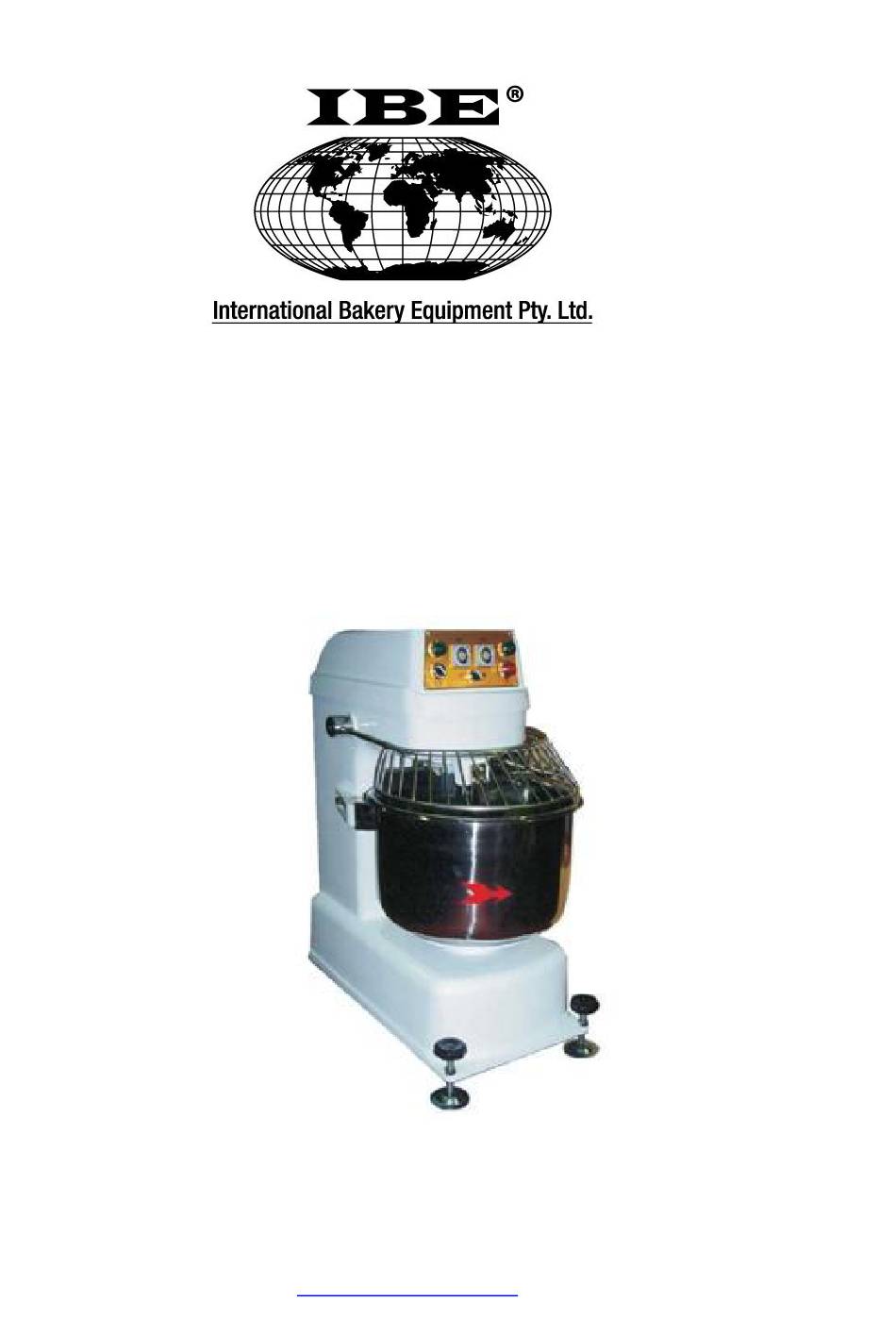

- Page 1 Instruction Manual for Spiral Mixer KL100 INSTRUCTION MANUAL SPIRAL MIXER www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Spiral Mixer KL100 MODEL: KL100 Contents 1. General Information: 1- Documentation supplied: 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine... -
Page 3: General Information
Instruction Manual for Spiral Mixer KL100 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams • Installation check list 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer St, Clontarf QLD 4019... -
Page 4: 4- Intellectual Property Rights
Instruction Manual for Spiral Mixer KL100 1.4 Intellectual Property Rights This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for... -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Spiral Mixer KL100 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However all verbal claims must be confirmed in writing. I.B.E. -
Page 6: 6- Machine Specifications
Instruction Manual for Spiral Mixer KL100 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) Machine Specifications Flour Dough Spiral Bowl Dimensions Weight Model Capacity Capacity Motor Motor H.P. H.P. (Net) KL100 12.5 90 50 100 Power Supply Details:... -
Page 7: 7- Machine Identification Details
Instruction Manual for Spiral Mixer KL100 1.7 Machine Identification Details Type: Pizza and Hard Dough Spiral Mixer Model: KL100 Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. - Page 8 Instruction Manual for Spiral Mixer KL100 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl & Dough Hook (Fig 1.3) • Control Panel (Fig 1.4) • Electrical Panel (Fig 1.5) Fig1.2 Fig1.3 Fig 1.4 Fig 1.5...
- Page 9 Instruction Manual for Spiral Mixer KL100 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Nothing should interfere with free movement of the bowl or dough hook during the mixing cycle of this machine.
- Page 10 Instruction Manual for Spiral Mixer KL100 Limit switched safety guard. The safety guard of this machine has been fitted with a limit switch which will stop the machines operation when the guard is lifted. (Fig 1.7) Fig1.7 Safety guard in raised position Fully enclosed bowl guide wheels.
-
Page 11: Transport And Installation
Instruction Manual for Spiral Mixer KL100 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine •... - Page 12 Instruction Manual for Spiral Mixer KL100 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport.
-
Page 13: 3- Testing & Safeguards
Instruction Manual for Spiral Mixer KL100 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: • Correct operation of the emergency stop button (Fig 1.6, page.9); While the machine is operating, press the emergency stop button, the machine should stop immediately. -
Page 14: 2- Control Panel Components
Instruction Manual for Spiral Mixer KL100 3.2 Control Panel components Fig 3.1 KL100 Control Panel Location Description Operation Performed Start Button/ When pressed the spiral rotates at low speed and the Low speed bowl rotates at chosen direction according to selection. -
Page 15: 3- Manual Operation
Instruction Manual for Spiral Mixer KL100 3.3 Manual Operation Set Auto/Manual switch (f) at the Manual position, the timers are now out of function. The speed, bowl direction and mixing time are now controlled by the operator. Place ingredients in the bowl and lower the safety guard push the low speed button (a) on the left side of the control panel, the machine will now operate in low speed until one of the following actions is done;... -
Page 16: 4- Automatic Operation
Instruction Manual for Spiral Mixer KL100 3.4 Automatic Operation Set Automatic/Manual switch (f) to the automatic position the timers will now control the mixing time as set by the operator and change the machine speed from low to high if required. -
Page 17: Cleaning & Maintenance
Instruction Manual for Spiral Mixer KL100 4. Cleaning &Maintanance: 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. • Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine. - Page 18 Instruction Manual for Spiral Mixer KL100 4.3 Spare Parts List Description Description Top Cover Safety Guard Hinge Bolt Bowl Hinge Guide Bar Electrical Control- Plate Screw Spiral Tool Motor Pulley Screw V-Belt Bearing Safety Guard Hinge Axel Motor Cover Safety Guard Hinge...
- Page 19 Instruction Manual for Spiral Mixer KL100 Description Description Bearing Motor Pulley Screw Motor Plate Axel Bearing Housing Base Screw Nut V-Belt Pulley Screw Stabiliser Foot Screw Nut Front Wheel Screw Bolt Wheel Plate Stand Sheet Axle Screw Screw Motor Plate Axel...
- Page 20 Instruction Manual for Spiral Mixer KL100 4.4 Spare Parts Drawings www.allaboutbakery.com.au...
- Page 21 Instruction Manual for Spiral Mixer KL100 www.allaboutbakery.com.au...
- Page 22 Instruction Manual for Spiral Mixer KL100 4.5 Electrical Wiring Diagrams www.allaboutbakery.com.au...
- Page 23 Instruction Manual for Spiral Mixer KL100 www.allaboutbakery.com.au...
