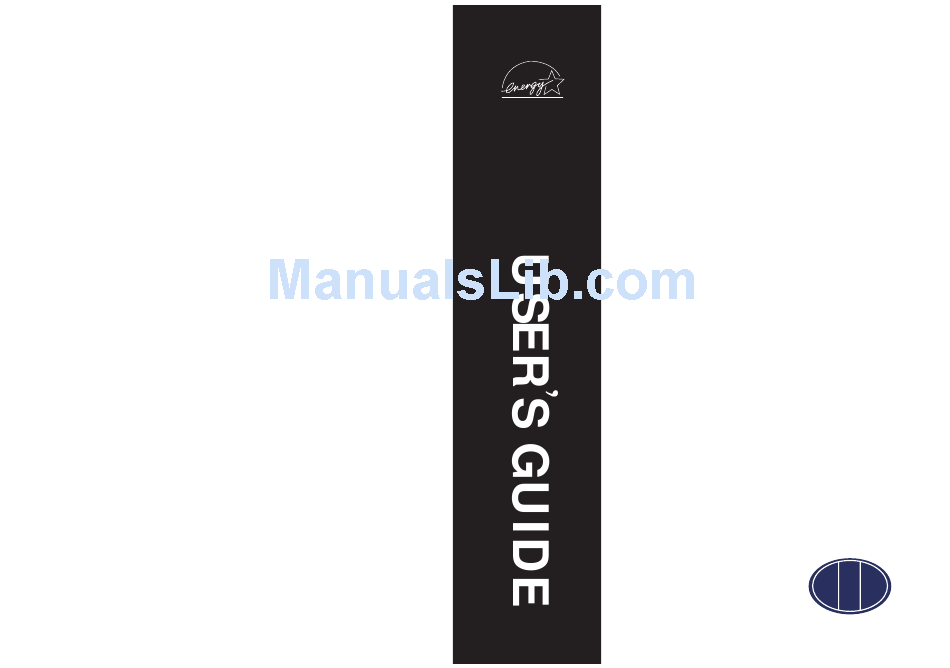

COLOR MONITOR

Model No : CTL 5fln
C T L
S/N:9978623807A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTL 5fln and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ctl CTL 5fln

Summary of Contents for Ctl CTL 5fln

  • Page 1: Color Monitor

    COLOR MONITOR Model No : CTL 5fln C T L S/N:9978623807A...

  • Page 2: Canadian Department Of Communications Compliance Statement

    IMPORTANT SAFEGUARDS 1. Read all of these instructions. 2. Save these instructions for later use. 3. Unplug this monitor from the wall outlet before cleaning. Do not will prevent damage to the set due to lightning use liquid cleaners or aerosol and powerline surges.
  • Page 3 The power cord is used as a main disconnect device. Disconnect the power cord before servicing. The outlet must be installed near the monitor and must be easily accessible. As an ENERGY STAR Partner, Computer Technology Link, Inc., has determined that this product meets the Energy Star guidelines for energy efficiency.

  • Page 4: Table Of Contents

    CONTENTS Introduction Product Features Setup Installing the Tilt/Swivel Stand Connecting the D-Sub Signal Cable Connecting to Your Macintosh Computer Connecting the Power Cord Power Management System DDC for Plug & Play Operation & Adjustment Specifications Factory Preset Timings Troubleshooting Description for D-sub Connector INTRODUCTION This manual explains how to correctly install, operate and get the best performance from your monitor.

  • Page 5: Product Features

    PRODUCT FEATURES • The convenient and user-friendly on-screen display allows for easy and accurate adjustments of horizontal and vertical screen size and position, geometry and screen color. • The monitor supports a safe working environment in strict compliance with the MPR standard for low emissions(TCO 1995 is optional).

  • Page 6: Connecting The D-Sub Signal Cable

    CONNECTING THE D-SUB SIGNAL CABLE 1. Turn off the computer and monitor. 2. Connect the 15 pin D-sub connector to the output port of the video card in your computer. 3. Tighten the screws of connector. CONNECTING TO YOUR MACINTOSH COMPUTER 1.

  • Page 7: Operation & Adjustment

    OPERATION & ADJUSTMENT EXIT ADJUST SELECT MENU : Launch OSD(On-Screen Display) Menus MENU : Select the next function : Select the previous function : Increase the value of any selected function : Decrease the value of any selected function : Exit OSD Menus & Launch OSD Menus, when no OSD EXIT Key Process MENU...
  • Page 8 2. OSD (On-Screen Display) Menu 2 Adjust the position of the display horizontally (left or right). HORIZONTAL POSITION Adjust the display width (horizontal size). HORIZONTAL SIZE Adjust the position of the display vertically (up or down). VERTICAL POSITION Adjust the display height (vertical size). VERTICAL SIZE Eliminate a moire pattern looking like a series of concentric circles or arcs.

  • Page 9: Specifications

    SPECIFICATIONS Picture Tube Type : 15-inch, Flat Square Tube type (14-inch, viewing area) Dot Pitch : 0.28mm, MPR II Face Treatment : Non-glare / Anti-static Video Input Signal : R.G.B. Analog Amp. Bandwidth : 85 MHz Input Sync : TTL, separate negative / positive Scan Frequency Horizontal : 30 - 69 KHz Vertical...

  • Page 10: Troubleshooting

    TROUBLESHOOTING Symptom Check No picture. Check if POWER SWITCH and COMPUTER POWER SWITCH are in the on position. Check if the signal cable is correctly connected to the video card. Check if the pins of D-sub connector are not bent. Check if the computer is in the power saving mode.
