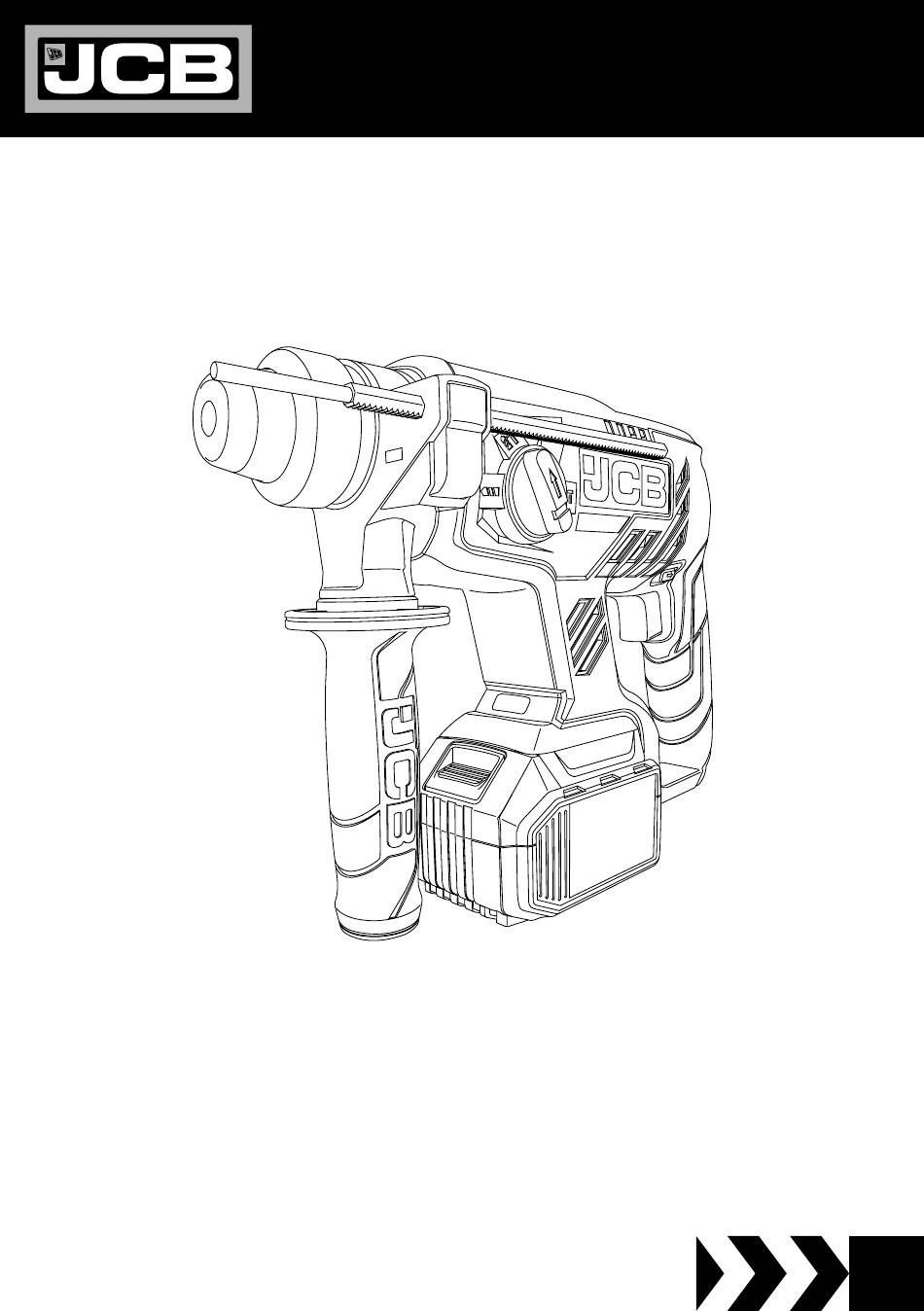

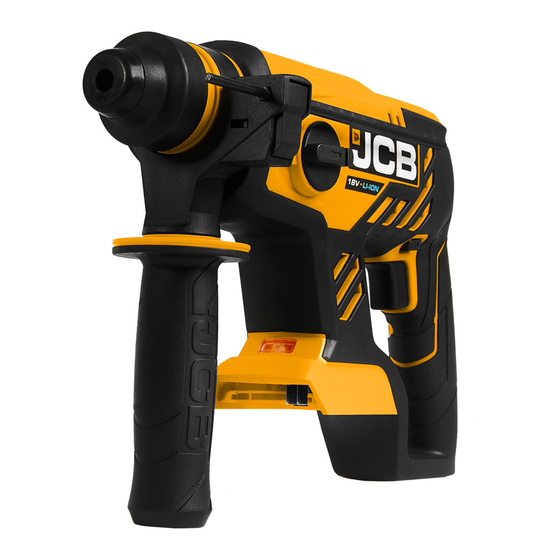

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-18BLRH Original Instructions IM-18BLRH-EN Iss: 06/2021...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-18BLRH Instruction & User Manual...
-
Page 3: Table Of Contents
OPERATING INSTRUCTIONS Intended Use Battery Attaching the Side Handle Setting the Depth Stop Replacing Bits Power Switch Variable Speed Rotation Selector Mode Selector Maintenance Transport and Storage WARRANTY STATEMENT Terms and Conditions EU/UK DECLARATION OF CONFORMITY 21-18BLRH Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-18BLRH Instruction & User Manual... -
Page 5: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. 21-18BLRH Instruction & User Manual... -
Page 6: Service
Water entering a power tool will before turning the power tool on. increase the risk of electric shock. wrench or a key left attached to a rotating part of the power tool may result in personal injury. 21-18BLRH Instruction & User Manual... -
Page 7: Tool Specific Safety Warnings
Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. 21-18BLRH Instruction & User Manual... -
Page 8: Charger Safety
To reduce risk of injury, only charge if they have been given supervision JCB rechargable batteries. The or instruction concerning use of charger and battery packs are specifically the appliance in a safe way and designed to work together. - Page 9 21-18BLRH Instruction & User Manual...
-
Page 10: Component List
DEPTH GUIDE CHARGER* MODE SELECTOR BATTERY PACK* - PLEASE REFER TO ROTATION DIRECTION SWITCH TABLE ON PAGE 11 FOR BATTERY INFORMATION ON/ OFF TRIGGER BATTERY TEST BUTTON AND CHARGE INDICATOR* SOFT GRIP SIDE HANDLE *If applicable 21-18BLRH Instruction & User Manual... -
Page 11: Technical Data
No Load 85 dB(A) Pressure (LpA) Concrete Drilling 89 dB(A) No Load 96 dB(A) A-Weighted Sound Power (LwA) Concrete Drilling 100 dB(A) & K 3.0 dB(A) Wear ear protection when sound pressure is over 80 dB(A) 21-18BLRH Instruction & User Manual... -
Page 12: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. 21-18BLRH Instruction & User Manual... -
Page 13: Operating Instructions
Make sure the power switch is not pressed Connected battery is in when inserting or replacing the battery. charging Use with JCB batteries only: 21-20LI, 21- Connected battery is fully 30LI, 21-40LI, 21-50LI. charged Do not force the battery when Connected battery has a connecting it, use moderate pressure. -
Page 14: Attaching The Side Handle
The tool will Press the rotation direction switch to lock automatically. the right for rotation in an anticlockwise direction. Check that the tool accessory is properly positioned & locked into the tool holder. 21-18BLRH Instruction & User Manual... -
Page 15: Mode Selector
Do not force the tool - do not press too hard on the drill. NOTE The drill can jam in deep holes. Release the power switch immediately if the drill jams. Switch to anticlockwise rotation and run the drill loose at low speed. 21-18BLRH Instruction & User Manual... -
Page 16: Maintenance
Store the tool and battery in a dry, frost- free, well ventilated place. Keep all tools out of the reach of children. Always switch off the tool and disconnect it from the power supply (remove the battery/ unplug the power cord) before transport. 21-18BLRH Instruction & User Manual... - Page 17 21-18BLRH Instruction & User Manual...
-
Page 18: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. - Page 19 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes.
-
Page 20: Eu/Uk Declaration Of Conformity
EU DECLARATION UK DECLARATION OF CONFORMITY OF CONFORMITY Product: JCB 18V Brushless Cordless SDS Rotary Hammer drill Batch Number: P.O. PRODUCT(S) COVERED BY THIS UK Product Code No. JCB-18BLRH-B, 21-18BLRH-B DECLARATION: EU Product Code No. JCB-18BLRH-B-E Factory Reference No. BLMD-233 Name: Yellow &...
