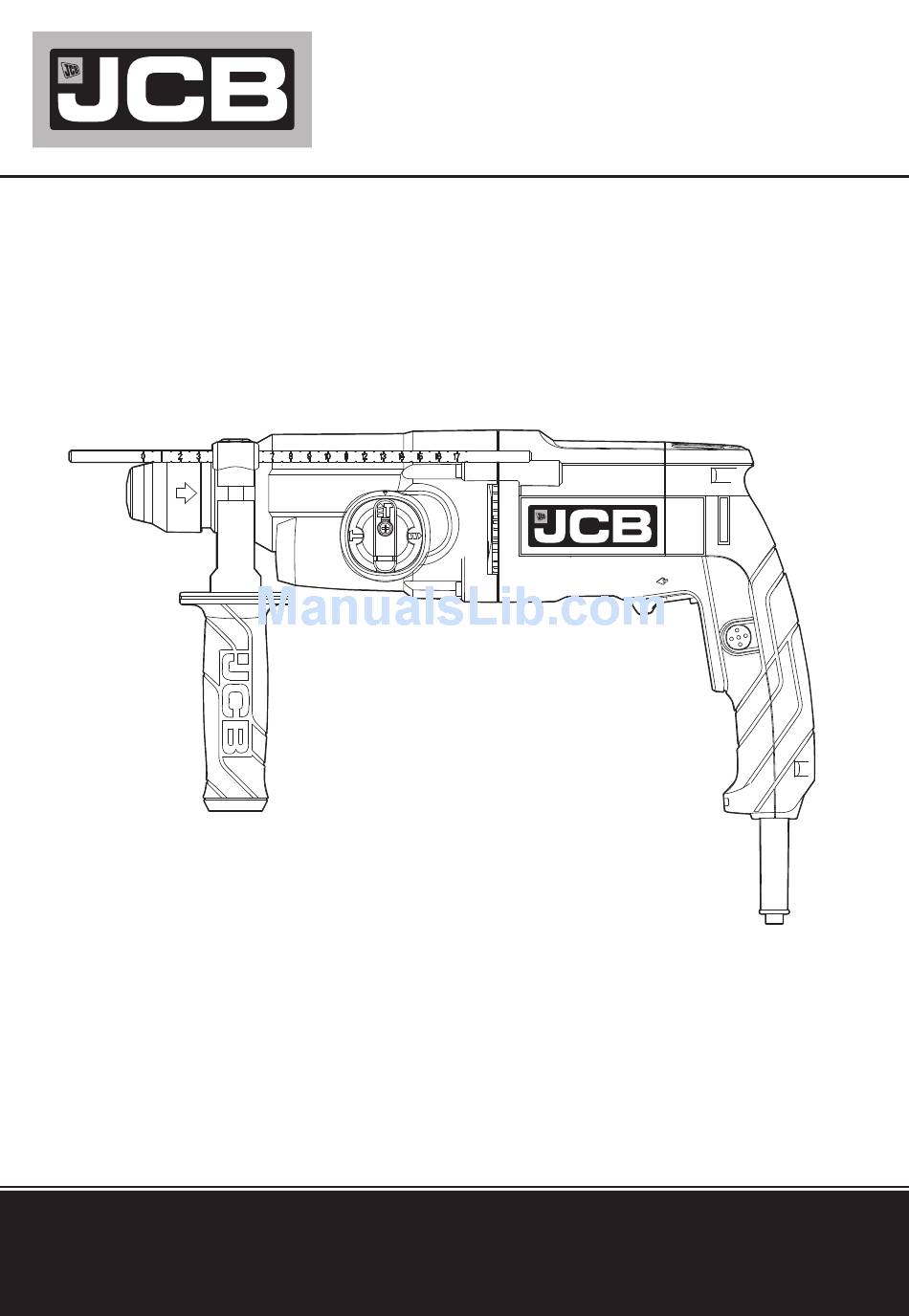

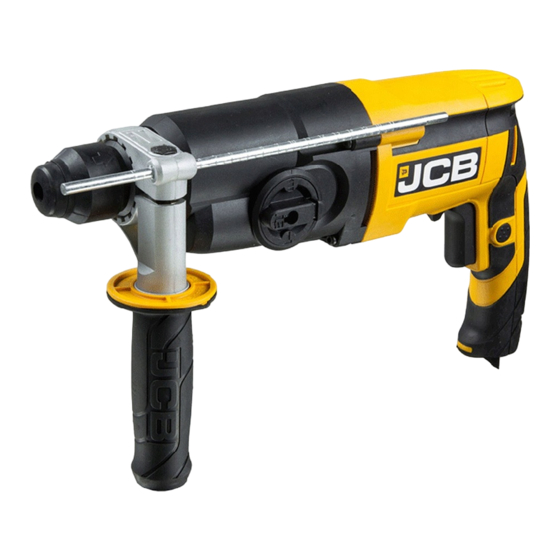

- Page 1 Safety and operating manual SDS Plus Hammer JCB-SDS780 JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 3: General Power Tool Safety Warnings
Unmodified plugs and matching of drugs, alcohol or medication. outlets will reduce risk of electric A moment of inattention while shock. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 4: Power Tool Use And Care
If devices are provided for the and any other condition that may connection of dust extraction and affect the power tool’s operation. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 5 2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. 3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
- Page 6 10. Vibrations can injure the hand- arm system. Keep exposure to vibrations as short as possible. When carrying out work, always hold the hammer with both hands and ensure that you have a stable standing position. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
- Page 7 2002/96/CE. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 8: Component List
5. AUXILIARY HANDLE 6. ADJUSTABLE DEPTH STOP 7. TOOL HOLDER LOCKING SLEEVE 8. DUST PROTECTION CAP 9. SDS-PLUS TYPE CHUCK *Not all the accessories illustrated or described are included in standard delivery. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 9: Technical Data
= 12,741m/s h,CHeq Chiselling Uncertainty K=1.5m/s² WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 10 Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 11: Operating Instructions
2. INSERTING AND REMOVING DRILL BIT IN Take care that the dust protection cap (8) is not damaged when changing tools. ● INSERTING JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 12 Tighten them equally in turn at each of the three holes, not just at one hole. Your drill bit is now locked in the chuck. The bit can be removed by reversing the above procedures. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 13: Auxiliary Handle
ROTATION CONTROL With the drill pointing away from you, push the forward/reverse- lever (3) to the left “ ” for forward rotation. Push the forward/reverse- lever (3) to the right for reverse JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 14 Hammer drilling position. For drilling into steel, wood and plastics choose the Rotary drilling position. For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
- Page 15 Warning: The operating mode selector switch may be actuated only at a standstill. Warning: Prolonged use will cause the aluminum housing to become hot, do not touch. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 16: Maintenance
The inspection of hoses and other critical parts which could deteriorate; d) The maximum permitted pressure of the liquid supply 2). For tools provided with an RCD a) Never to use the tool without the RCD provided with the tool; JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 17 4). Replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organization 5). Keep liquid clear off the parts of the tool and away from persons in the working area JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 18: Warranty Statement
WARRANTY STATEMENT A product of hard work In every corner of the world you'll find a JCB machine. Since our beginnings in 1945, we have always invested heavily in research and development, keeping JCB at the cutting edge of innovation. Today, JCB has some of the finest engineering facilities across the globe, producing a range of over 300 machines and maintains a reputation for unrivaled customer service. -
Page 19: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product Description JCB SDS Plus Hammer Type (JCB-SDS780) Function Hammering various materials Complies with the following Directives, EC Machinery Directive 2006/42/EC...
