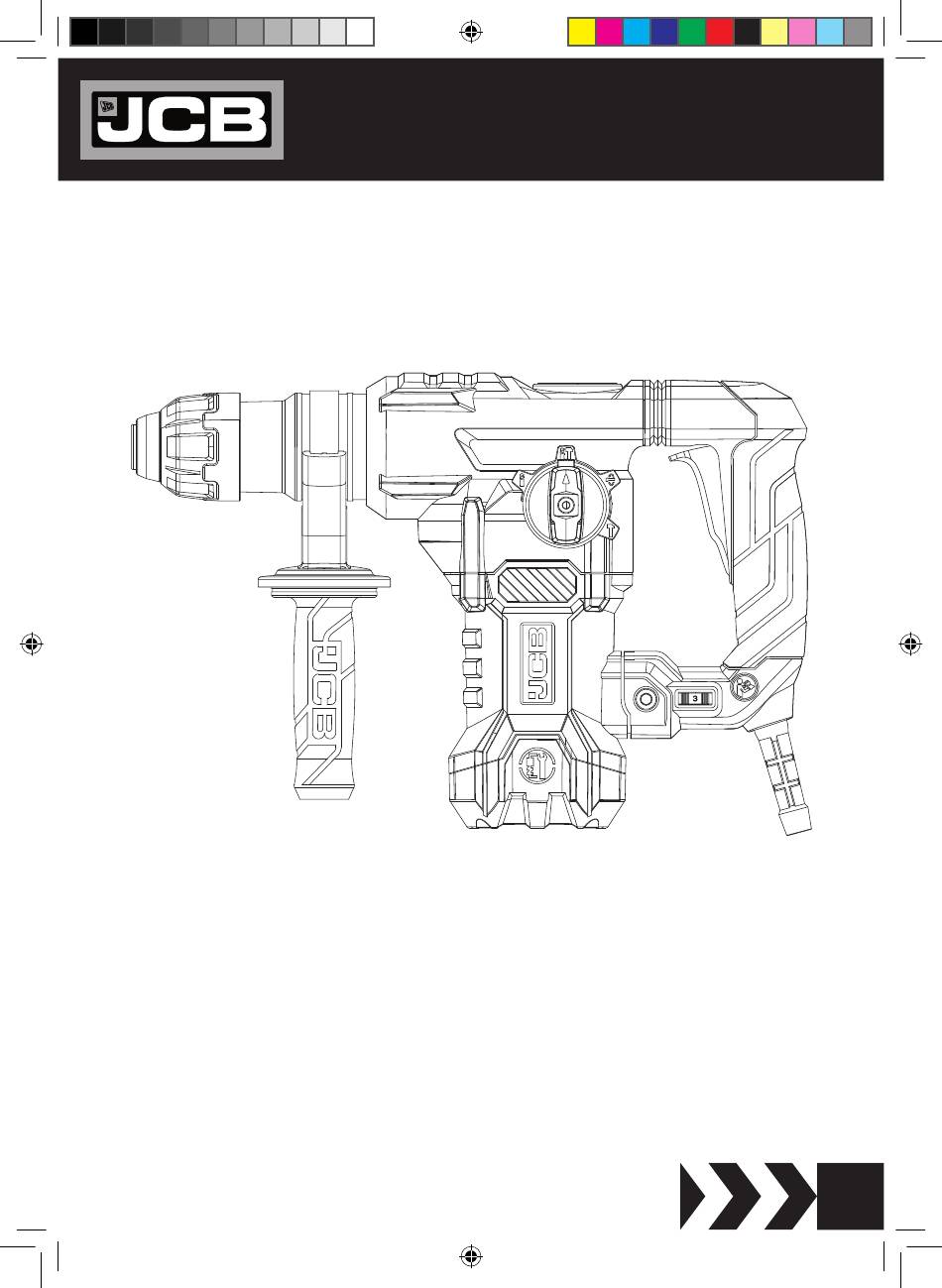

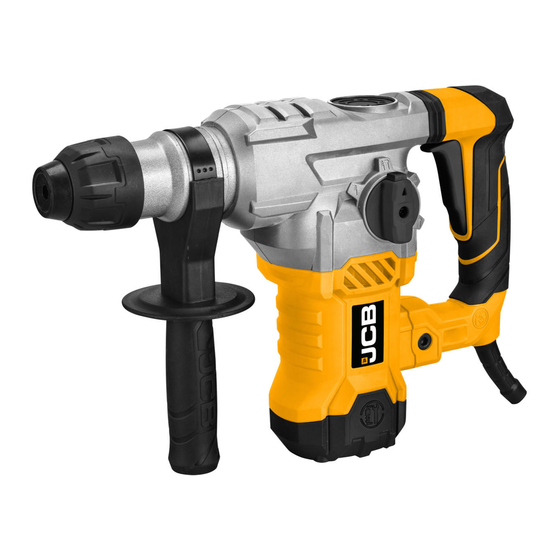

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-RH1500 Original Instructions IM-RH1500-EN Iss: 06/2021 2854 21-RH1500 Rotary Hammer Manual.indd 1 2854 21-RH1500 Rotary Hammer Manual.indd 1 08/07/2021 15:01 08/07/2021 15:01...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 2 2854 21-RH1500 Rotary Hammer Manual.indd 2 08/07/2021 15:01 08/07/2021 15:01...
-
Page 3: Table Of Contents
On/Off trigger Variable Speed Rotation Selector Maintenance Transport and Storage WARRANTY STATEMENT Terms & Conditions EU/UK DECLARATION OF CONFORMITY 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 3 2854 21-RH1500 Rotary Hammer Manual.indd 3 08/07/2021 15:01 08/07/2021 15:01... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 4 2854 21-RH1500 Rotary Hammer Manual.indd 4 08/07/2021 15:01 08/07/2021 15:01... -
Page 5: Power Tool Use And Care
Such preventive safety measures reduce the risk of starting the power tool accidentally. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 5 2854 21-RH1500 Rotary Hammer Manual.indd 5 08/07/2021 15:01 08/07/2021 15:01... -
Page 6: Tool Specific Safety Warnings
At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 6 2854 21-RH1500 Rotary Hammer Manual.indd 6 08/07/2021 15:01 08/07/2021 15:01... - Page 7 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 7 2854 21-RH1500 Rotary Hammer Manual.indd 7 08/07/2021 15:01 08/07/2021 15:01...
-
Page 8: Component List
COMPONENT LIST SDS DRILL CHUCK VARIABLE SPEED SWITCH SIDE HANDLE MODE SELECTOR ANTI-VIBRATION SYSTEM SOFT GRIP ON/ OFF TRIGGER 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 8 2854 21-RH1500 Rotary Hammer Manual.indd 8 08/07/2021 15:01 08/07/2021 15:01... -
Page 9: Technical Data
A-Weighted Sound Level (LwA) 99.0dB (A) & K 3 dB (A) Wear ear protection when sound pressure is over 80 dB(A) 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 9 2854 21-RH1500 Rotary Hammer Manual.indd 9 08/07/2021 15:01 08/07/2021 15:01... -
Page 10: Vibration Information
THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 10 2854 21-RH1500 Rotary Hammer Manual.indd 10 08/07/2021 15:01 08/07/2021 15:01... -
Page 11: Operating Instructions
Push and rotate the dust-free tool into the tool holder as far as it will go. The tool will lock automatically. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 11 2854 21-RH1500 Rotary Hammer Manual.indd 11 08/07/2021 15:01 08/07/2021 15:01... -
Page 12: Rotation Selector
The hammer drilling function allows more effective drilling into hard, brittle materials such as concrete, brick and stone. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 12 2854 21-RH1500 Rotary Hammer Manual.indd 12 08/07/2021 15:01 08/07/2021 15:01... -
Page 13: Maintenance
If the tool shall remain unused for any length of time, it should be stored in the original packaging. 21-RH1500 Instruction & User Manual 2854 21-RH1500 Rotary Hammer Manual.indd 13 2854 21-RH1500 Rotary Hammer Manual.indd 13 08/07/2021 15:01 08/07/2021 15:01... -
Page 14: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. - Page 15 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes.
-
Page 16: Eu/Uk Declaration Of Conformity
UK Product Code No. JCB-RH1500, 21-RH1500 DECLARATION: EU Product Code No. JCB-RH1500-E Factory Reference No. Z1C-DS-32MB Yellow and Black Tools Ltd. (T/A: JCB Tools) Name: IDENTIFICATION DETAILS OF Unit 55 Romsey Industrial Estate, Greatbridge Road Address: MANUFACTURER: Romsey, Hampshire SO51 0HR...
