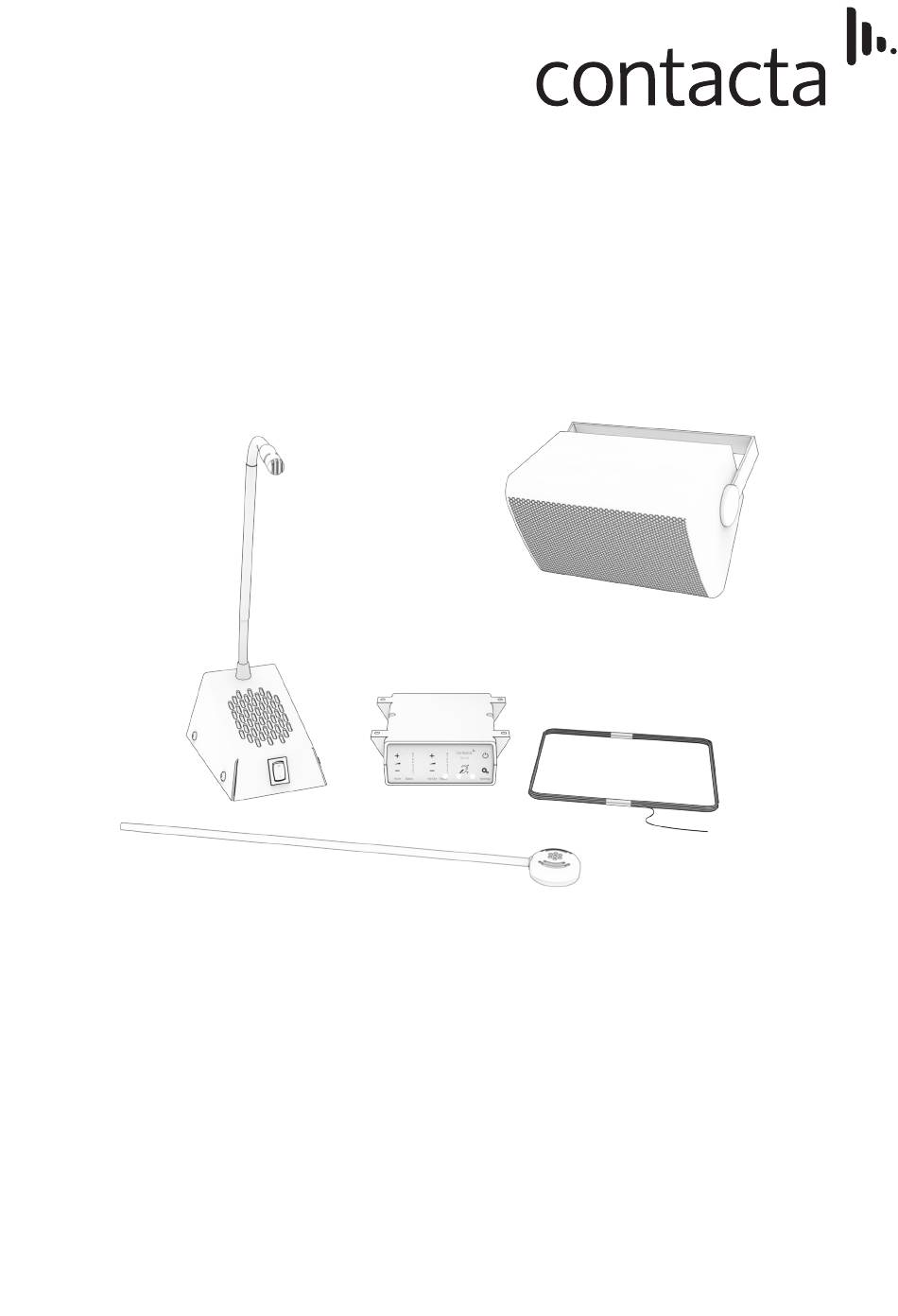

- Page 1 Window Intercom System STS-K080-IP Installation & User Guide March 2023...
- Page 2 Important Safety Instructions Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 3 Safety Precautions Thank you for purchasing this system. Before using, please read the following guide to ensure correct usage. After reading, store this guide in a safe place for future reference. Incorrect handling of this product could possibly result in personal injury or physical damage.
-
Page 4: Table Of Contents
Connections Amplifier Setup Using the System Troubleshooting Contacta has a policy of continuous product development, and therefore small specification changes may not be reflected in this manual. Images, labels, packaging, accessories and product colours are subject to change without notice. -
Page 5: Product Overview

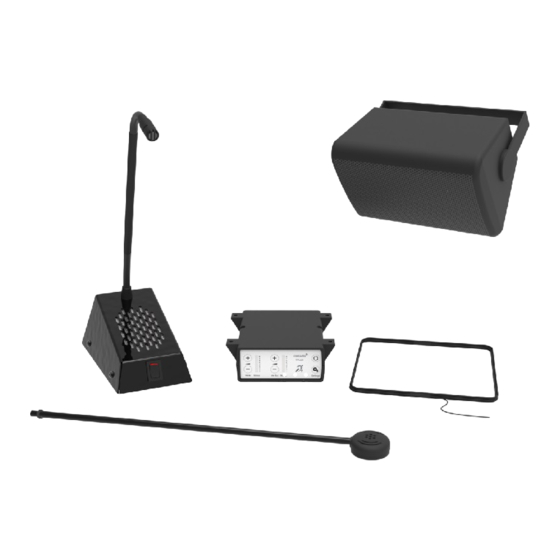

Product Overview Window intercom systems provide assistance for clear communication where normal speech is impaired by use of glass, a security screen or other similar barriers. There is also a hearing loop facility included which provides additional assistance for hearing device wearers. Components 1. -
Page 6: Tools Required
Tools Required Your basic toolkit will include: • Screwdrivers (Flat or Blade 2.5mm • Pliers and Phillips Head PH2) • Tape Measure • Battery or Mains Drill • Pencil or Marker Pen • Drillbits: 2mm, 3mm, 5mm and 7mm • Torch •... -
Page 7: Installation Instructions
Installation Instructions Install the amplifier, staff unit SU1, overhead loudspeaker and microphone in the order described below. If you have followed the steps closely and the system is not functioning as intended, consult Troubleshooting on page 17. Amplifier and Staff Unit SU1 Installation Fixing points Place the amplifier under the staff counter, ensuring that it will not obstruct staff when they are sitting. -
Page 8: Staff Loudspeaker Unit And Amplifier Setup
Staff Loud Speaker Unit and Amplifier Place the Staff Loudspeaker Unit on the staff side of the counter top, ensuring that it does not cause an obstruction and is as close to staff as possible. 2. Use the cable management hole to run the Staff Loudspeaker Unit cable back to the amplifier. - Page 9 S80 IP54 Speaker Installation The IP54 speaker can be used in outdoor environments and can be installed either overhead or to the side: The S80 speaker is provided with a bracket, use the bracket as a guide to mark out the fixing points.
- Page 10 Take the supplied 2 pin euroblock connector and install this onto the stripped cable ends. Route the cable back to the amplifier. If the speaker cable is not long enough for installation use the provided extension cable to provide additional length to reach the amplifiers install location. Take care to seal any outdoor speaker connections from moisture ingress.
- Page 11 Under-Counter Hearing Loop Aerial Installation The aerial should be fixed under the desk-top or counter centrally on the customer side, one half mounted horizontally under the counter and the other half mounted vertically, facing the customer (as in the first scenario below). Position the aerial under the counter using either the provided P-clips or another fixing method of your choice.
-
Page 12: Connections
Connections Trim the cables if necessary (apart from the power supply) to the required length for connection to the back of the amplifier. Bare approximately 6mm of the cable ends for connection to the 2 pin plugs (see diagram below). Rear Amplifier Connections Connect all green plugs to the back of the amplifier, observing the correct locations printed about the sockets (see below diagram). -
Page 13: Amplifier Setup
Amplifier Setup Our amplifier provides full open duplex communication and is compatible with all of our speech transfer systems. It features individual displays for staff or customer adjustments and individual fault lights for easy fault diagnosis. Overview of Front Panel Buttons Volume In Volume Out Increase and decrease... - Page 14 Setup Areas Whilst in engineers mode, there are 3 editable setup areas. You will always enter setup area 1 first. The green Volume In LED bar will flash to indicate which setup area you are in. Setup Area 1: Maximum Volume Adjustment (LED 1 flashes) Increase maximum Increase maximum customer volume level...
-
Page 15: Using The System
Using the System When powered and in normal operational mode the amplifier will display Volume In LED 1 as steady green. When the amplifier is switched off using the On/Off button, audio is muted and LEDs are not illuminated; press any button to turn the amplifier on again. To adjust the staff volume level: Press and hold the Volume In (+) or (-) buttons to increase or decrease the level. - Page 16 Fault Diagnosis LEDs • Volume In LED 8 will stay red if there is a fault with the staff microphone. • Volume Out LED 8 will stay red if there is a fault with the customer microphone. • Volume In LED 8 will flash red if there is a fault with the loop (i.e.
-
Page 17: Troubleshooting
1) Switch off any air con systems, desktop 1) Ambient noise in area is too high. Unit does not go fans and or computers to reduce ambient into power saving noise. mode. If no action is successful please seek assistance from your distributor or a Contacta installer. - Page 18 www.contacta.co.uk...
- Page 19 www.contacta.co.uk...
- Page 20 Contact your local distributor for further information. www.contacta.co.uk...
