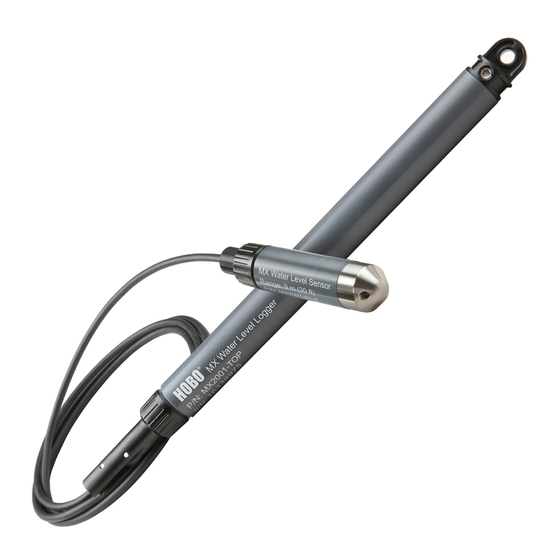

HOBO® MX Water Level Logger (MX2001) Quick Start Guide
Before you begin: After completing steps 1–4, we recommend that you perform a trial run of steps 5 through 11 before deploying the
logger.
IMPORTANT: When assembling the logger or attaching the cable, make sure the O-rings and mating housing surfaces are clear of any
debris. Any contamination of these surfaces can cause leaks that will lead to logger failure.
1
Install the batteries in the top end. Unscrew the end cap and pull out the board. Apply a small amount of the fresh dielectric
grease (included) to the battery terminals. Insert the included two AA batteries observing polarity as shown on the board.
Reinsert the board. Screw the cap back on until hand tight.
Top end
2
Connect the top end to the sensor end with the water level logger cable as shown here. The end of the cable with the longer
housing connects to the top end as shown below.
Sensor end
• Download HOBOconnect® to a phone or tablet from the App Store® or Google Play™.
3
• Download HOBOconnect to a Windows® computer from www.onsetcomp.com/products/software/hoboconnect.
4
Open the app. Enable Bluetooth® in your device settings if prompted.
Tap Devices in the app. The logger should appear in the list of devices. If it does not appear, make sure it is within range of your
5
phone, tablet, or computer. (Note that the serial number shown in the app is for the top end of the logger).
6
If you are ready to deploy the logger, place it in the deployment location. Refer to the logger manual at
www.onsetcomp.com/resources/documentation/19389-mx2001-manual for deployment guidelines. Otherwise, skip
deployment and complete the following steps as a test.
Tap the logger tile in the app to connect to the logger and tap Configure & Start to set up the logger.
7
19388-N MAN-QSG-MX2001
Unscrew end cap
Plug this portion of the cable with
the longer housing into the top end
and screw to tighten (hand tight).
Plug this portion of the cable with the shorter housing
into the sensor end and screw to tighten (hand tight).
Remove board and
install batteries
Top end
